Parker Compax3 User Manual

Parker EME
Setting up Compax3
192-120113 N08 C3I12T11 - December 2010
251
4.4.9.3 Installation enable of the ServoSignalAnalyzer
In this chapter you can read about:
Prerequisites ................................................................................................................. 251
Installation ..................................................................................................................... 251
Activation....................................................................................................................... 251
Prerequisites
 Compax3 with up-to-date controller board (CTP 17)
 Firmware version R06-0 installed
Installation
 Execution of the C3 ServoManager Setup (on CD)
 If the firmware is too old => update with the aid of the firmware from the CD
Activation
In order to being able to use the analysis functions in the frequency range (for
example frequency response measurement), a software activation is required.
The activation is only valid for the PC on which it was performed!
Caution!: If the PC disposes of network adapters which are removed at times (e.g.
PCMIA cards or notebook docking stations), these adapters should be removed
before generating the key!
In order to activate the ServoSignalAnalyzer, please follow these steps:

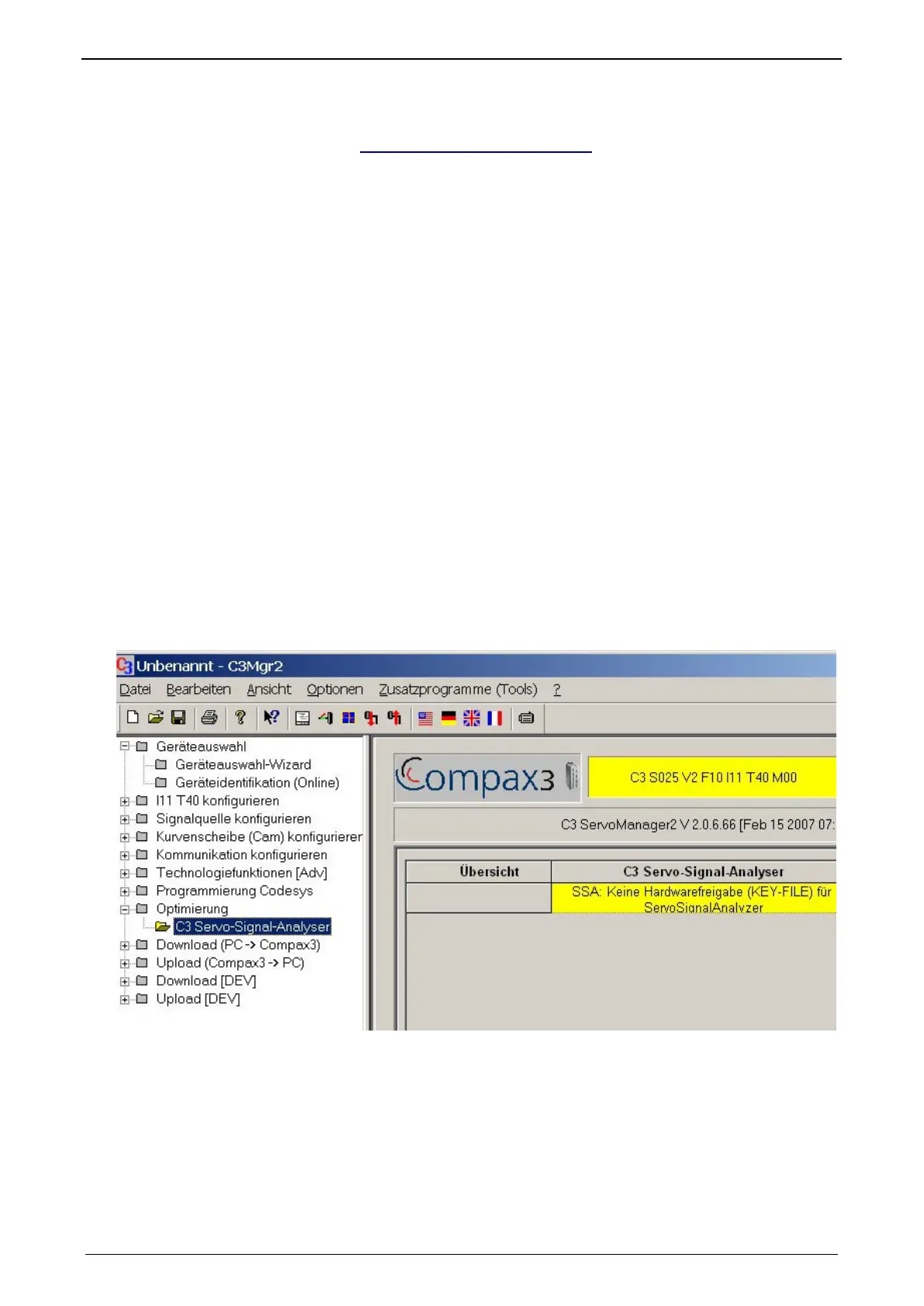

 Start the Compax3 ServoManager.
Please observe:

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
