Compax3 device description
C3I12T11
72
192-120113 N08 C3I12T11 - December 2010
3.9.2. Mounting and dimensions PSUP/C3M
During operation, the device radiates heat (power loss). Please provide for a
sufficient mounting distance below and above the device in order to ensure free
circulation of the cooling air. Please do also respect the recommended distances of
other devices. Make sure that the mounting plate is not exhibited to other
temperature influences than that of the devices mounted on this very plate. The
devices must be mounted vertically on a level surface. Make sure that all devices
are sufficiently fixed.
3.9.2.1 Mounting and dimensions PSUP10/C3M050D6,
C3M100D6, C3M150D6
The devices are force-ventilated via a ventilator fan fixed to the lower part of
the heat dissipator!

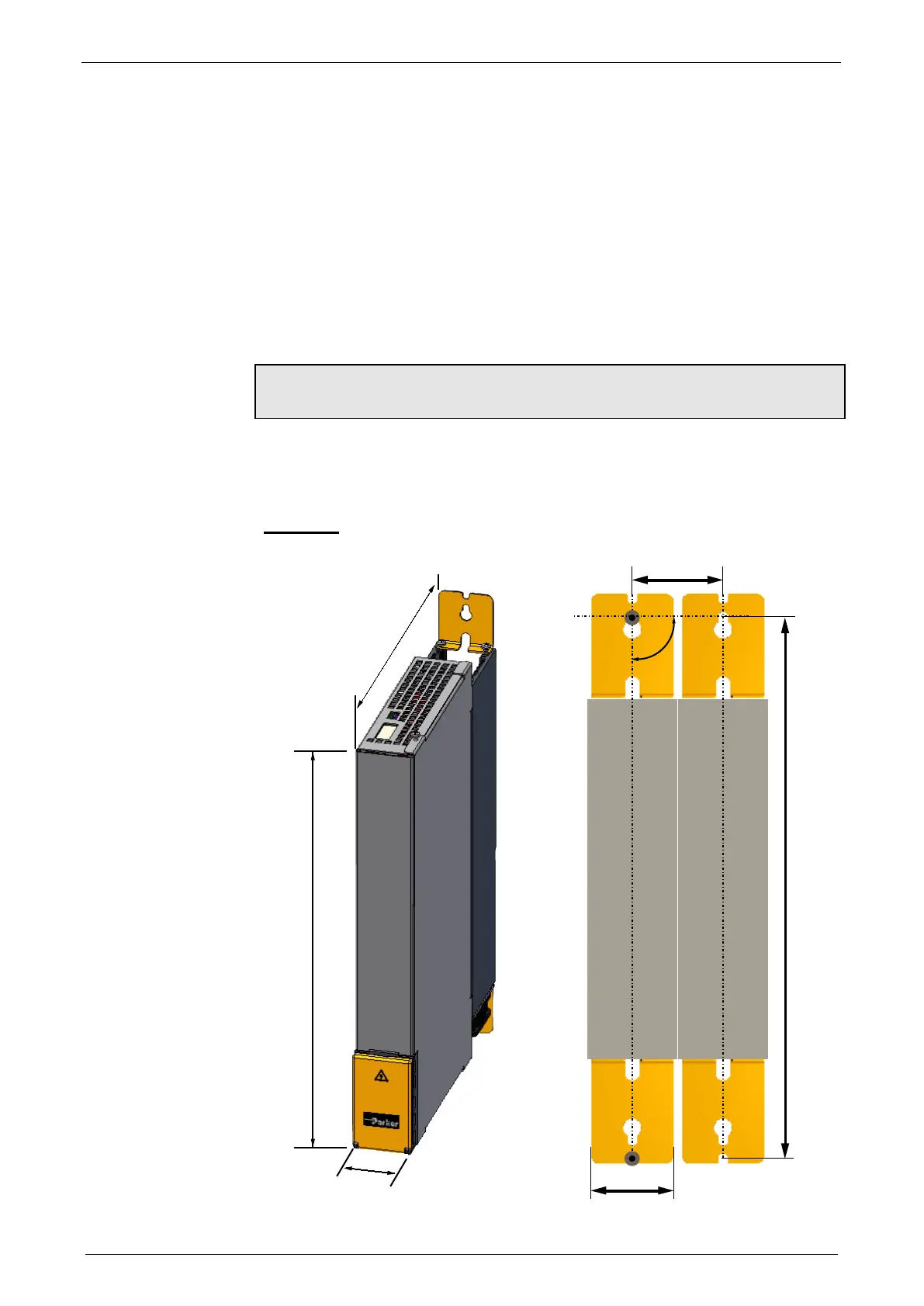

Mounting spacing: At the top and below: at least 100mm
Information on
PSUP10D6/C3M050D6, C3M100D6, C3M150D6
Mounting:
2 socket head screws M5
50mm
360mm
263mm
46mm
50,5mm
400mm
90°
Tolerances: DIN ISO 2768-f
Ventilation:
