10.2.1.1 Mains filter NFI01/01
for Compax3 S025 V2 and Compax3 S063 V2

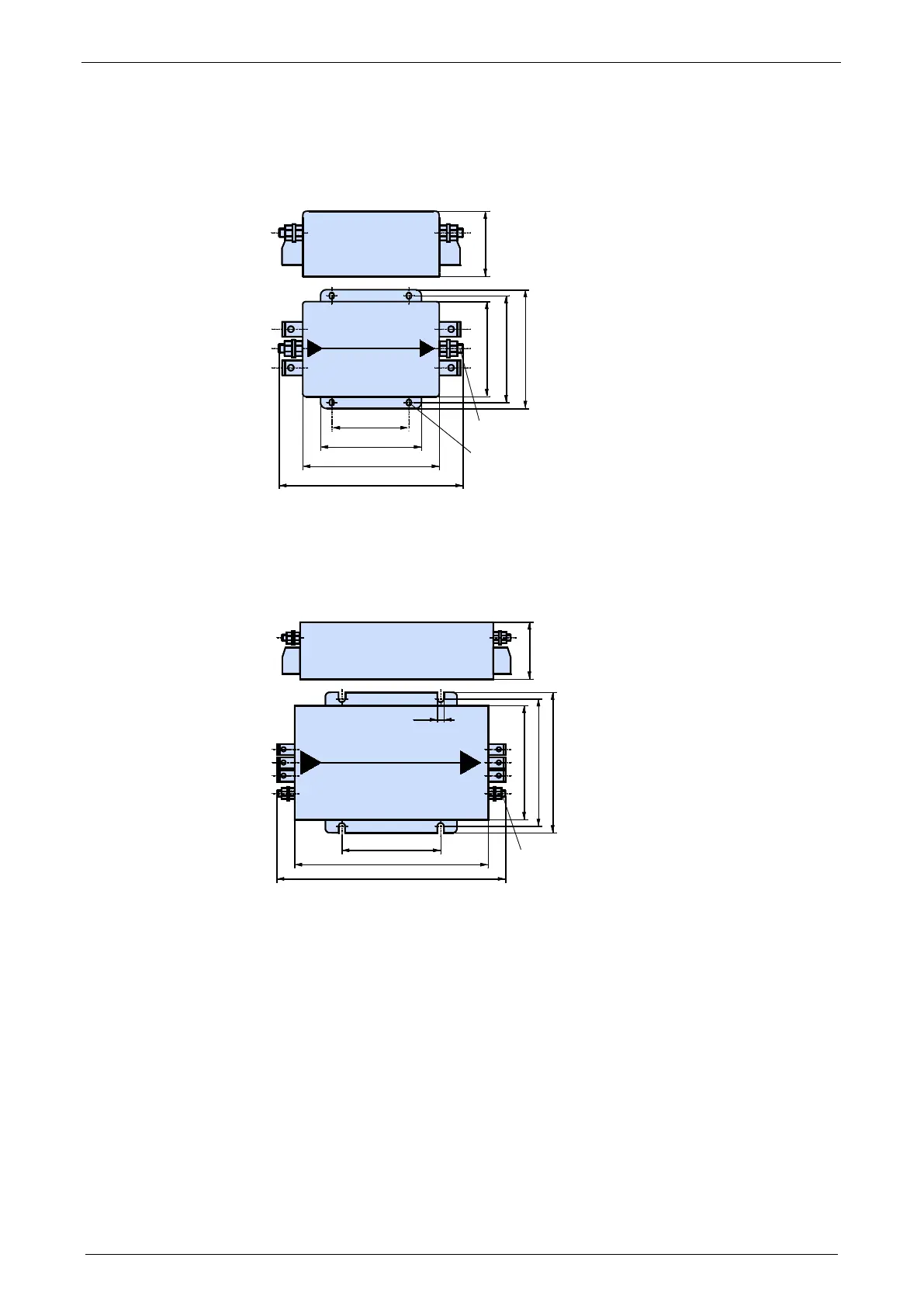

Dimensional drawing:
50,8±0,3
85,4
116
139
79,5
101
88,9±0,4
55,5
Ø 4
5,2 x 4
L
I
N
E
L
O
A
D
10.2.1.2 Mains filter NFI01/02
for Compax3 S0xx V4, Compax3 S150 V4 and Compax3 S1xx V2
Dimensional drawing:
65
6,6
177
151
70±0,3
140
125
111
Ø 4
L
I
N
E
L
O
A
D

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
