Resolution
The less precise the resolution, the higher the quantization noise on the velocity
signal.
Noise
The feedbacks have different levels of analog noise, which have a negative effect
on the control. The noise can be dampened with the aid of filters in the actual value
acquisition, however at the cost of the controller bandwidth.

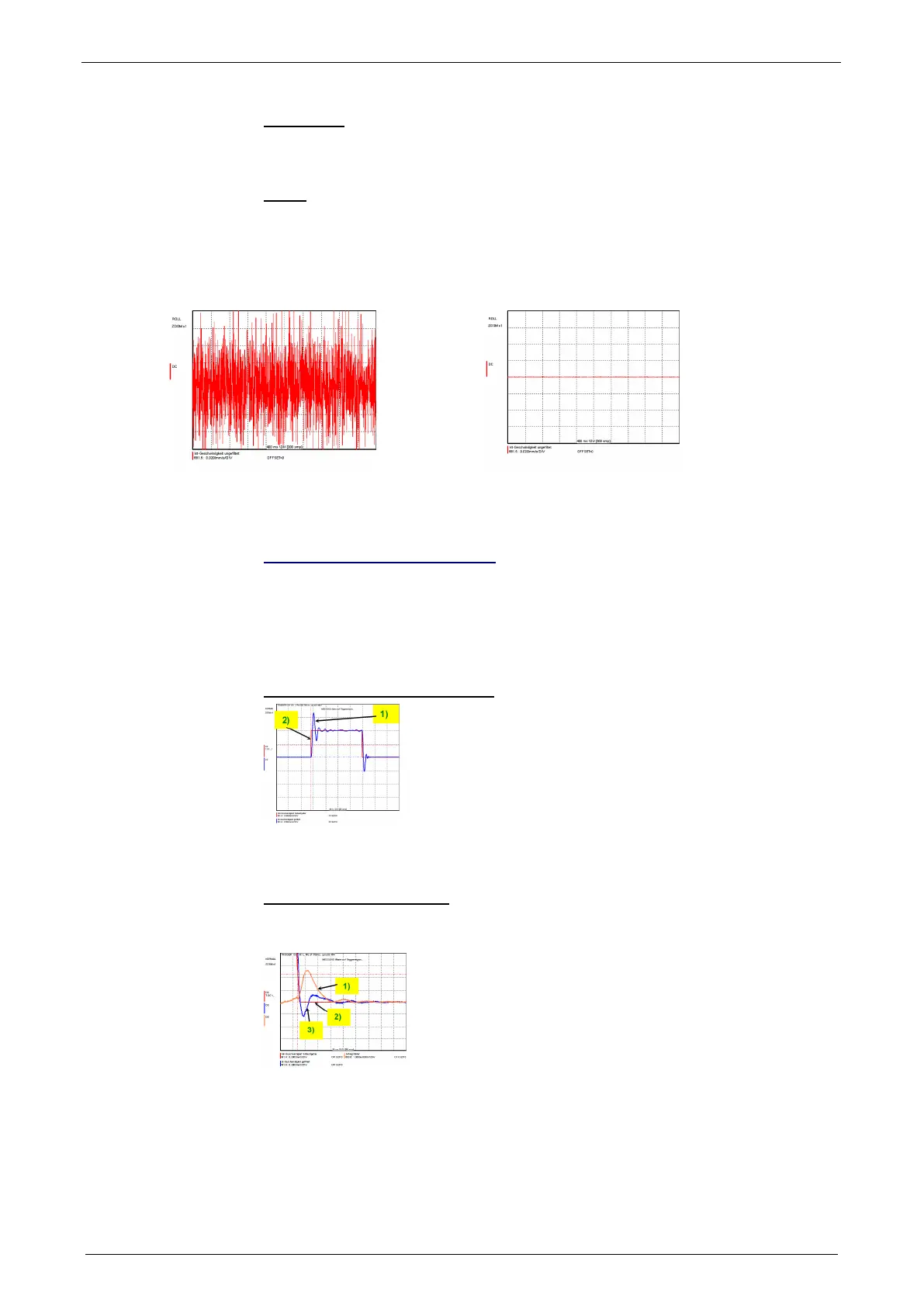

For comparison, the noise of the actual velocity value at standstill of two different
feedbacks is displayed.
Resolver: 1 period/revolution SinCos: 1024periods/revolution
Typical problems of a non optimized control
In this chapter you can read about:
Too high overshoot on velocity ...................................................................................... 180
Increased following error ............................................................................................... 180
Instable behavior ........................................................................................................... 181
Upon first setup of a control, the controller is normally not able to meet all
application requirements at once. Typical problems may be:
Too high overshoot on velocity
1) Actual velocity
2) Setpoint velocity
Increased following error
Increased following error when approaching the target position or the reduction of
the following error takes too long
1) Following error
2) Setpoint velocity
3) Actual velocity
