Parker EME
Compax3 device description
192-120113 N08 C3I12T11 - December 2010
73

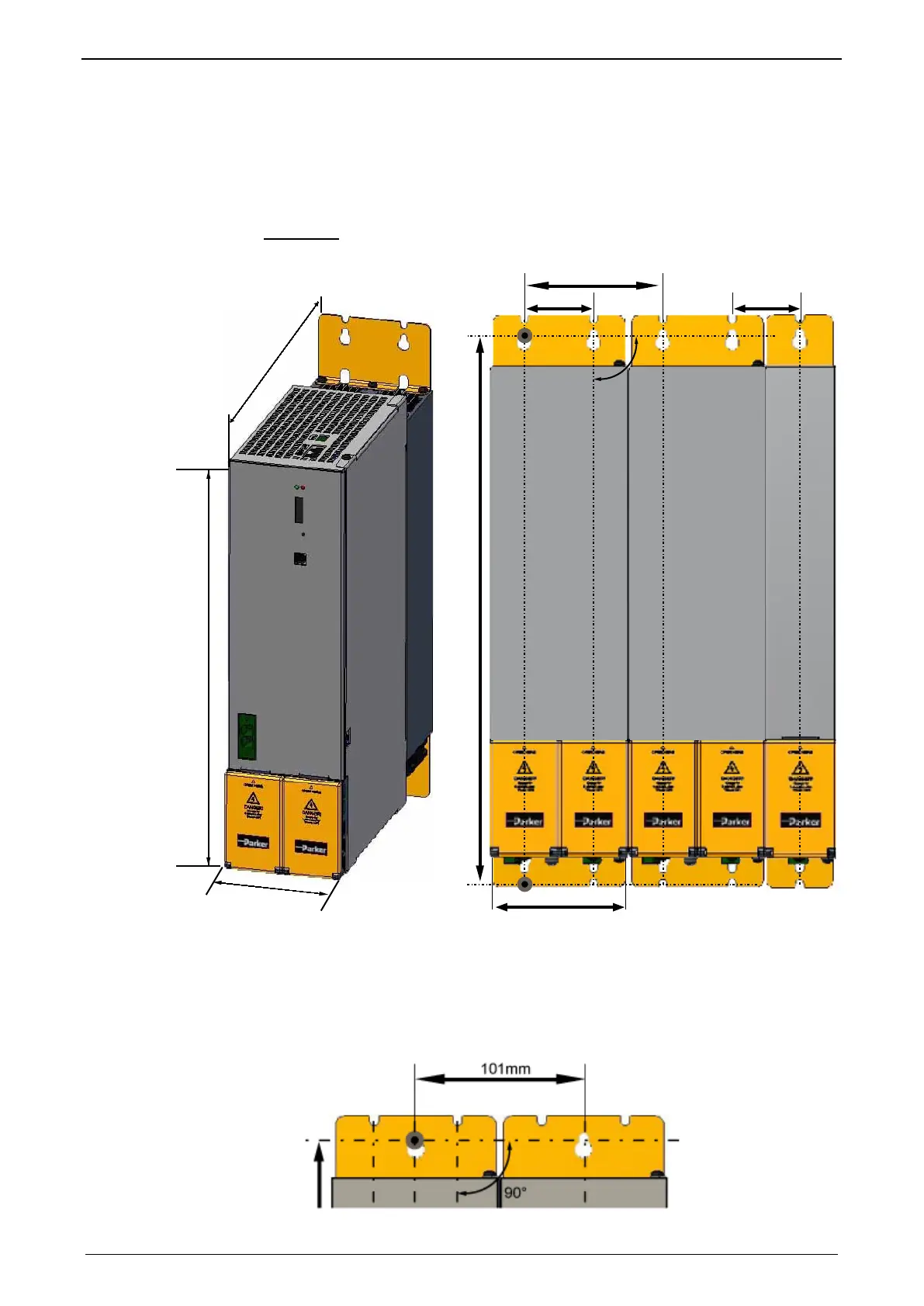

3.9.2.2 Mounting and dimensions
PSUP20/PSUP30/C3M300D6
Information on
PSUP20/PSUP30/C3M300D6
Mounting:
4 socket head screws M5
100mm
360mm
263mm
96mm
400mm
90°
50,5mm 50,5mm
101mm
Tolerances: DIN ISO 2768-f
3.9.2.3 With upper mounting, the housing design may be
different
Mounting:
3 socket head screws M5
