Parker Compax3 User Manual

Setting up Compax3
C3I12T11
278
192-120113 N08 C3I12T11 - December 2010
By clicking with the left mouse button on the legend, this can be shifted by 90°.
By clicking on the color bar, the color of the respective graph can be modified.

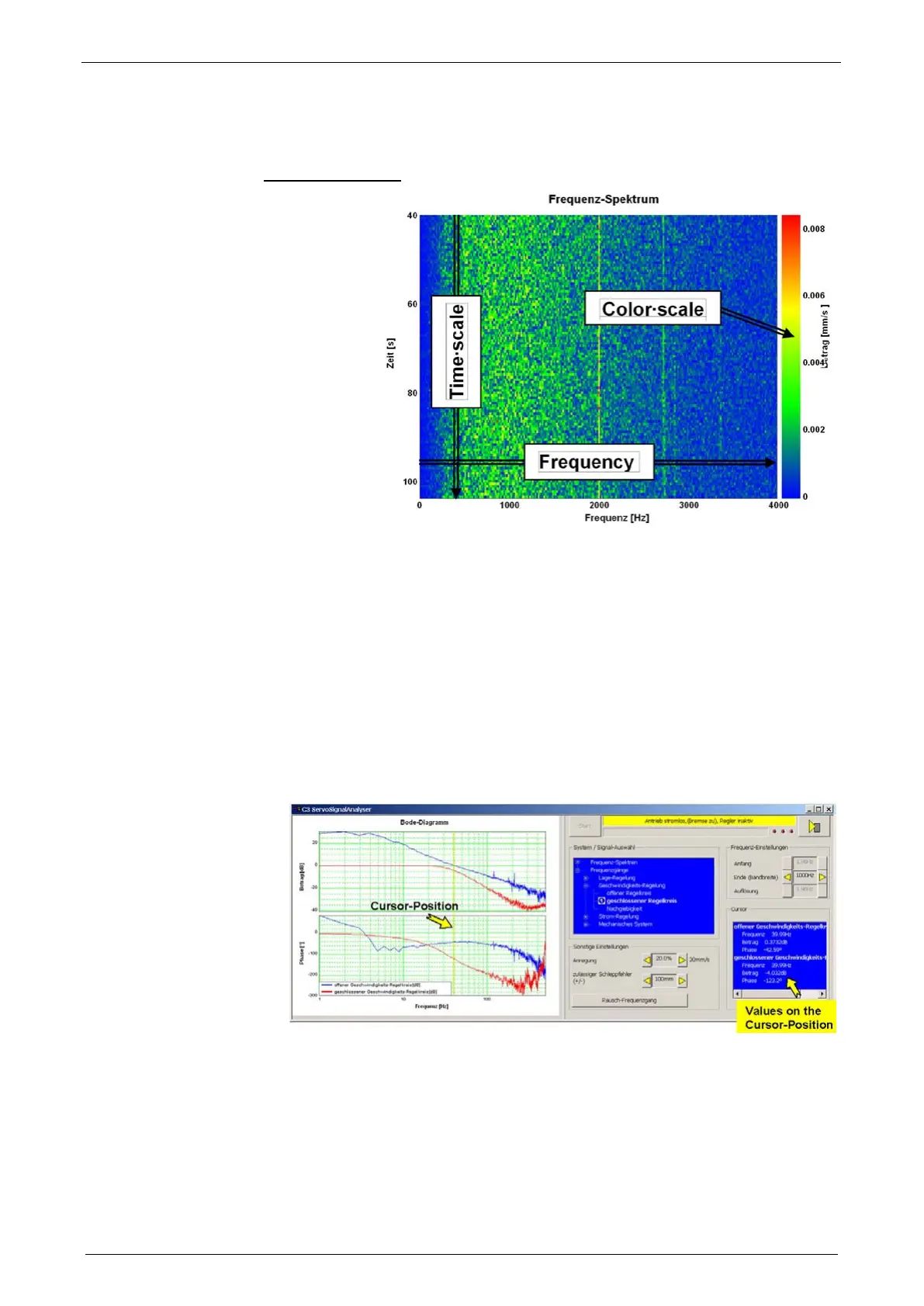

Cascade diagrams
By clicking with the left mouse button on the color scale, you can change between
autoscale mode and fixscale mode.
AutoScaleMode:
In this mode, the scaling of the color scale is adapted automatically so that all
values can be displayed.
FixScaleMode:
Here, the scaling is fixed.
=> If, for instance, a considerably higher value than before is to be displayed, it is
simply displayed like the former maximum (red).
Display of the measurement point at the cursor position
The cursor is set by clicking on the left mouse button. All measurement data of the
selected cursor position (frequency) are displayed in the "cursor" operating field.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
