Parker Compax3 User Manual

Parker EME
Compax3 Accessories
192-120113 N08 C3I12T11 - December 2010
349

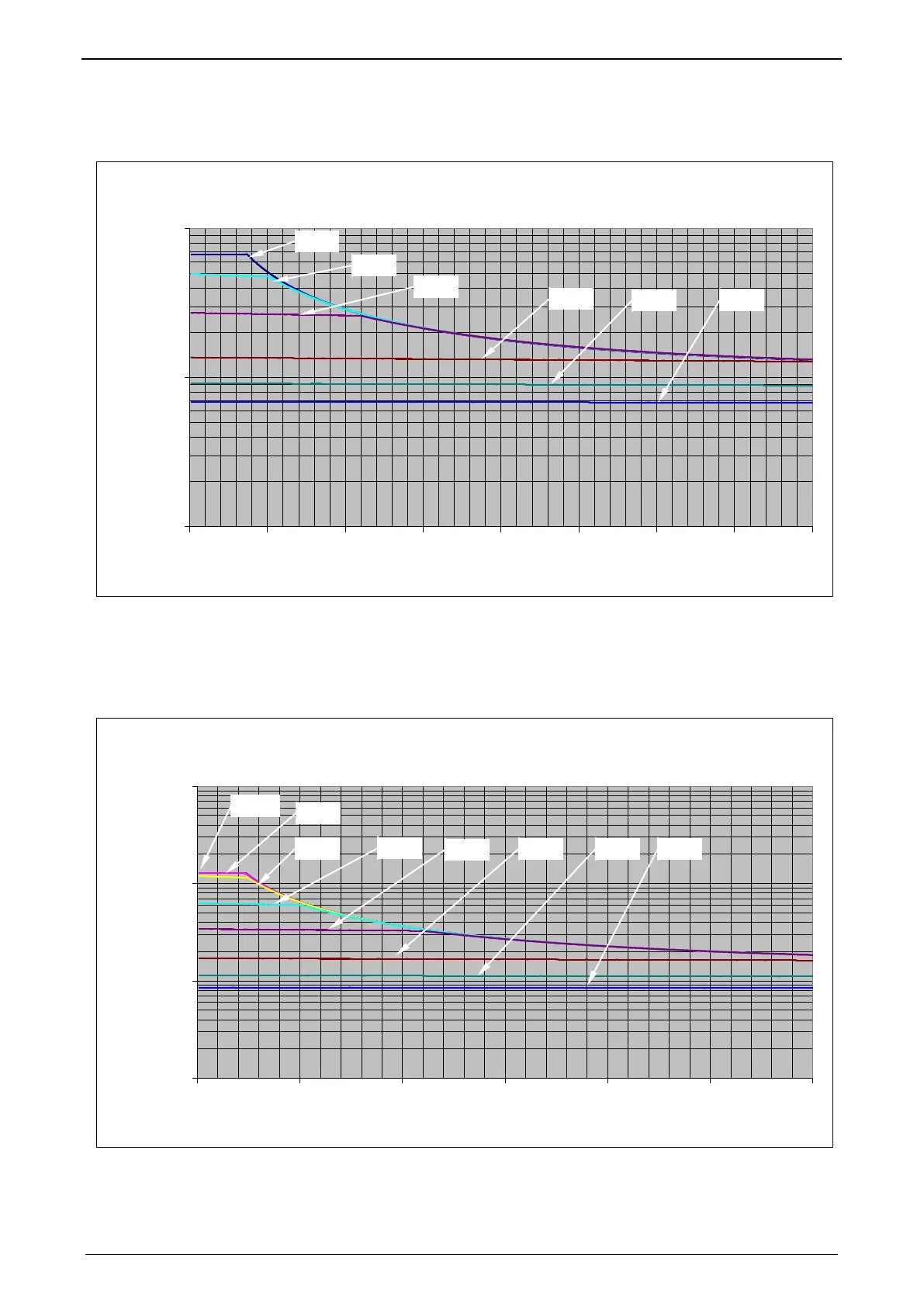

10.4.1.4 Permissible braking pulse power: BRM09/01 with
C3S100V2
BRM09/01 (230V_3AC)
100
1000
10000
0 0,5 1 1,5 2 2,5 3 3,5 4
Braking time [s]
PBdyn [W]
10.4.1.5 Permissible braking pulse power: BRM10/01 with
C3S150V4
BRM10/01 (400/480V)
100
1000
10000
100000
0 0,5 1 1,5 2 2,5 3
Braking time [s]
PBdyn [W]
F=10
F=20
F=5
F=2
F=1
F=0.5
F=10
F=5
F=2
F=1
F=0.5
F=100
F=50
F=20

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
