3.9 Installation and dimensions Compax3
In this chapter you can read about:
Mounting and dimensions Compax3S .............................................................................. 68
Mounting and dimensions PSUP/C3M ............................................................................. 72
Mounting and dimensions C3H ........................................................................................ 74
3.9.1. Mounting and dimensions Compax3S

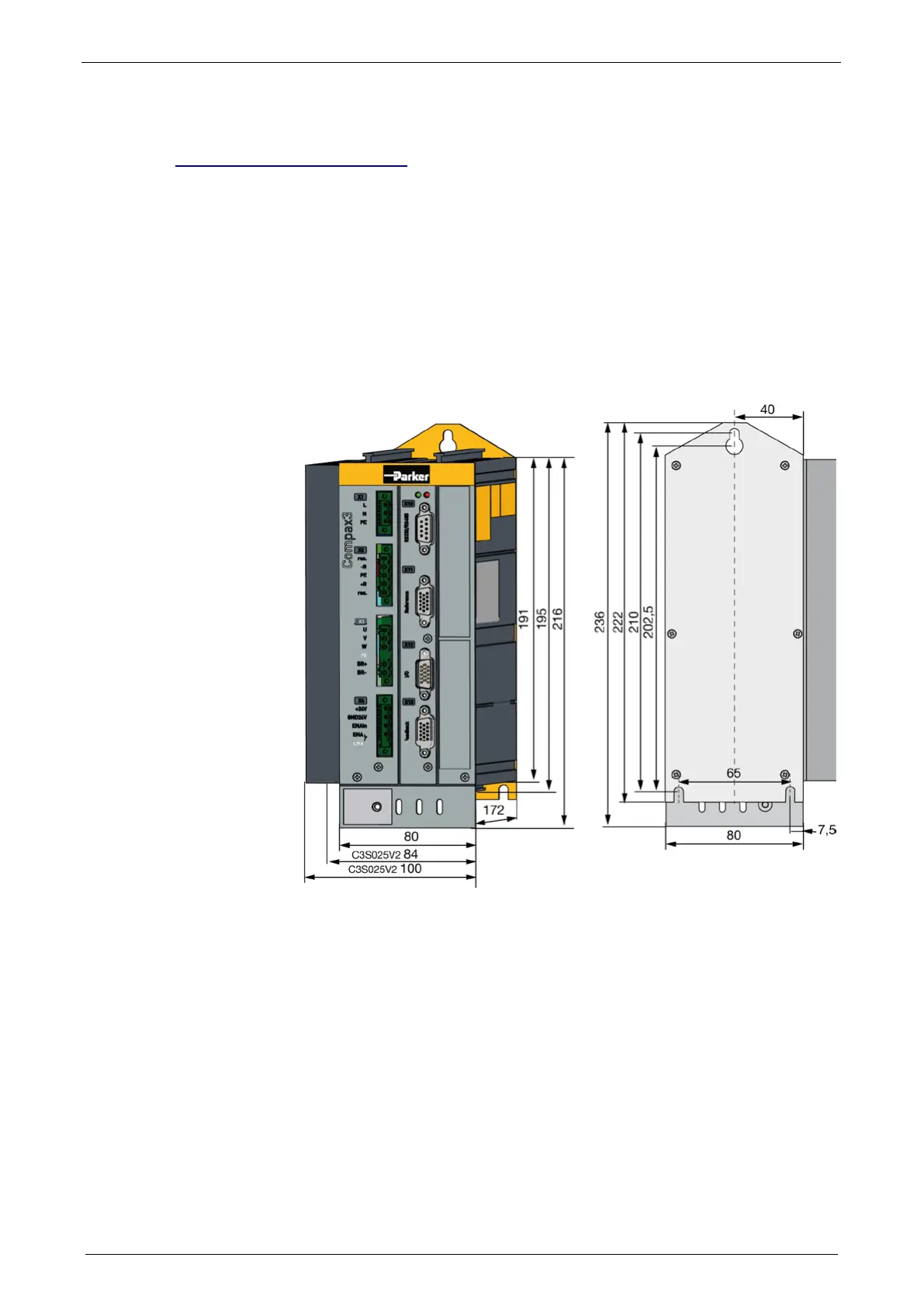

3.9.1.1 Mounting and dimensions Compax3S0xxV2
Mounting:
3 socket head screws M5
Stated in mm
Please respect an appropriate mounting gap in order to ensure sufficient
convection:
 At the side: 15mm
 At the top and below: at least 100mm
