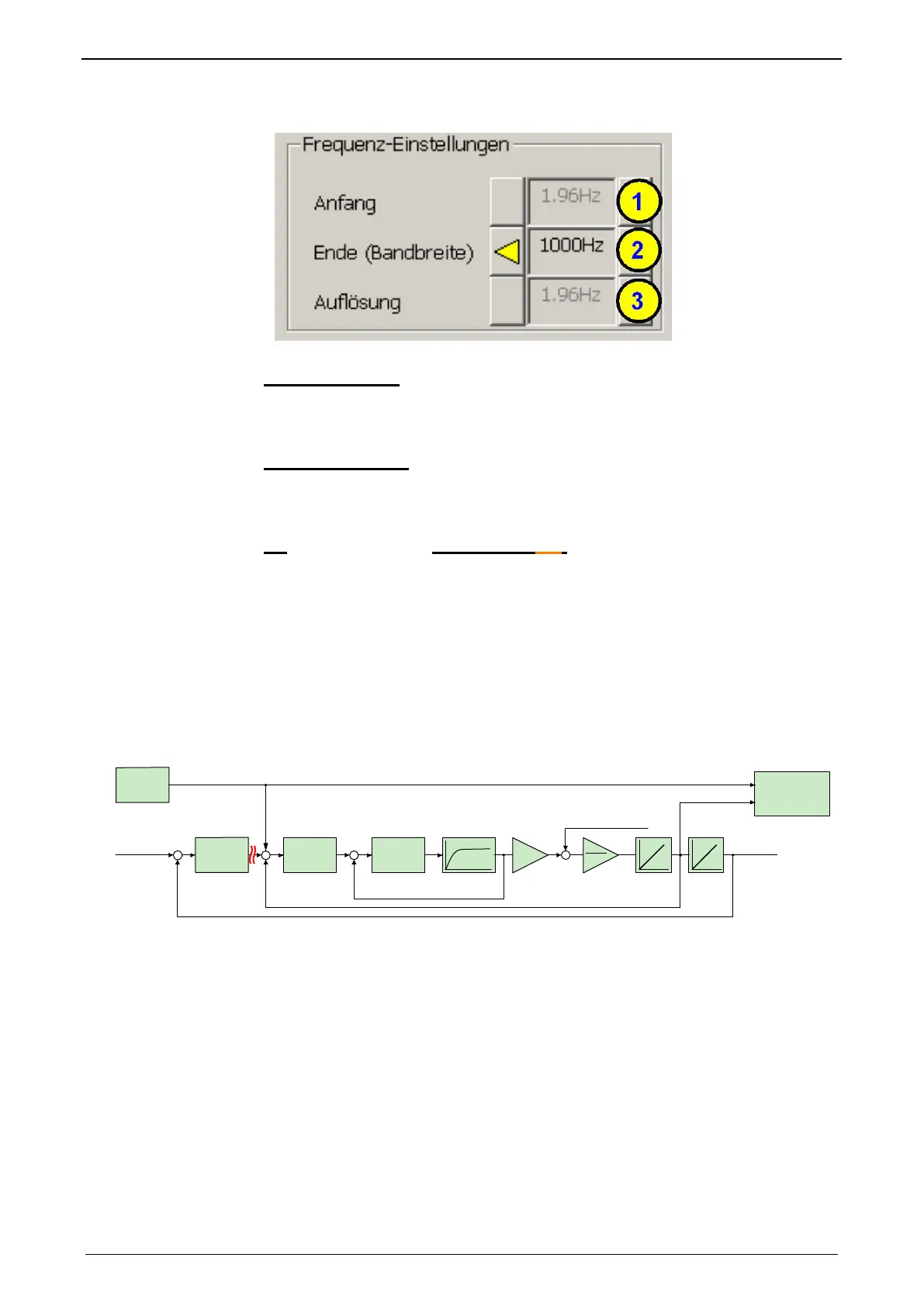

Frequency settings
(1) start frequency
This is the smallest frequency at which is still measured. During the measurement
of frequency spectrum and noise frequency response this results automatically
from the bandwidth and is only displayed as an information.
(2) End (bandwidth)
This corresponds to the highest frequency which is measured. Start frequency as
well as the frequency resolution can be varied with the aid of the bandwidth for
frequency spectrum and noise frequency response.
(3)
Frequency resolution (see on page 256)
During the measurement of frequency spectrum and noise frequency response
this results automatically from the bandwidth and is only displayed as an
information.
Speed control
Closed velocity control
Shows the dynamic behavior of the closed velocity control.
=> How a signal on the velocity demand value is transmitted to the velocity actual
value.
current controlled
system
position
controlled
system
actual current
actual velocity
actual
position
actual position
desired
position
Position
controller
Velocity
controller
Current
controller
TeM
Frequency
response
measurement
Signal
generator
- - -
f: disturbance torque
Kt
2*Pi*J
1
velocity controlled
system
Signal generator Signal Generator
Position controller Lageregler
actual position Lageistwert
desired position Lagesollwert
Velocity controller Geschwindigkeitsregler
actual velocity Geschwindigkeitsistwert
Current controller Stromregler
actual current Stromistwert
current controlled system Stromregelstrecke
f: disturbance torque Störmoment
velocity controlled system Geschwindigkeitsregelstrecke
position controlled system Lageregelstrecke
Frequency response measurement Frequenzgangmessung
