Parker Compax3 User Manual

Setting up Compax3
C3I12T11
252
192-120113 N08 C3I12T11 - December 2010
 Select the Select the C3 ServoSignalAnalyzer in the function tree under
optimization.

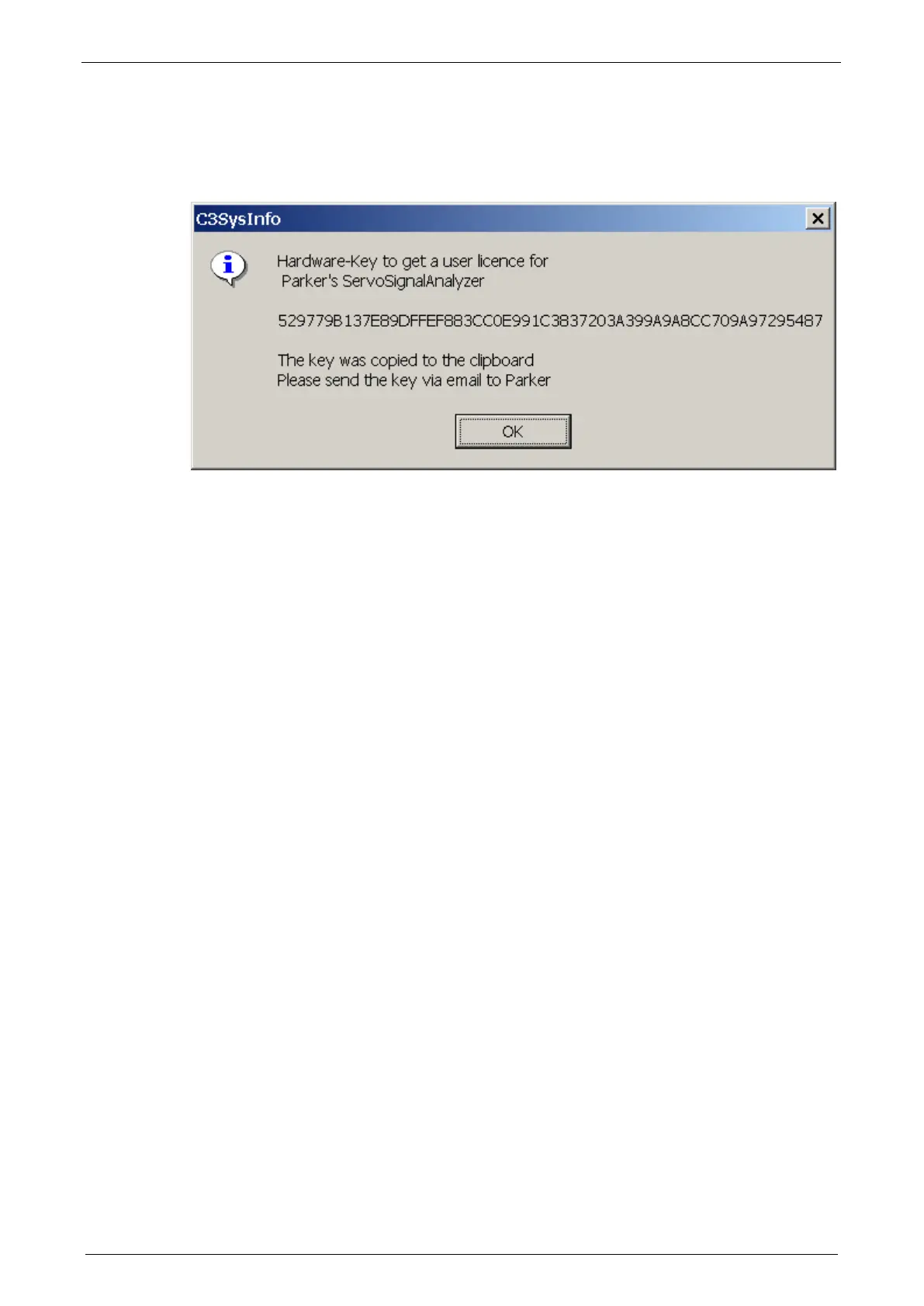

In the right part of the window you can see the note that no key file was found.
 A double click on the preselected C3 ServoSignalAnalyzer will generate a
system-dependent key.
 Acknowledge with OK and enter the key, which is on your clipboard, into an e-
mail, which you please send to eme.ssalicence@parker.com
(mailto:eme.ssalicence@parker.com).
 After receipt of the reply, copy the attached file "C3_SSA.KEY" into the C3
ServoManager directory (C:\\Programs\\Parker Hannifin\\C3Mgr2\\).
 => the software is activated.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
