83

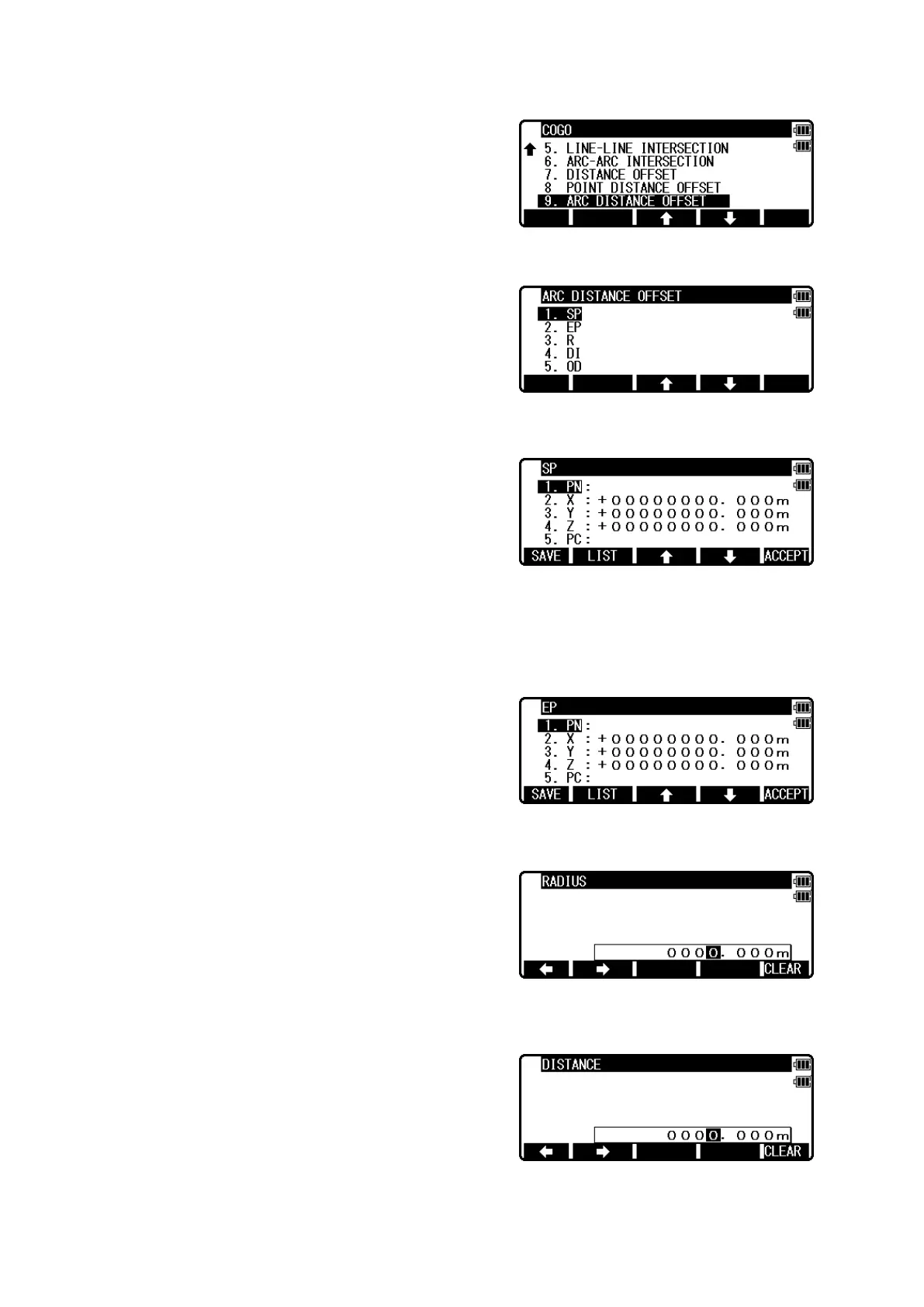

Select 1.COGO and press [ENT] to view the COGO
screen.
Select the 9. ARC DISTANCE OFFSET and press
[ENT] to view ARC DISTANCE OFFSET
screen.
Select 1. SP and press [ENT] to view SP screen.
Input PN (Point Name), X, Y, Z, and PC (Point Code) of SP point or import from the
memory of rectangular coordinate as SP by [F2][LIST].
If you finish the input of SP value, press
[F5][ACCEPT]. Then you go to EP input screen.
Input EP data like an input of SP.
If you finish input of EP, press [F5][ACCEPT].
Then you go to RADIUS input screen.
Input RADIUS (Radius of circle).
If you finish the input of RADIUS, press [ENT].
Then you go to DISTANCE input screen.
