11 Expansions and Accessories

Installation manual for PMC tendo DD5/PMCprimo Drive3 Page 111

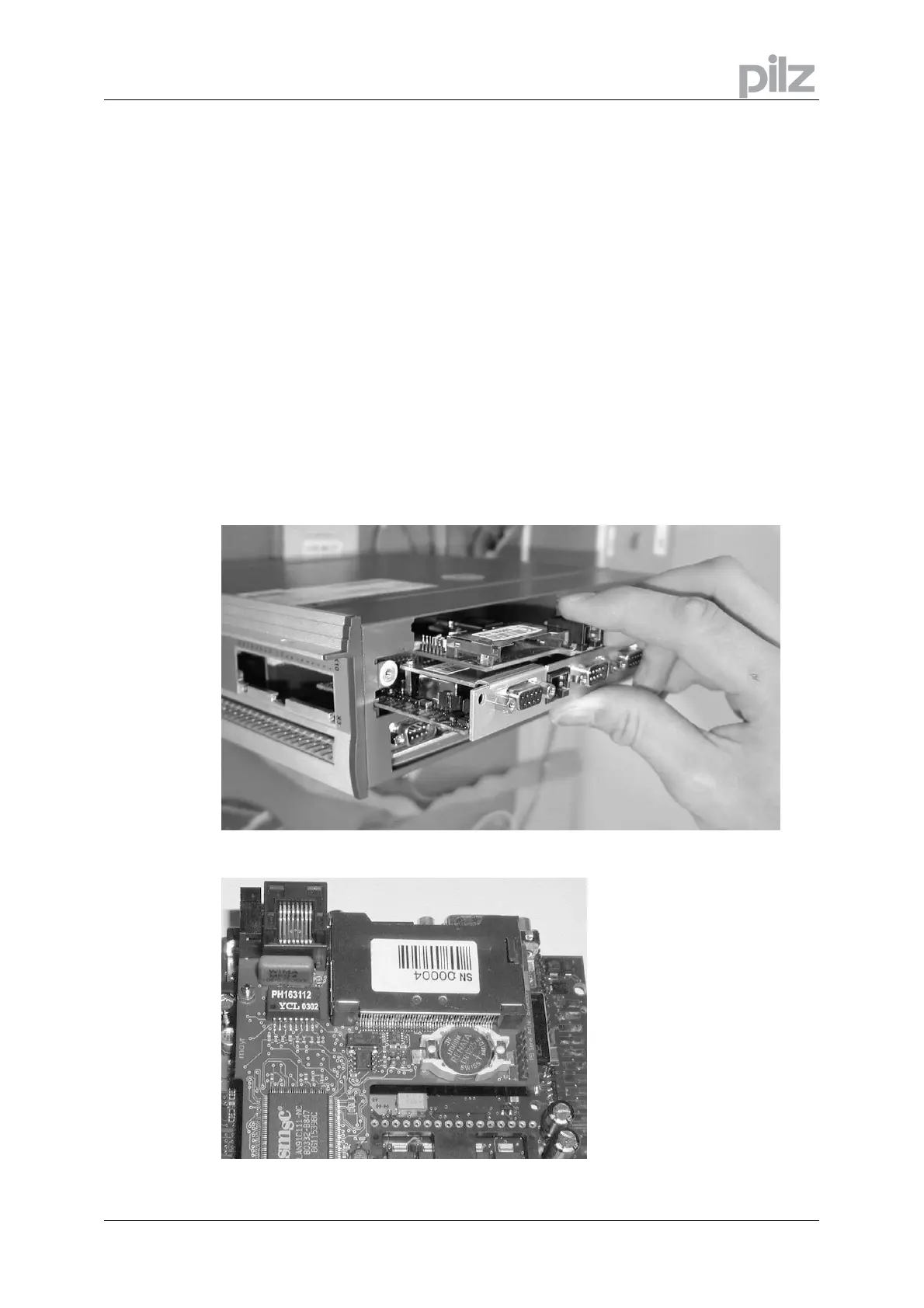

11.1.5.3 Replacing the buffer battery

The buffer battery has to be replaced when “BATT” appears in the display. With present 24 V

supply voltage, the buffer memory remains intact.

Battery type: CR1225

Procedure:

1. Remove all connectors.

2. Unscrew both M3 screws.

3. Remove the PMCprimo board.

4. Connect the 24 V voltage supply (X10, pin 2+3)

5. Replace battery, observe polarity!

6. Disconnect 24 V voltage supply.

7. Reinstall the PMCprimo board, and screw both M3 screws.

8. Connect all connectors.

9. Check: The display “BATT” expires and shows the actual status of the control.
