Page 88 Installation manual for PMCtendo DD5/PMCprimo Drive3

9.20.4.2 Control circuit

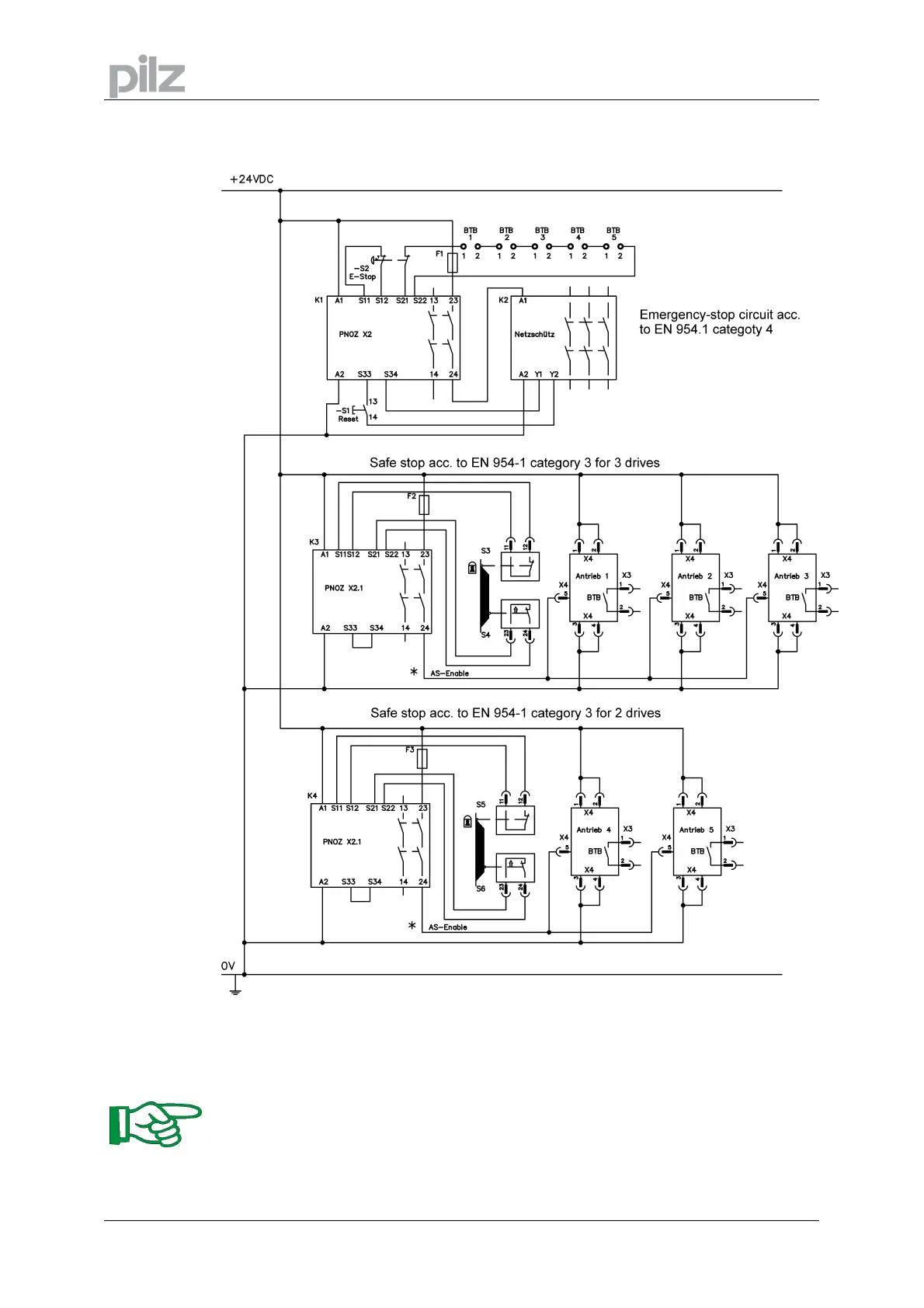

The example shows a circuit diagram with two separated work areas connected to one

emergency stop circuit. For each work area individually "safe stop" of the drives is switched by

a protective screen.

The safety switchgears used in the example fulfill at least the safety category 3 according to

DIN 954-1.

Consider the wiring instructions on page 85.
