PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 5
Nov 30/06
5H17
91-24-30
3
4
7
6
1
2
5
TB7
J326
P/O MAIN BUS
STBY ALTR
SENSE
101902-SHT 21-U
1
2
3
BLU
ORG
WHT
TO STBY ALTR SWITCH
P2N20
P3C20
P300
SP7A20
SP16A22
SP4A22
SP8A20N
TO J316-4
CB39
(REF.)
GB4-R

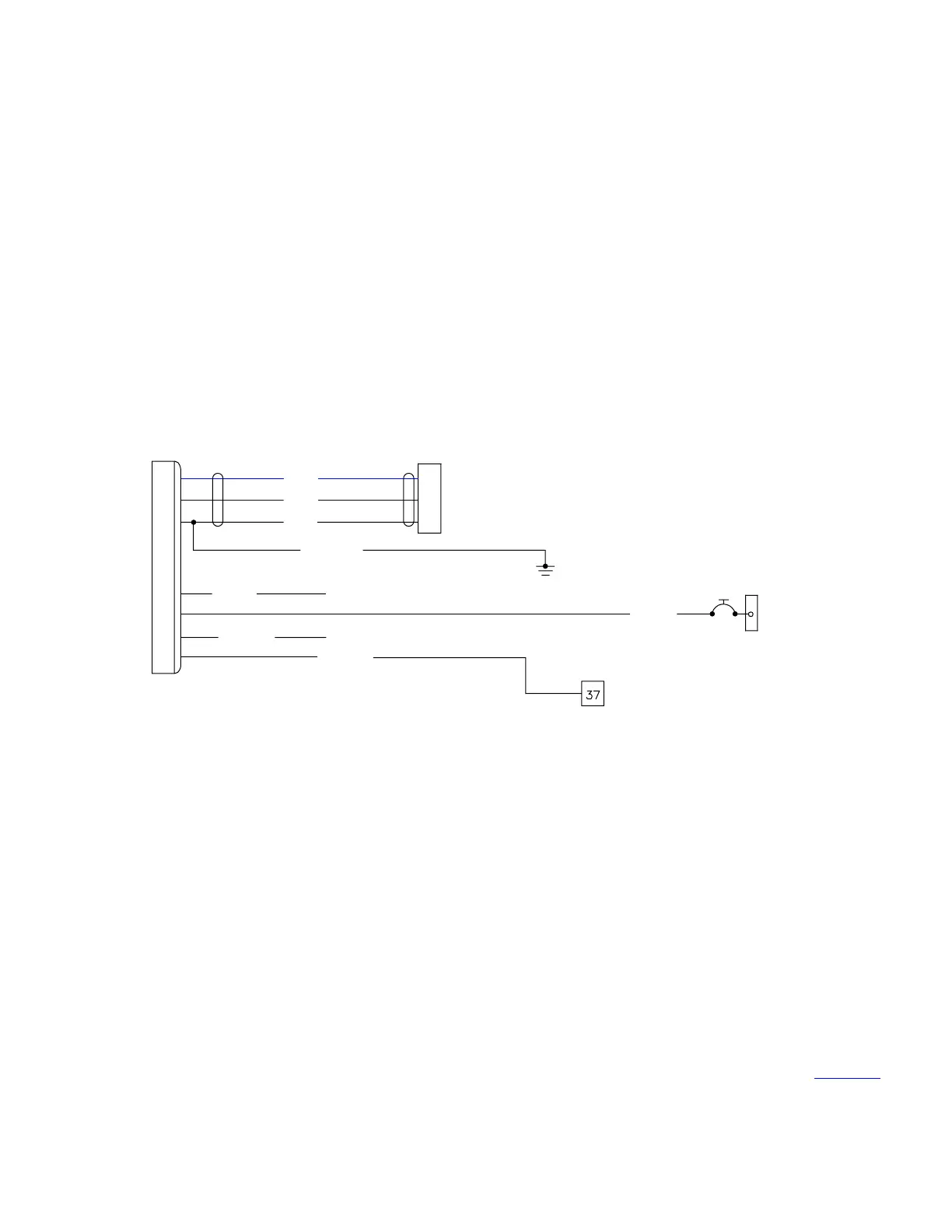

Standby Alternator
Figure 3
Effectivity
2842257 and up
with Avidyne Entegra
