PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 8
Nov 30/06
3E18
32-40-00
(d) Position the lining back plate between the wheel and brake disc. Install the two bolts to
secure the assembly.
(e) Connect the brake line to the brake cylinder housing.
(f) Bleed the brake system as described in Bleeding Brakes, below.
C. Hand/Parking Brake Master Cylinder (See Figures 5 and 6.)
(1) Removal (Refer to Figure 6.)
(a) To remove the brake master cylinder (10) first disconnect the inlet supply line (8) from the
fitting at the top of the cylinder and allow fluid to drain from the reservoir and line into a
suitable container.
(b) Disconnect the pressure line from the fitting on the cylinder and allow fluid to drain from
the cylinder line.
(c) Disconnect the end of the cylinder rod from the brake handle (6) by removing the cotter
pin that safeties the connecting clevis pin (9). Remove the clevis pin and spacer washers.
(d) Disconnect the base of the cylinder from its mounting bracket by removing the attaching
bolt assembly (11).
(e) Remove the handle assembly by removing the attaching bolt assembly that secures the
handle to its mounting bracket.

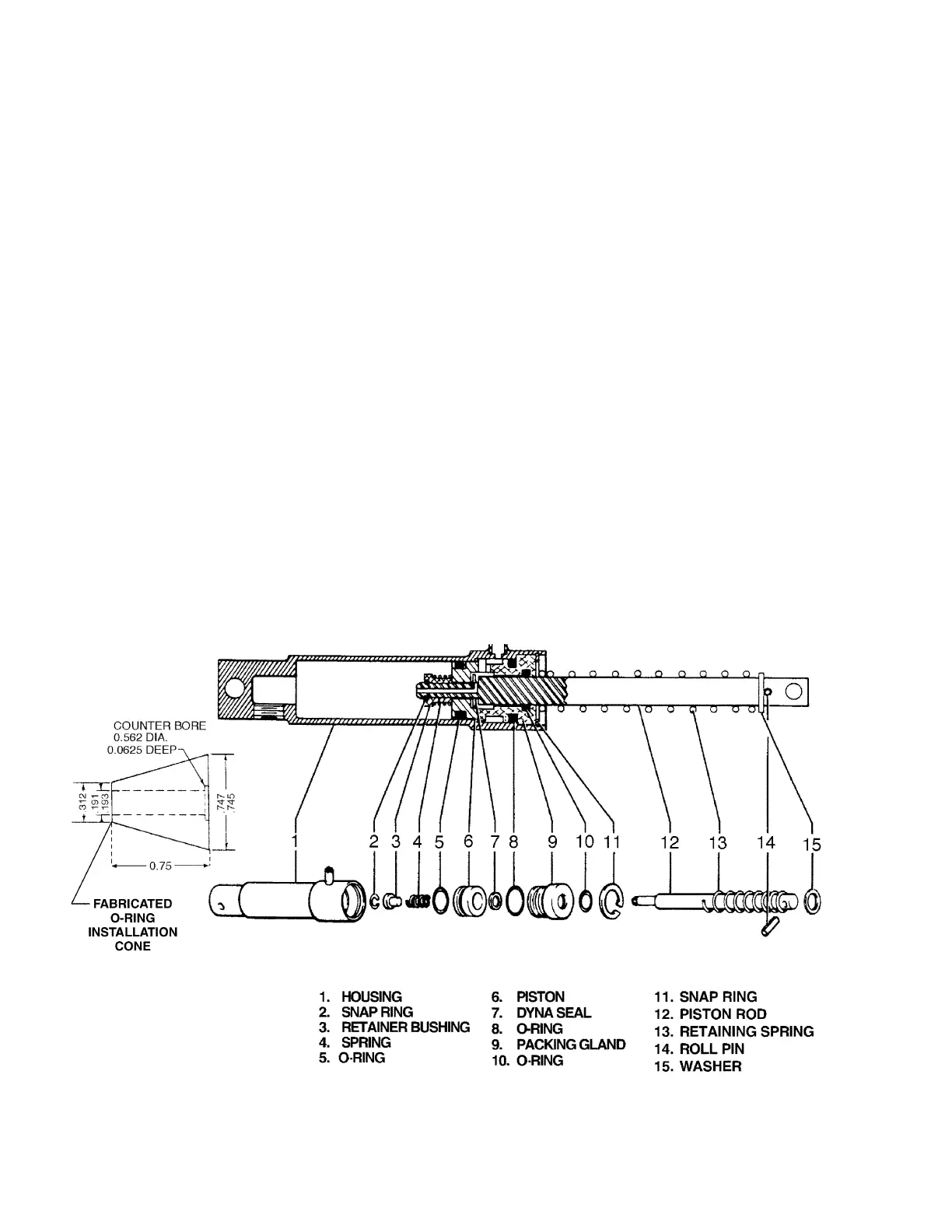

Hand / Parking Brake Master Cylinder
Figure 5
