Piper Warrior III - FLOOD LIGHTS

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
5I15
91-33-10
Flood Light

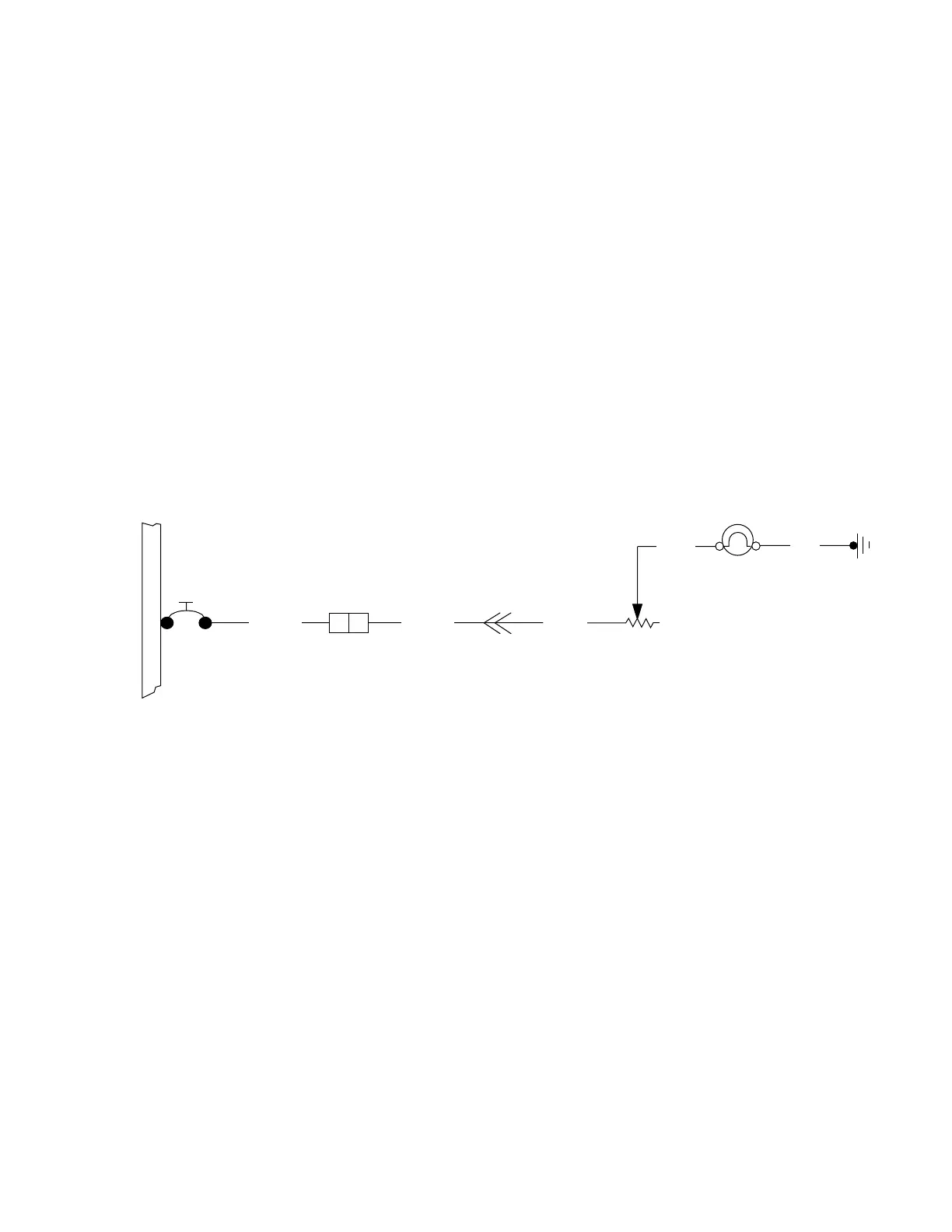

Figure 1
ELECTRICAL BUS
FLOOD
LIGHT
5A
P1 R1
L2A 20
L2B 20
77 L2D 20
FLOOD
LIGHT
WHT
BLK
GND
FLOOD
LIGHT
CONTROL
85423 F
104295 F
