Piper Warrior III - CONTROL SYSTEM, RUDDER

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 14
Nov 30/06
1I20
12-20-00
COMPONENT LUBRICANT FREQUENCY
1. RUDDER TUBE BEARING BLOCKS CARBON DIOXIDE RELEASE AGENT
(See Spec. Instr. 6 and Caution) DRY LUBRICANT MS-122N/CO
2
100 HOURS
2. TOE BRAKE CYLINDER ATTACHMENTS MIL-L-7870 100 HOURS
(See Spec. Instr. 2 and Caution 2)
3. RUDDER TUBE CONNECTIONS MIL-L-7870 100 HOURS
(See Spec. Instr. 2 and Caution)
3a.TOE BRAKE BRACE (See Spec. Instr. 2 and 6) MIL-G-7711 100 HOURS
4. BRAKE ROD ENDS (See Spec. Instr. 2 and Caution) MIL-L-7870 100 HOURS
5. NOSE GEAR STEERING ROD ENDS (See Spec. Instr. 2) MIL-L-7870 100 HOURS
6. RUDDER ARM CABLE ENDS (See Spec. Instr. 2) MIL-L-7870 100 HOURS
7. STABILATOR TRIM SCREW (See Spec. Instr. 6) MIL-S-8660B 100 HOURS
8. STABILATOR SCREW/TAB LINKS (See Spec. Instr. 2) MIL-L-7870 100 HOURS
9. STABILATOR HINGE POINTS (See Spec. Instr. 2) MIL-L-7870 100 HOURS
10. RUDDER TRIM ASSEMBLY MIL-L-7870 100 HOURS
(See Spec. Instr. 2 and Caution)
* HAND BRAKE MECHANISM PIVOT POINTS ( * not illustrated) MIL-G-7711 100 HOURS
(See Spec. Instr. 2 and 6; and Caution)
CA
UTION: DO NOT OVERLUBRICATE COCKPIT CONTROLS.

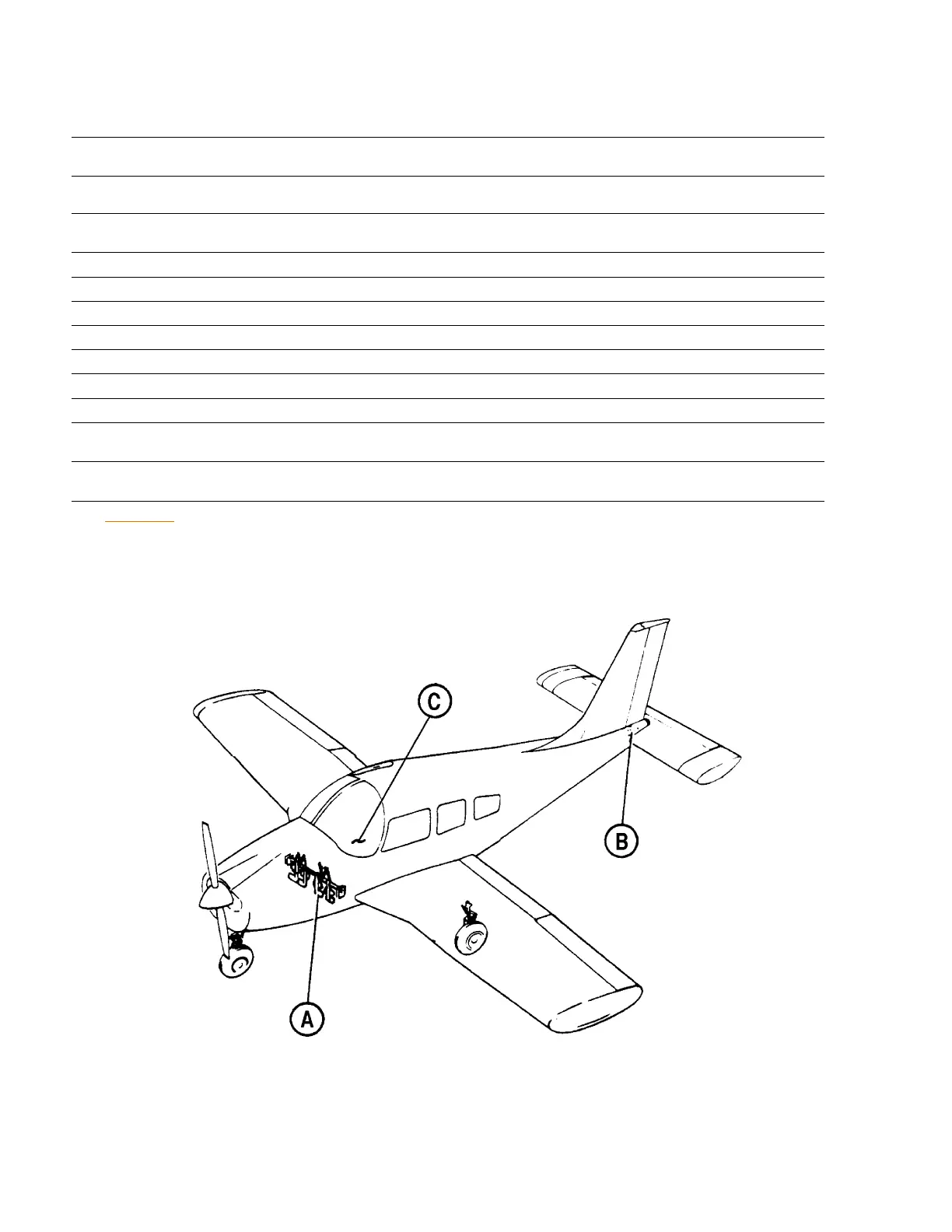

Lubrication Chart - Control System, Rudder
Figure 6 (Sheet 3 of 4)
