PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 6
Nov 30/06
1E22
6-00-00
3. Access And Inspection Provisions
CAUTION: BEFORE ENTERING THE AFT SECTION OF THE FUSELAGE, BE SURE THE
AIRPLANE IS SUPPORTED AT THE TAIL SKID.

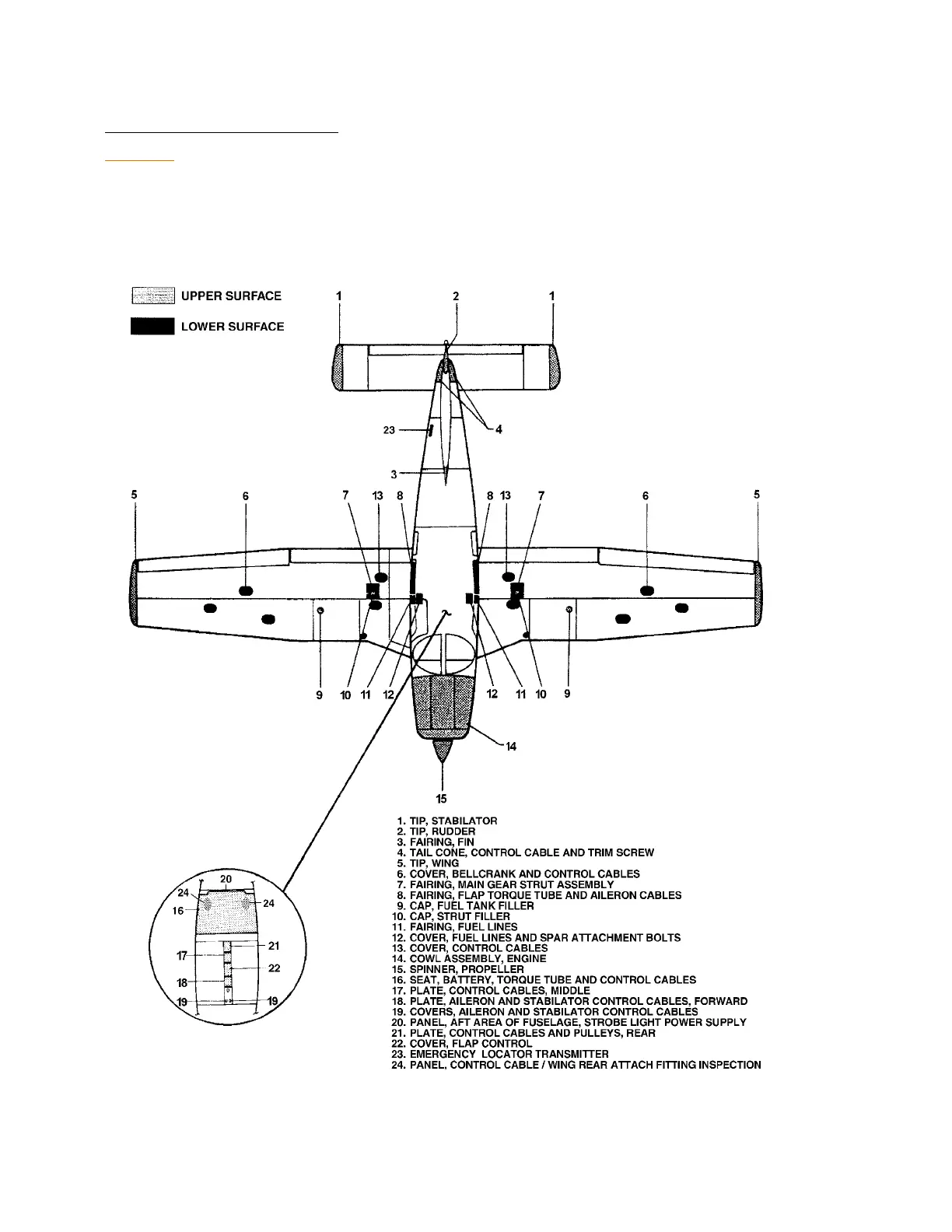

The access and inspection provisions for the airplane are shown in Figure 3. The component to be
serviced or inspected through each opening is identified in the illustration. All access plates and panels
are secured by either metal fasteners or screws. To enter the aft section of the fuselage, open the
baggage compartment door and remove the rear trim panel.
Access Plates and Panels
Figure 3
