Piper Warrior III - WHEELS AND BRAKES; WHEELS; MAIN WHEEL; REMOVAL AND DISASSEMBLY

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
3E11
32-40-00
WHEELS AND BRAKES
1. Wheels
A. Main Wheel (See Figure 1.)
(1) Removal and Disassembly
(a) Place the airplane on jacks. (Refer to Jacking, Section 7-10-00.)
(b) If wheel fairing is installed, remove attaching screws, bolt and remove the fairing.
(c) To remove the main wheel, remove the four cap bolts that join the brake cylinder housing
and the lining back plate assemblies. Remove the back plate from between brake disc and
wheel.
(d) Remove the dust cover and the cotter pin that safeties the wheel nut, remove the wheel
nut and slide the wheel from the axle.

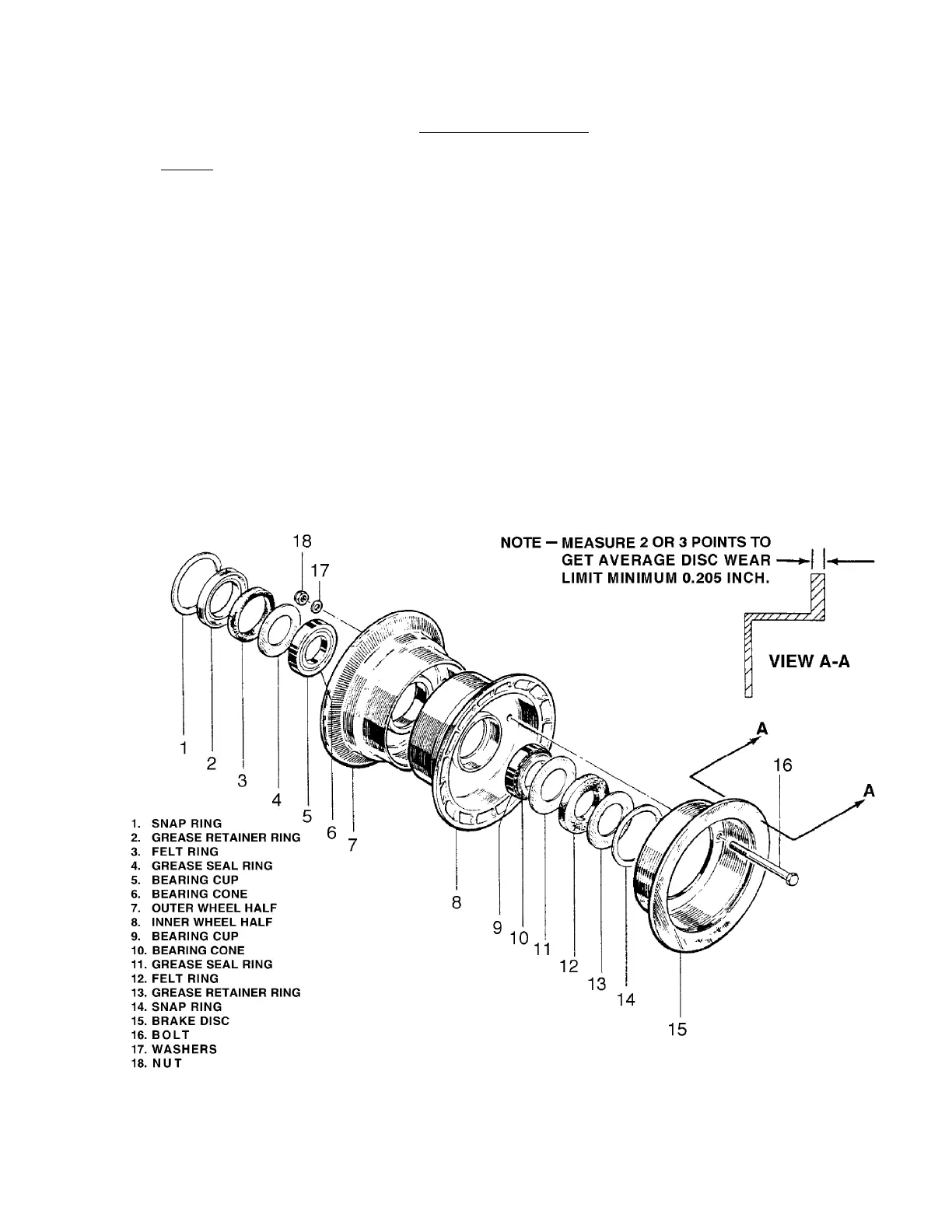

Main Wheel Assembly
Figure 1
