GENERAL
The principal airplane dimensions are shown in Figure 1, and the leading particulars/principal
dimensions are listed in Chart 1. The airplane serial number is located on the Manufacturers Aircraft
Association (MAA) plate on left side of the fuselage near the leading edge of the stabilator. The engine
serial number plate is located on the right side of the engine oil sump just below cylinder number 4.

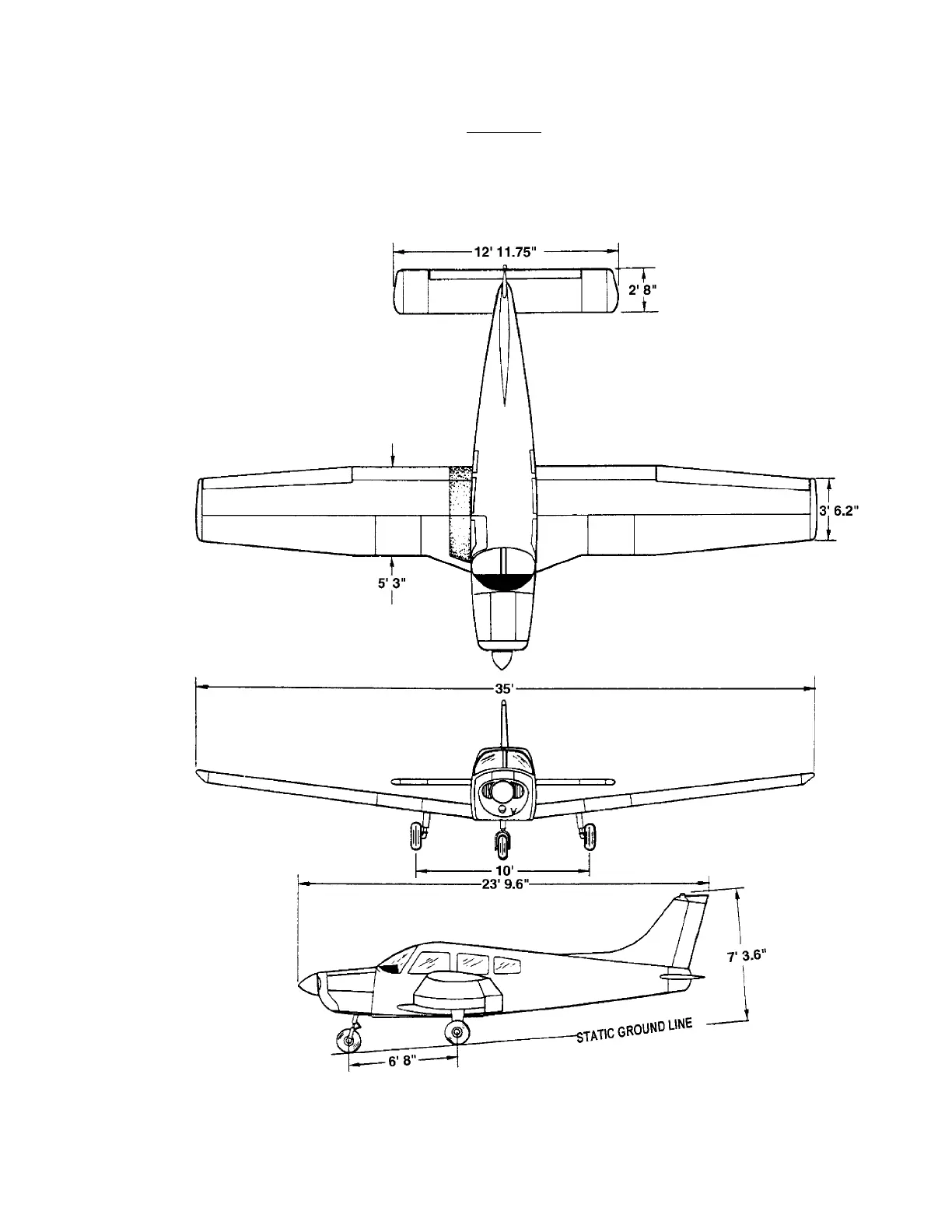

Three View
Figure 1
