Piper Warrior III - MAGNETOMETER;OAT ASSEMBLY

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
5J7
91-34-10
9
5
6
8
7
1
4
3
2
P729
CONNECTOR
TO MAG/OAT
E
G
C
D
H
F
B
J734
WHT
BLU
BLU
WHT
BLU
WHT
BLU
ORN
WHT
ORN
WHT
ORN
BLU
101753 C

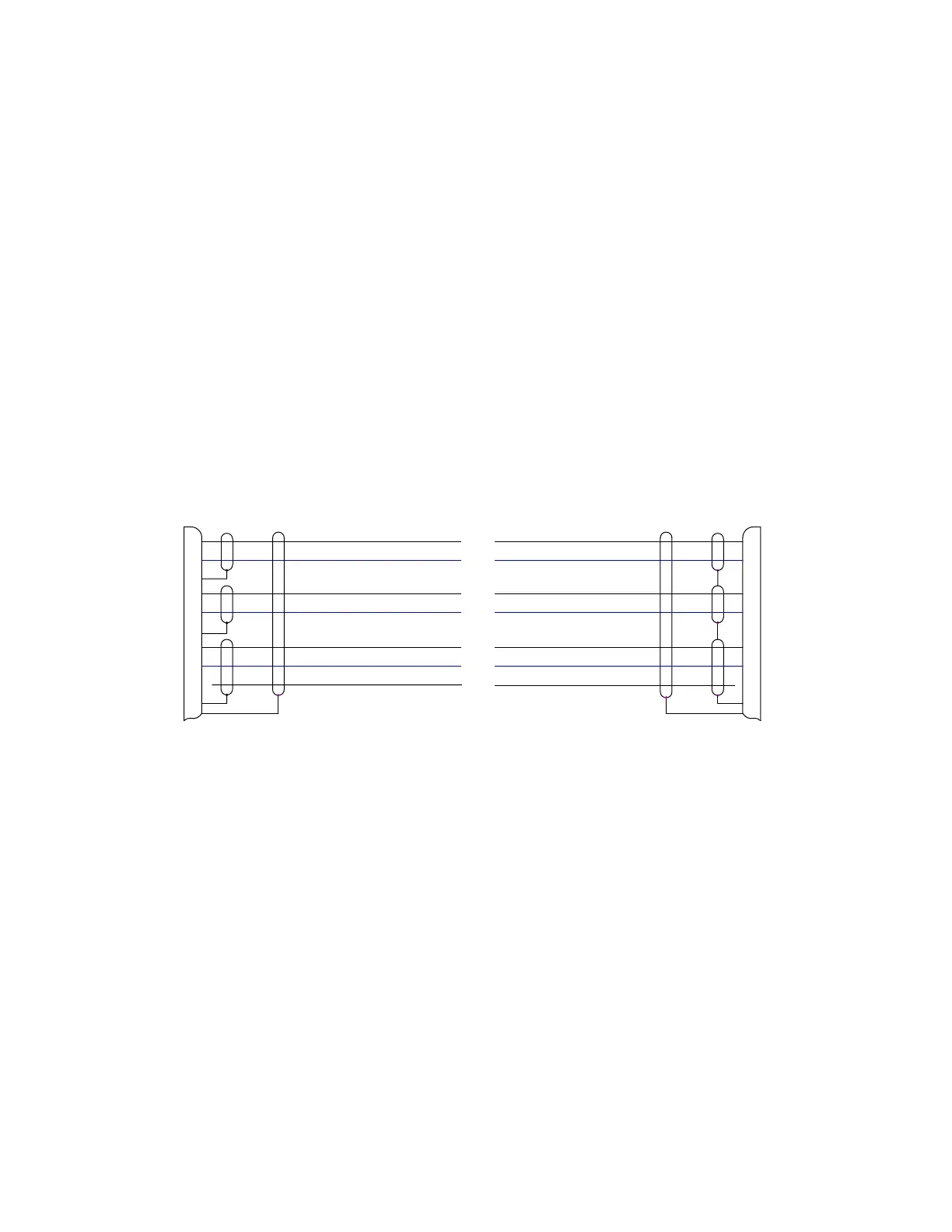

Magnetometer/OAT Assembly
Figure 1
