PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
2E11
24-30-00
PAGE 19
Nov 30/06
Standby Alternator Installation

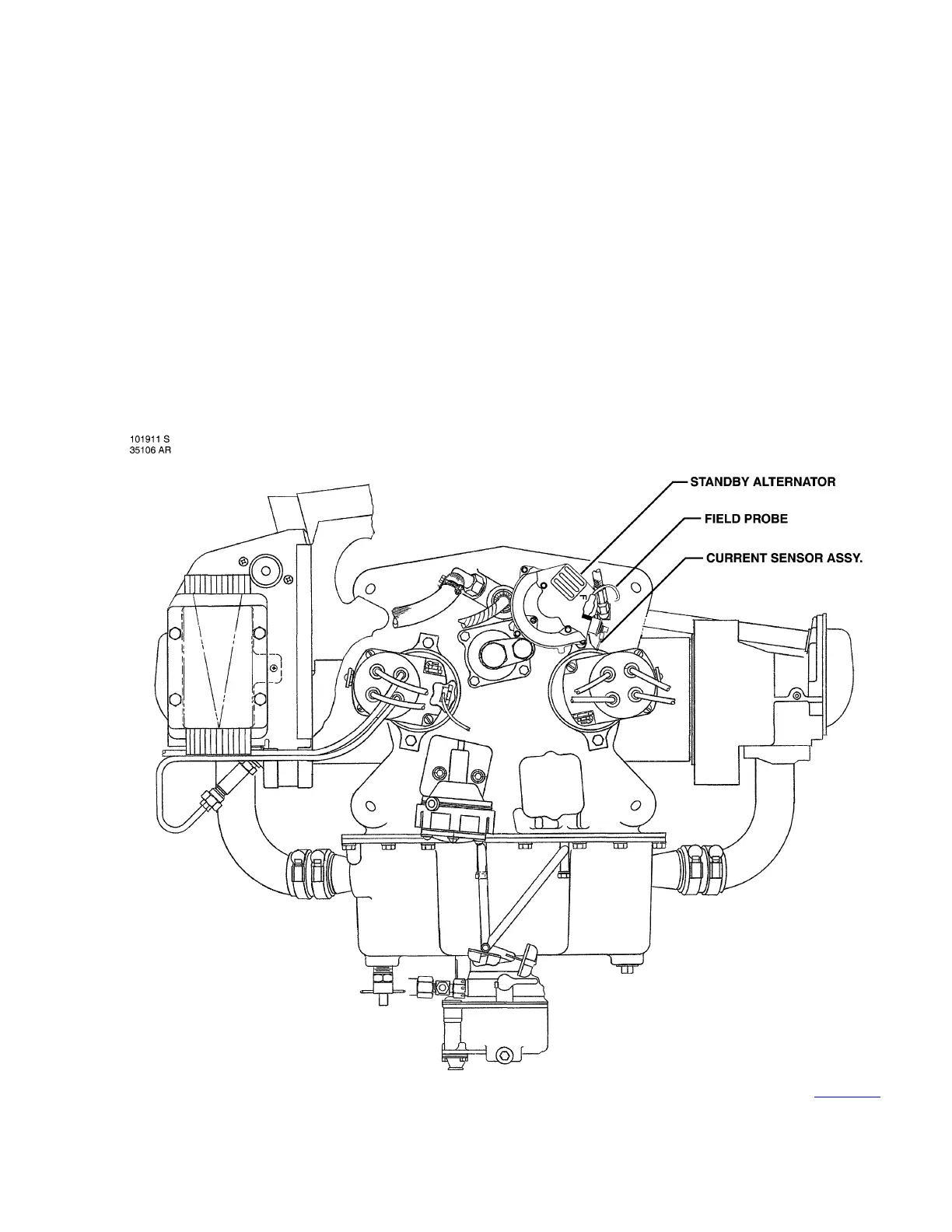

Figure 4
Effectivity
2842257 and up
G. Removal
(1) Disconnect wiring harness.
(2) Remove washers and nuts (4).
(3) Pull standby alternator and gasket from drive pad.
H. Installation
(1) Orient standby alternator as shown in Figure 4 and place in position on drive pad.
(2) Locate new gasket and standby alternator on drive pad.
(3) Secure with washers and nuts (4 each).
(4) Torque nuts to 60 to 70 in-lbs.
(5) Connect wiring harness.
