PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 1
Nov 30/06
5I1
91-28-40

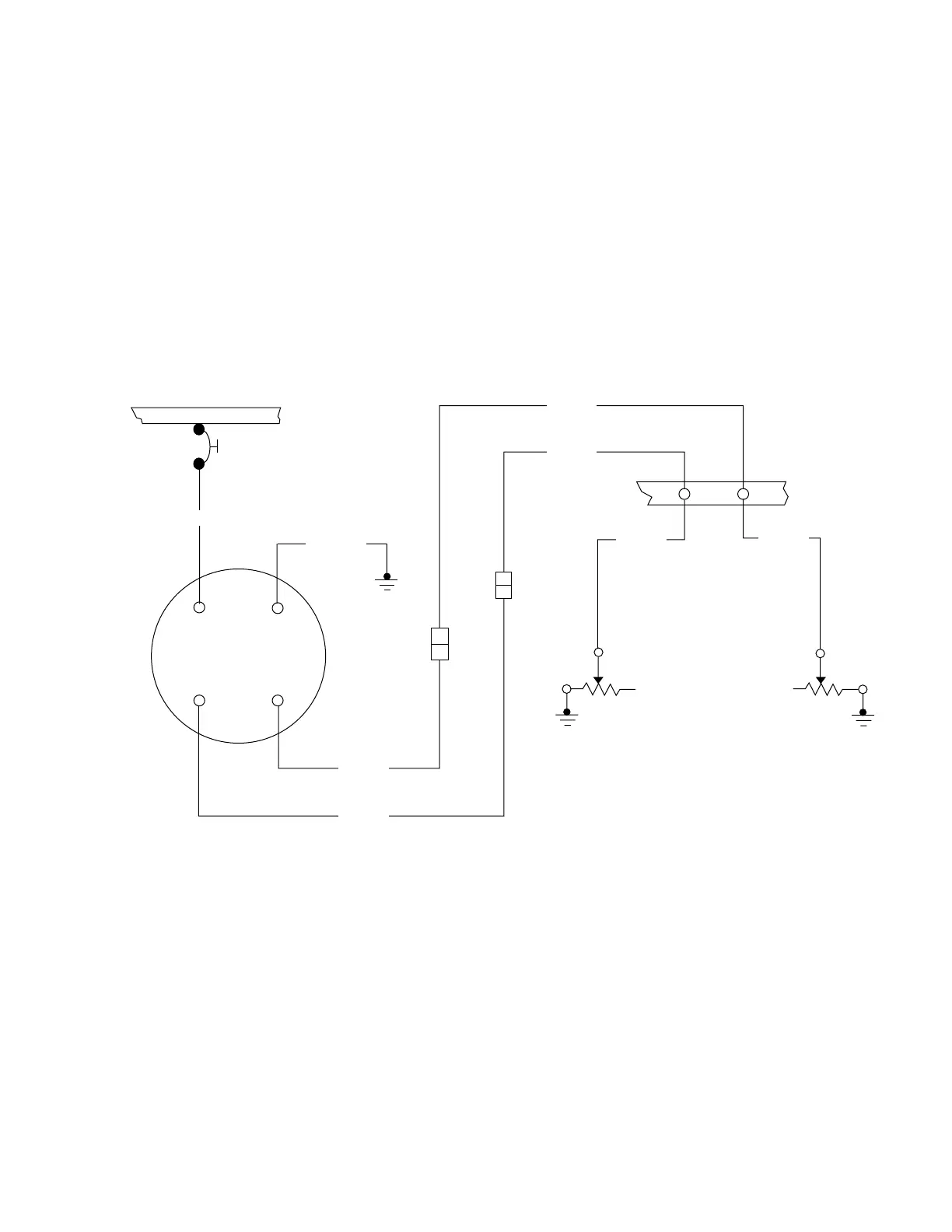

Fuel Quantity
Figure 1
28V GND
LEFT RIGHT
ELECTRICAL BUS
FUEL
GAUGE
Q3E 20N
Q1A 20
3A
Q3A 20
Q4A 20
Q3C 20
Q4C 20
14
14
1
1
P1
R1
R2
P2
Q4B 20 Q3B 20
10
9
LEFT
SENDER
RIGHT
SENDER
85423 F
104295 F
