Piper Warrior III - Page 255

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 5
Nov 30/06
2C13
21-20-00
L8 L5L8 L5 L7L7

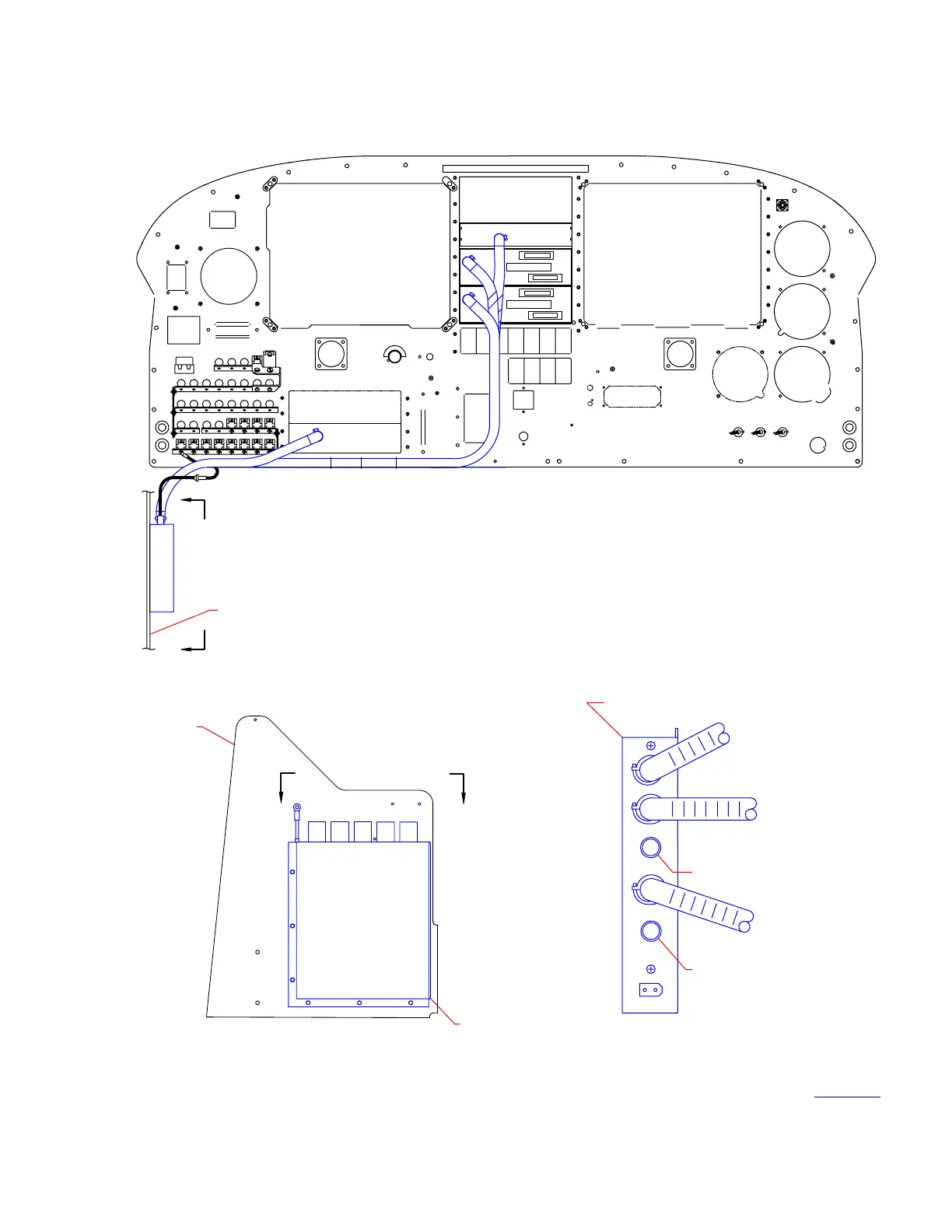

AVIONICS BLOWER INSTALLATION
LOOKING AFT
INSTL.
SEE
ELT
OPTIONAL DME
MFD (REF)
ALT (REF)
ASI (REF)
ADI (REF)
PFD (REF)
ADF
OR
GI 106
(REF)
GNS-430
GNS-430
SYSTEM 55
P4006
P4002
P4001
P4002
P4001
P4006
A
A
1
2
3
4
CB7
CB11
CB2
CB31
CB27
CB28CB29
CB26
CB35
CB37
CB36
CB21
CB32CB34
CB33
CB30
CB6
CB1
GTX-330 XPDR (REF)
ADF (REF)
CB23
CB24
CB25
CB22
CB12CB13 CB10 CB9 CB8
CB20 CB19 CB18 CB17 CB16 CB15 CB14
CB5 CB4 CB3
FROM GNS-430 NO 1
VIEW B - B
(ROTATED 90° CCW)
+-
3
2
1
FROM GNS-430 NO 2
VIEW A - A
4
5
FROM GTX-330
B
B
OUTLET CAPPED
RIGHT SIDEWALL OF AIRCRAFT
BRACKET
BLOWER
OUTLET CAPPED
BLOWER
101901 L
Avionics Cooling
Figure 1 (Sheet 3 of 3)
Effectivity
with Avidyne Entegra
