Piper Warrior III - Page 331

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 3
Nov 30/06
2F19
25-60-00

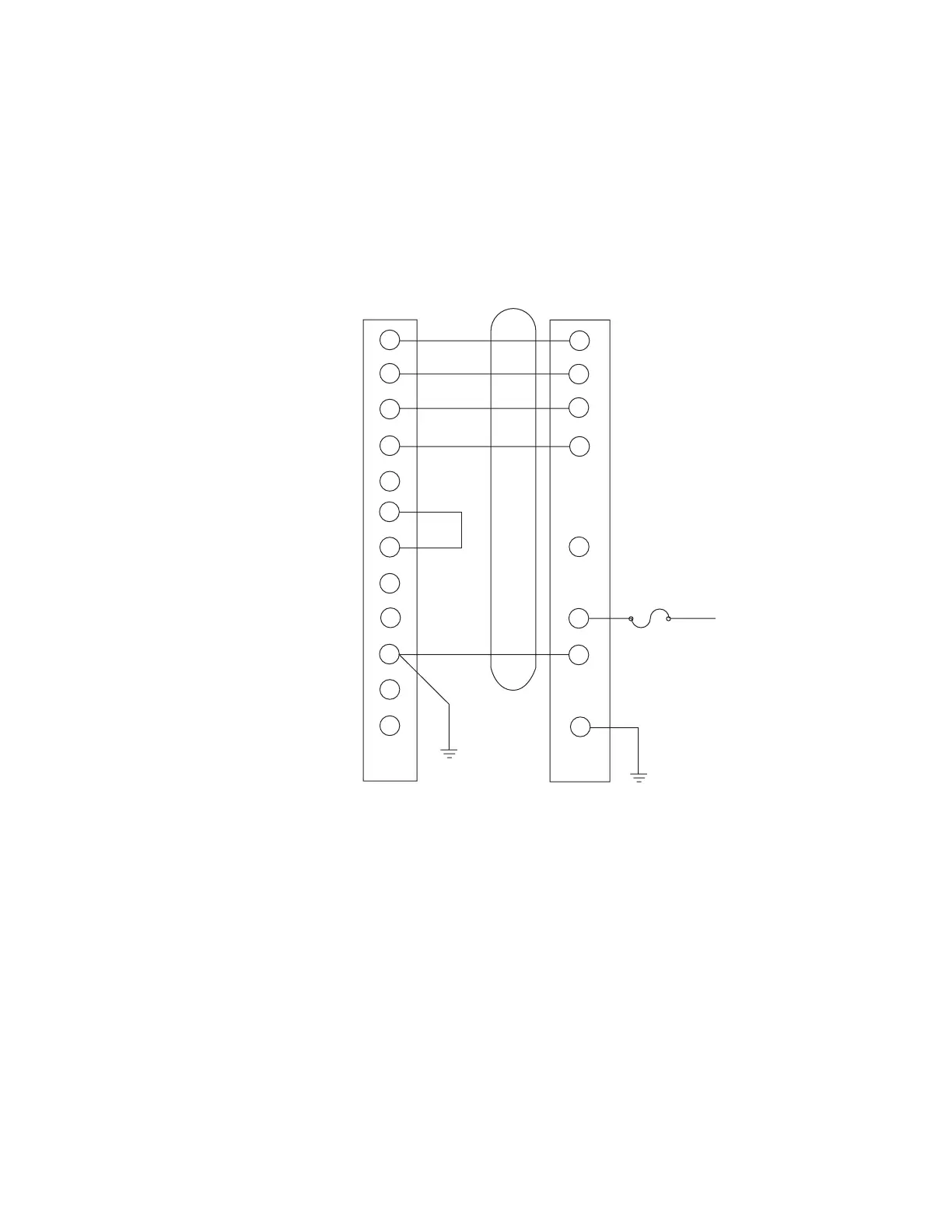

Artex ELT 110-4 Wiring Schematic
Figure 2
2
1
3
5
6
7
8
9
10
8
5
12
6
3
9
7
1
P203
ELT
REMOTE
SWITCH
J501
4
2
11
AIRTEX
ELT 110-4
LIGHT
RESET 1
RESET 2
EXTERNAL ON
NO CONNECTION
G-SWITCH LOOP
G-SWITCH LOOP
NO CONNECTION
NO CONNECTION
NO CONNECTION
NO CONNECTION
GROUND
1A
+28 VDC
TO
28 VDC
SOURCE
NO CONNECTION
06311-T
