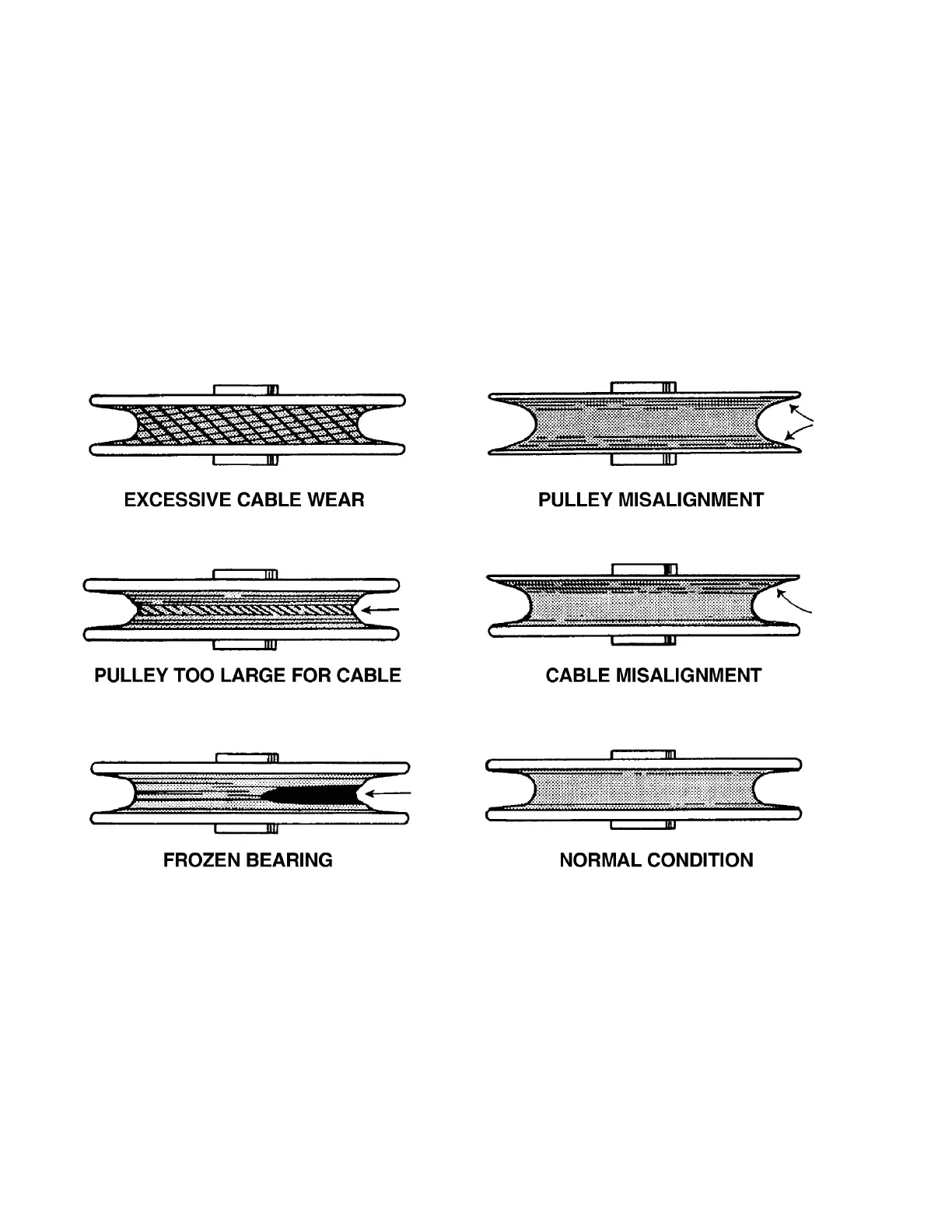

Pulley Wear Patterns
Figure 4
H. Pulley Wear Patterns
Various cable system malfunctions may be detected by analyzing pulley conditions. These include
such discrepancies as too much tension, misalignment, pulley bearing problems, and size
mismatches between cables and pulleys. Examples of these conditions are shown in Figure 4.
