ALIGNMENT PIN SLOT
MFD
PFD
INSTALL PFD WITH 4 CAPTIVE SCREWS
(TORQUE TO 31 - 32 IN-LBS)
INSTALL MFD WITH
4 CAPTIVE DZUS FASTENERS
INSTRUMENT PANEL - LOOKING FWD
INSTRUMENT PANEL - LOOKING AFT
101901-SHT 6-N
STANDBY ATTITUDE INDICATOR
MFD
PFD
STANDBY ATTITUDE
INDICATOR
101901-SHT 7-N
TURN COORDINATOR

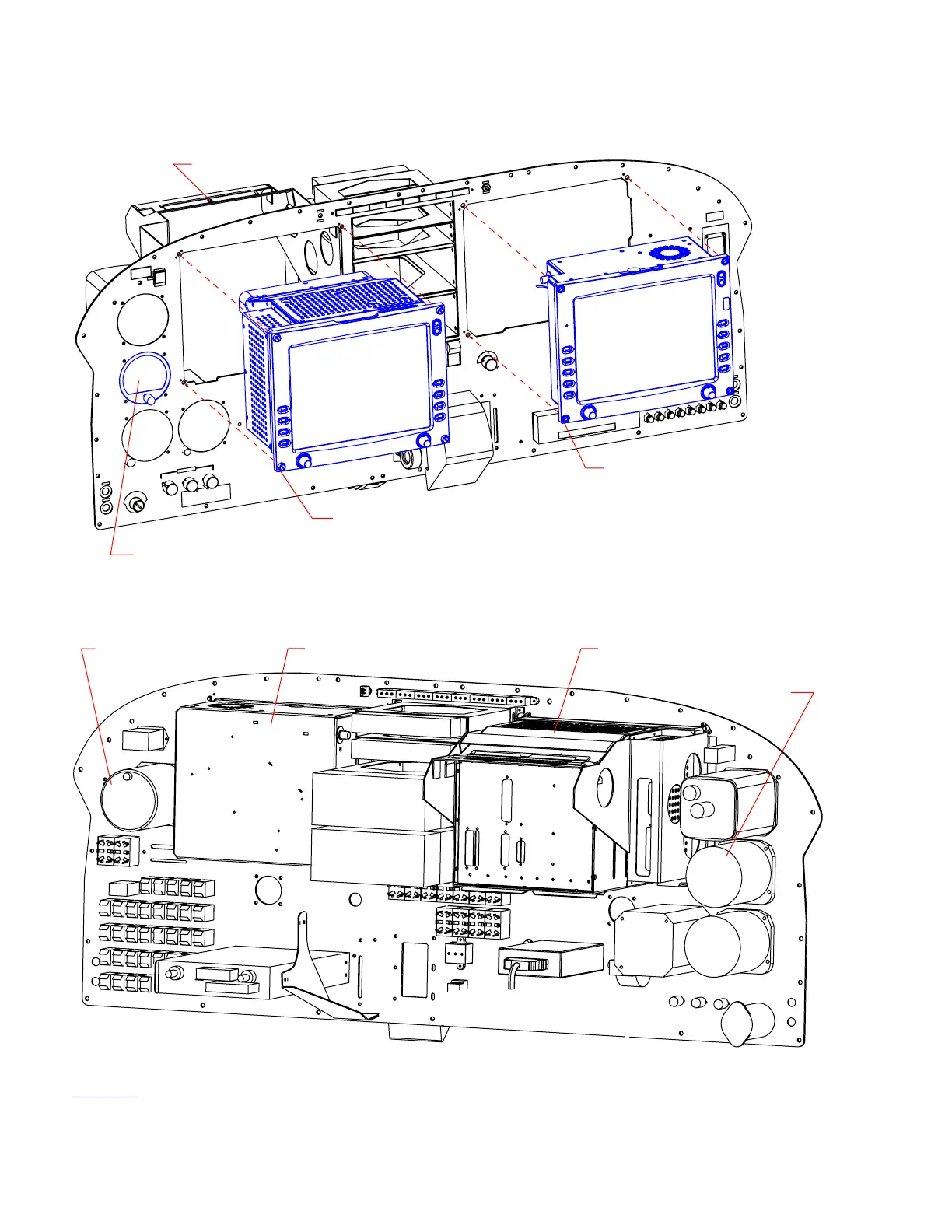

EFIS Component Locator
Figure 2 (Sheet 1 of 3)
Effectivity
with Avidyne Entegra
