PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 6
Nov 30/06
3H6
34-20-00

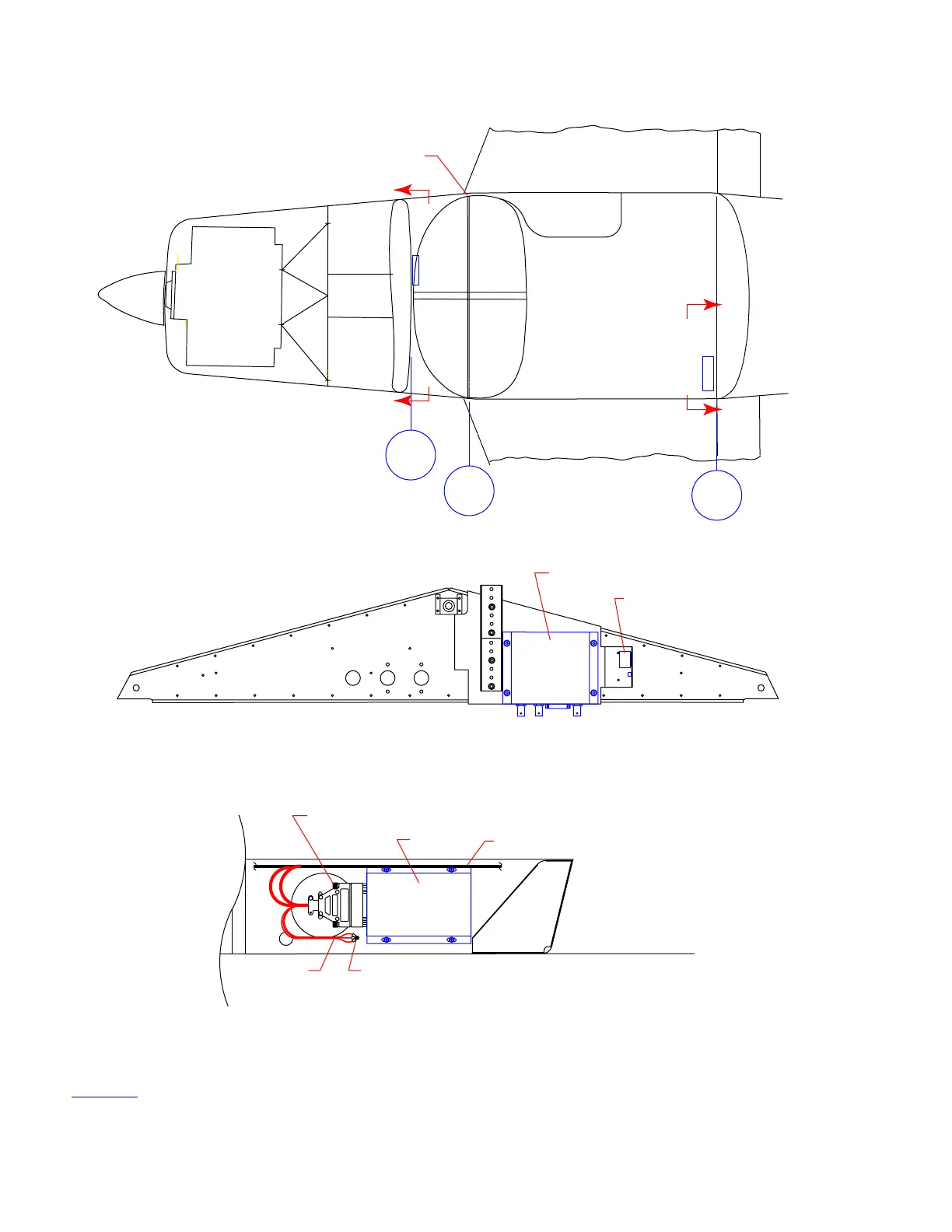

Component Locator
Figure 2 (Sheet 2 of 3)
FS
48.6
FS
62.88
INSTRUMENT PANEL (REF.)
101901-SHT 4,8-N
101910 P
101901-SHT 8-N
101910-SHT 5-K
FS
128.73
DC-50 ANTENNA COUPLER
K17 RELAY AND
SUPPRESSION DIODE
VIEW A-A
ANTENNA COUPLER INSTALLATION - LOOKING FWD (STA 48.6)
P303, P304, & P305 (REF)
DAU
VIEW B-B
DAU INSTALLATION - LOOKING AFT (STA 128.737)
GROUND TO EXISTING GROUND STUD,
INSTALL WASHERS BETWEEN TERMINALS.
P5C22N
Q3A20N
Q4A20N
P7D22N
FUSELAGE HARNESS (REF)
A
A
B
B
Effectivity
with Avidyne Entegra
