PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 10
Nov 30/06
3H10
34-20-00

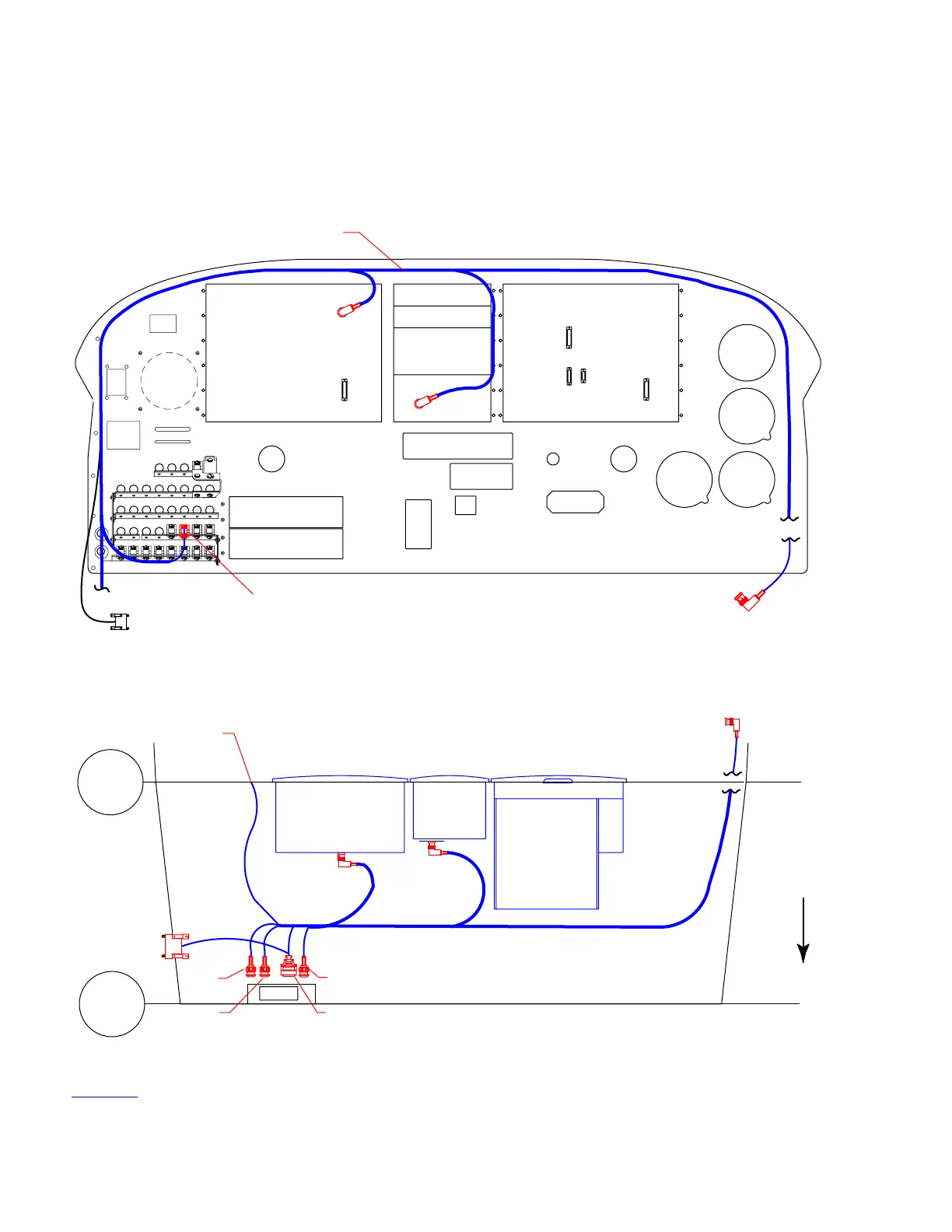

EFIS Wiring Harness Installation
Figure 3 (Sheet 2 of 2)
Effectivity
with Avidyne Entegra
CB24
(COM 2)
GMA-340
PFD (REF)
MFD (REF)
GNS 430 #2
GNS 430 #1
GTX-330
TRANSPDR (REF)
ADF RECEIVER
(OPT.)
J530
J731
J733
J732
J730
ADI
(REF)
ADF OR
GI 106
(OPT)
FWD
TO GROUND BLOCK (REF)
COM ANT
TO COM2 / DATALINK ANT
(LOOKING AFT)
(LOOKING DOWN)
AVIONICS SYSTEM HARNESS ASSY
MFD
PFD
TO CB24
COM ANT
P531
DC50
P502
P505
(COMM 2)
P503
(MFD)
P501
(ANT)
P531
TO DC 50 COUPLER
ASI
(REF)
ALT
(REF)
TO GROUND
BLOCK (REF)
F. S.
62.938
F. S.
48.6
GNS 430 #2
101901-SHT 17-N
TO COM2 / DATALINK ANT
ANTENNA COUPLER WIRING HARNESS INSTALLATION
