Piper Warrior III - Page 618

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 8
Nov 30/06
3J4
37-10-00
MOTOR
373-17
373-15
373-19
373-13
F7-64-1
RELAY
V6A20
EMI
FILTER
PUMP
SWITCH
VAC OFF
AUX ON
(FRONT VIEW)
(REAR VIEW)
V5A20
V4A20
MANIFOLD
V3B20
V3C20
V1A20
ETI ASSEMBLY
20
5
D. C. BUS
V3A20
V2A20
W4B
REGULATOR
V7A14
C
NC
NC
C
NO
NO
1
2
3
2
1
JUMPER
JUMPER

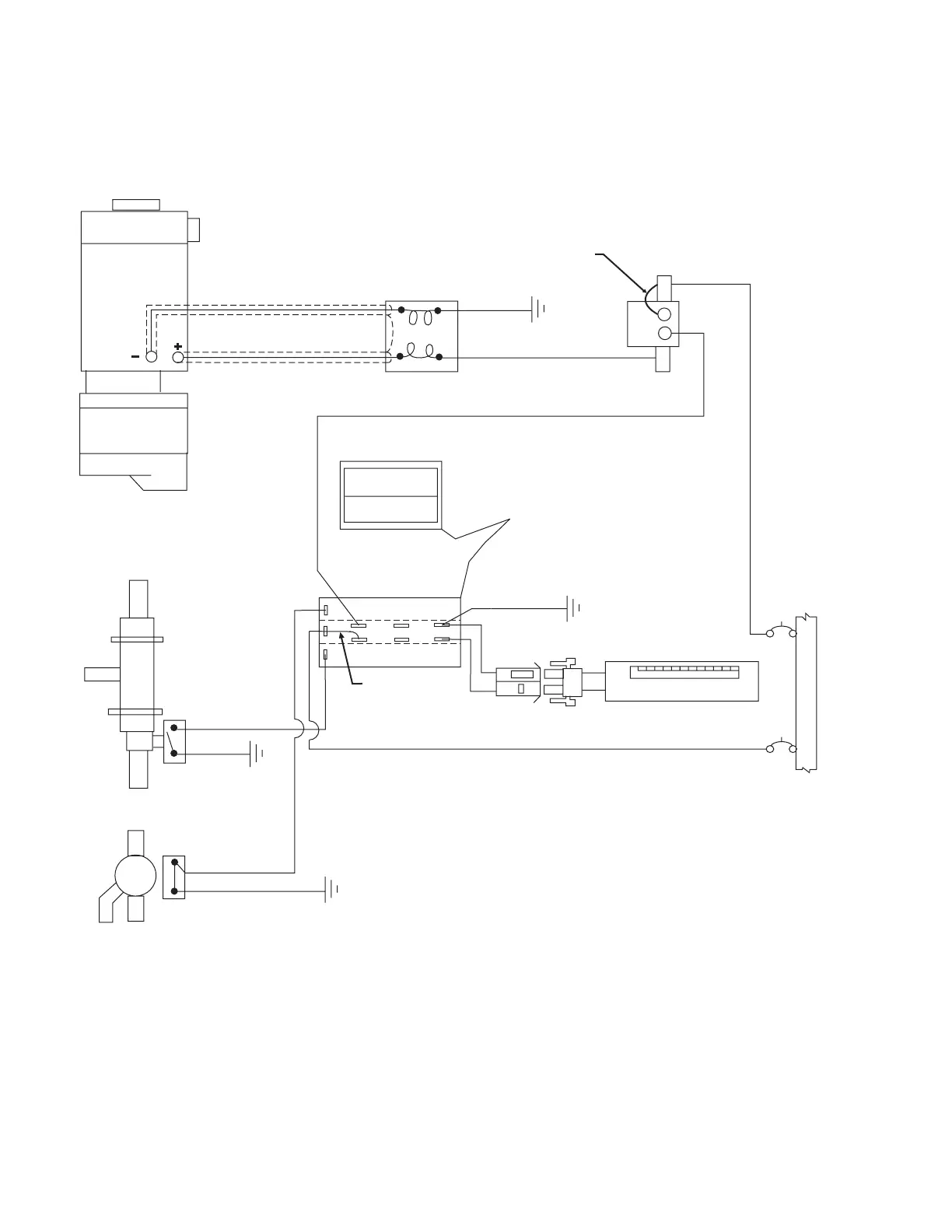

Auxiliary Vacuum Pump Electrical Schematic (Optional)
Figure 3
