Piper Warrior III - Page 641

PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 5
Nov 30/06
3K3
39-20-00
FUSELAGE
HARNESS
ASSEMBLY
BLACK
RED
LOOKING OUTBOARD FROM CENTERLINE
P1C4
M1B20
L11B20
P1D4
P4A20
TO STARTER CONTACTOR
S/N’S 2842218 AND UP
BATTERY CONTACTOR
BATTERY CONTACTOR
P1D4
P1C4
M2C20
M1B20
P4AA20
FUSE ASSY
TO STARTER CONTACTOR
REDBLACK
S/N’S 2842001 THRU 2842217

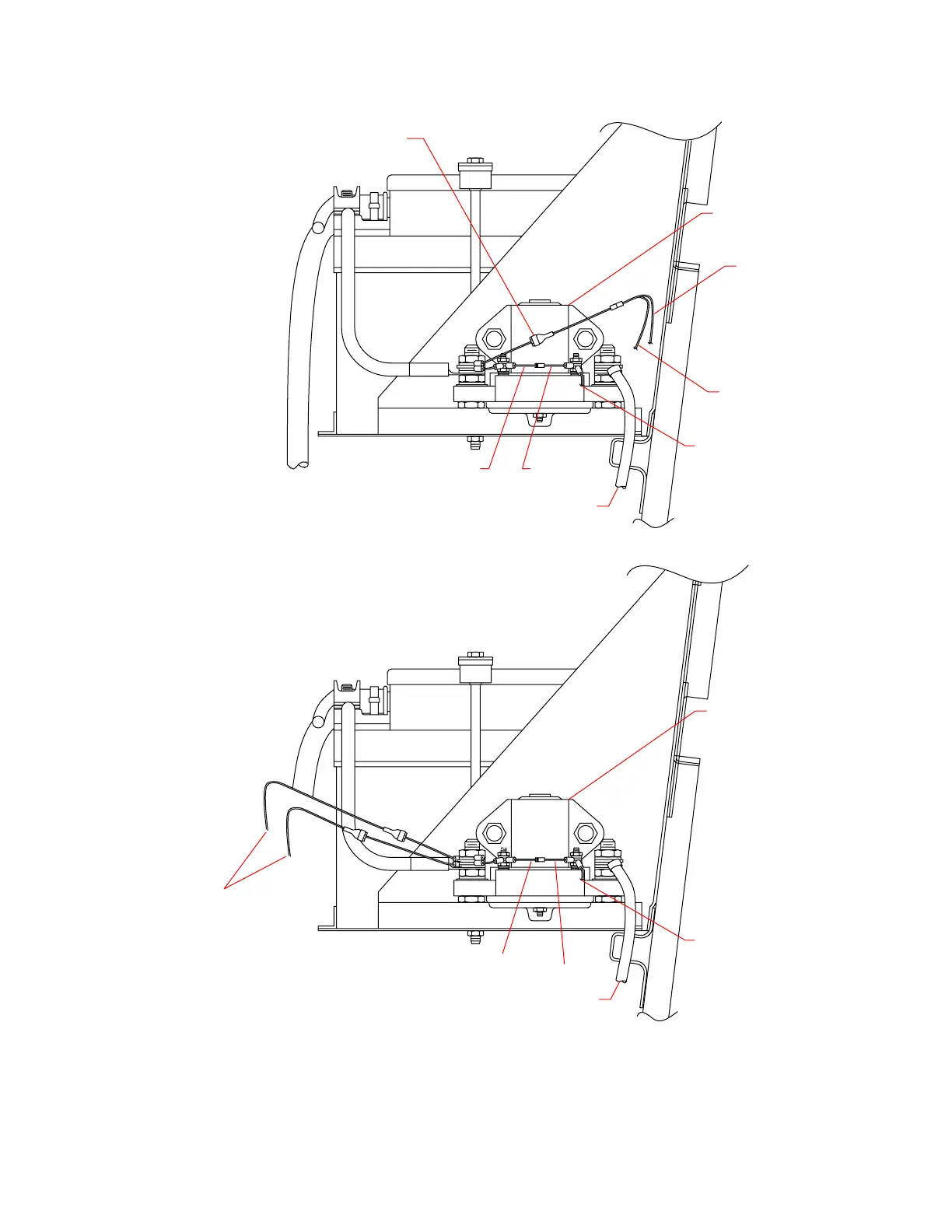

Electrical/Electronic Component Locator
Figure 1 (Sheet 4 of 12)
