PIPER AIRCRAFT, INC.
PA-28-161, WARRIOR III
MAINTENANCE MANUAL
PAGE 7
Nov 30/06
3K5
39-20-00

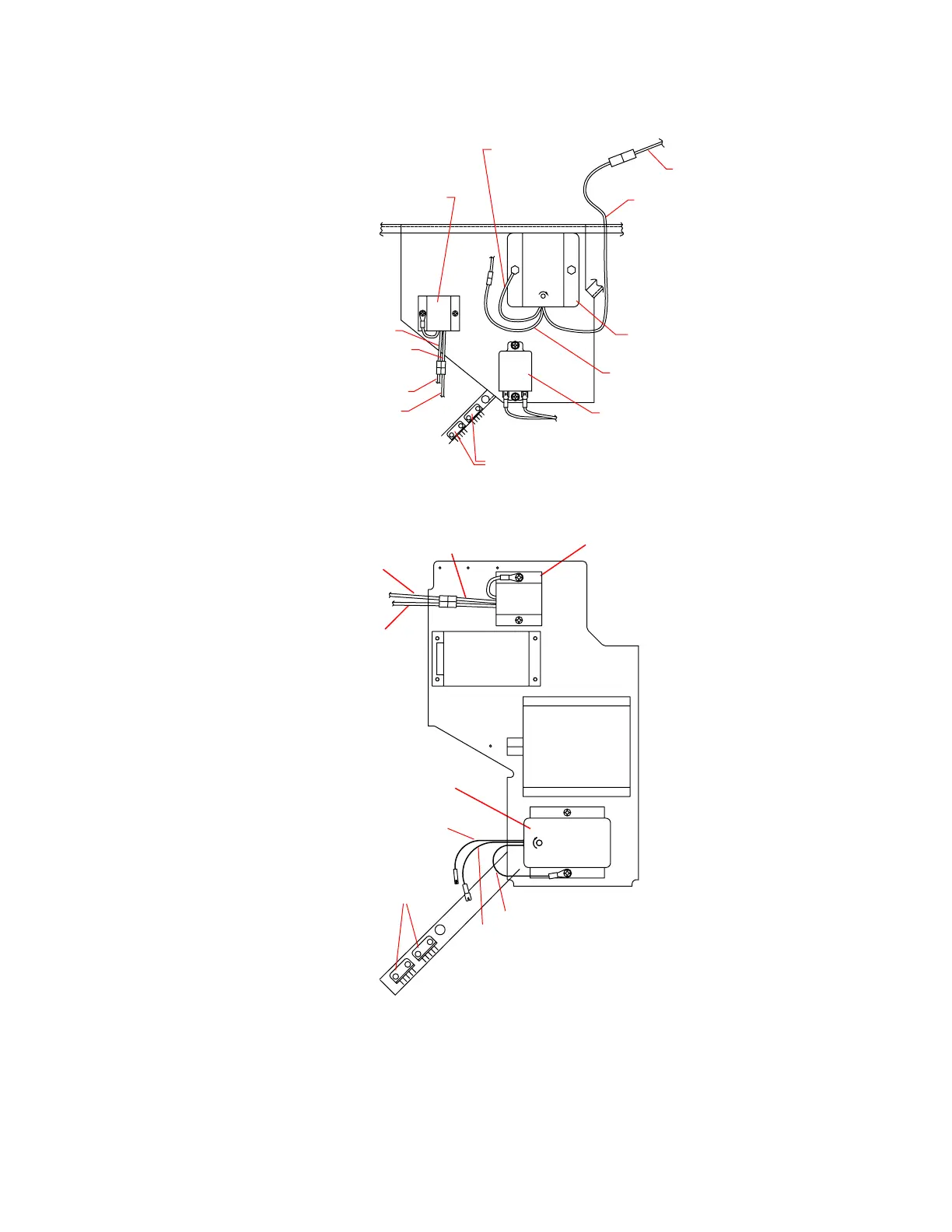

Electrical/Electronic Component Locator
Figure 1 (Sheet 6 of 12)
ALTR OUT SWITCH
(RED WIRE)
(W2D20)
(W2B20)
VOLTAGE
REGULATOR
GB3
GB3
GB4
GB4
ENCODER
(REF)
TRIM
MONITOR
(REF)
(GROUND BLOCKS)
(RED)
(BLUE)
(BLACK)
LEFT SIDE ELECTRICAL PANEL
UNDER INSTRUMENT PANEL, LOOKING OUTBOARD
S/N’s 2842218 AND UP
VOLTAGE
REGULATOR
ALTR OUT
SWITCH
(BLUE)
P2C20
(BLACK)
GROUND BLOCKS
(RED)
(RED)
(GREEN)
PRIMER SWITCH
RELAY
(W2B20)
(W2D20)
S/N’s 2842001 THRU 2842217
