4.5.1 Static Aggregation
This page is used to configure the Aggregation hash mode and the aggregation group. The aggregation hash
mode settings are global.
Hash Code Contributors

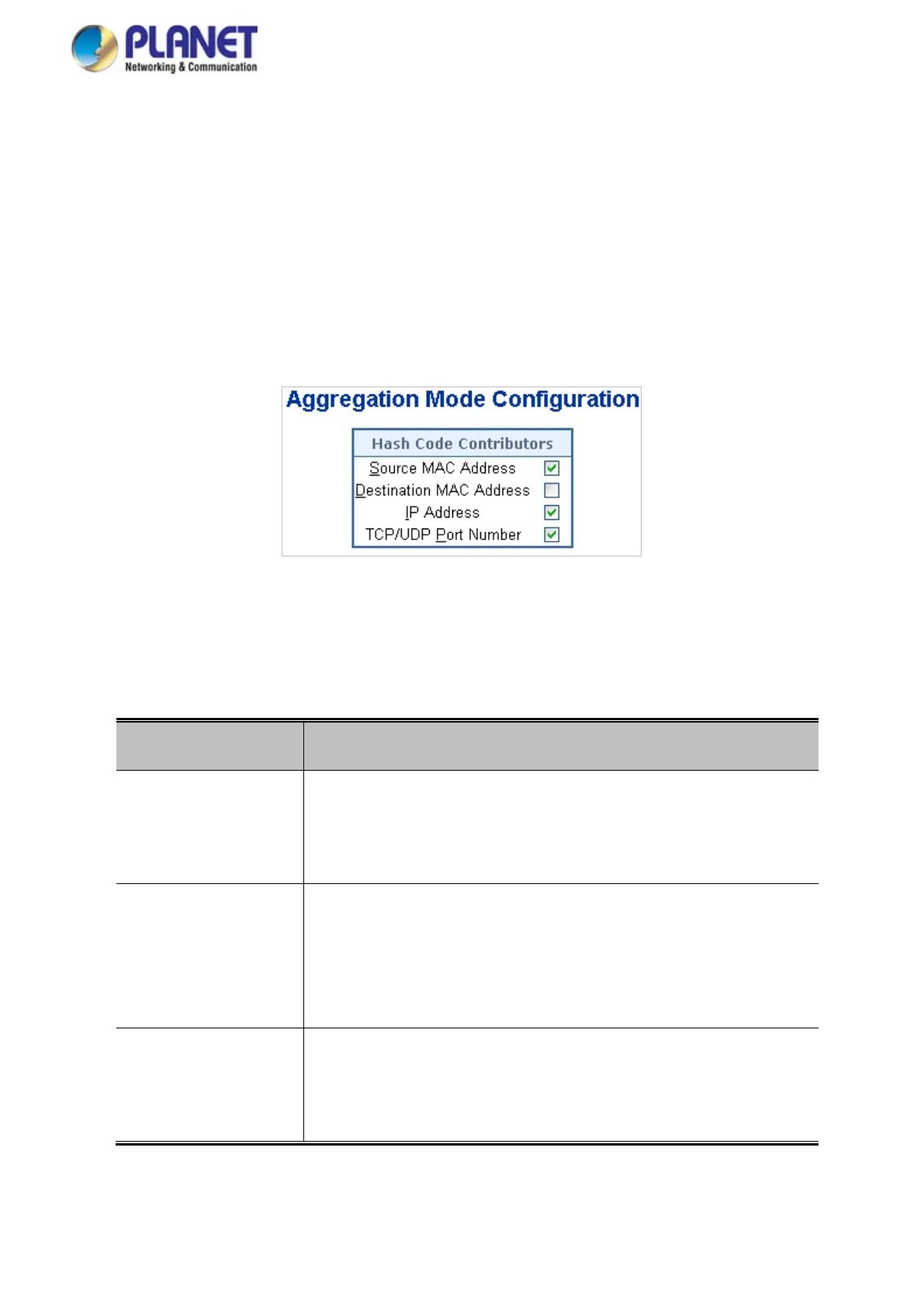

The Static Aggregation screen in Figure 4-5-2 appears.
Figure 4-5-2 : Aggregation Mode Configuration Page Screenshot
The page includes the following fields:
Object Description
• Source MAC Address
The Source MAC address can be used to calculate the destination port
for the frame. Check to enable the use of the Source MAC address, or
uncheck to disable. By default, Source MAC Address is enabled.
• Destination MAC
Address
The Destination MAC Address can be used to calculate the destination
port for the frame. Check to enable the use of the Destination MAC
Address, or uncheck to disable. By default, Destination MAC Address is
disabled.
• IP Address
The IP address can be used to calculate the destination port for the
frame. Check to enable the use of the IP Address, or uncheck to disable.
By default, IP Address is enabled.
