4.9.5.1 QoS Egress Port Schedule and Shapers
The Port Scheduler and Shapers for a specific port are configured on this page. The QoS Egress Port Schedule and
Shaper screen in Figure 4-9-5 appears.

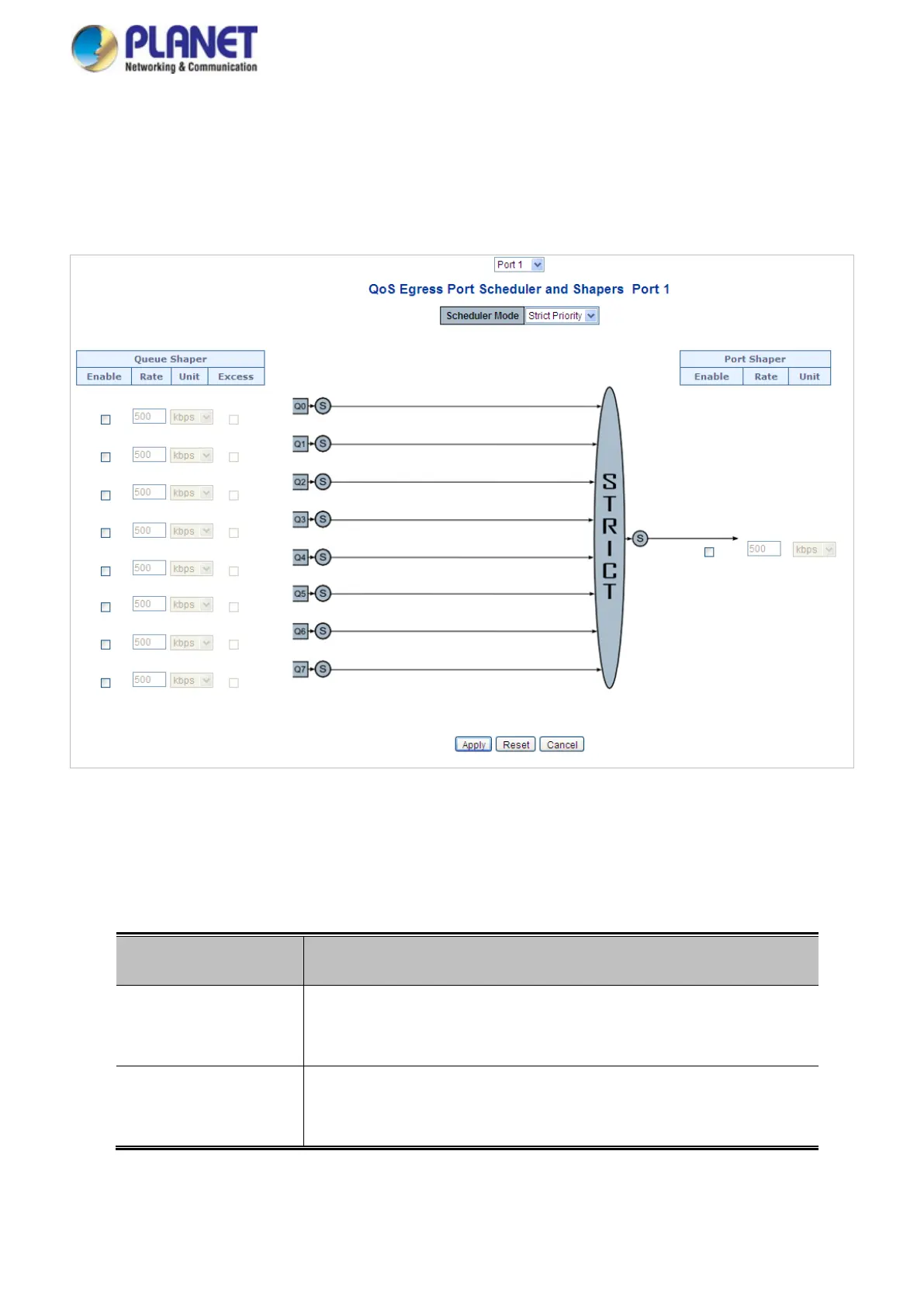

Figure 4-9-5: QoS Egress Port Schedule and Shapers Page Screenshot
The page includes the following fields:
Object Description
• Schedule Mode
Controls whether the scheduler mode is "Strict Priority" or "Weighted"
on this switch port.
• Queue Shaper Enable
Controls whether the queue shaper is enabled for this queue on this
switch port.
