4.10.2 Access Control List Configuration
This page shows the Access Control List (ACL), which is made up of the ACEs defined on this switch. Each row
describes the ACE that is defined. The maximum number of ACEs is 512 on each switch.
Click on the lowest plus sign to add a new ACE to the list. The reserved ACEs used for internal protocol, cannot
be edited or deleted, the order sequence cannot be changed and the priority is highest. The Access Control List
Configuration screen in Figure 4-10-2 appears.

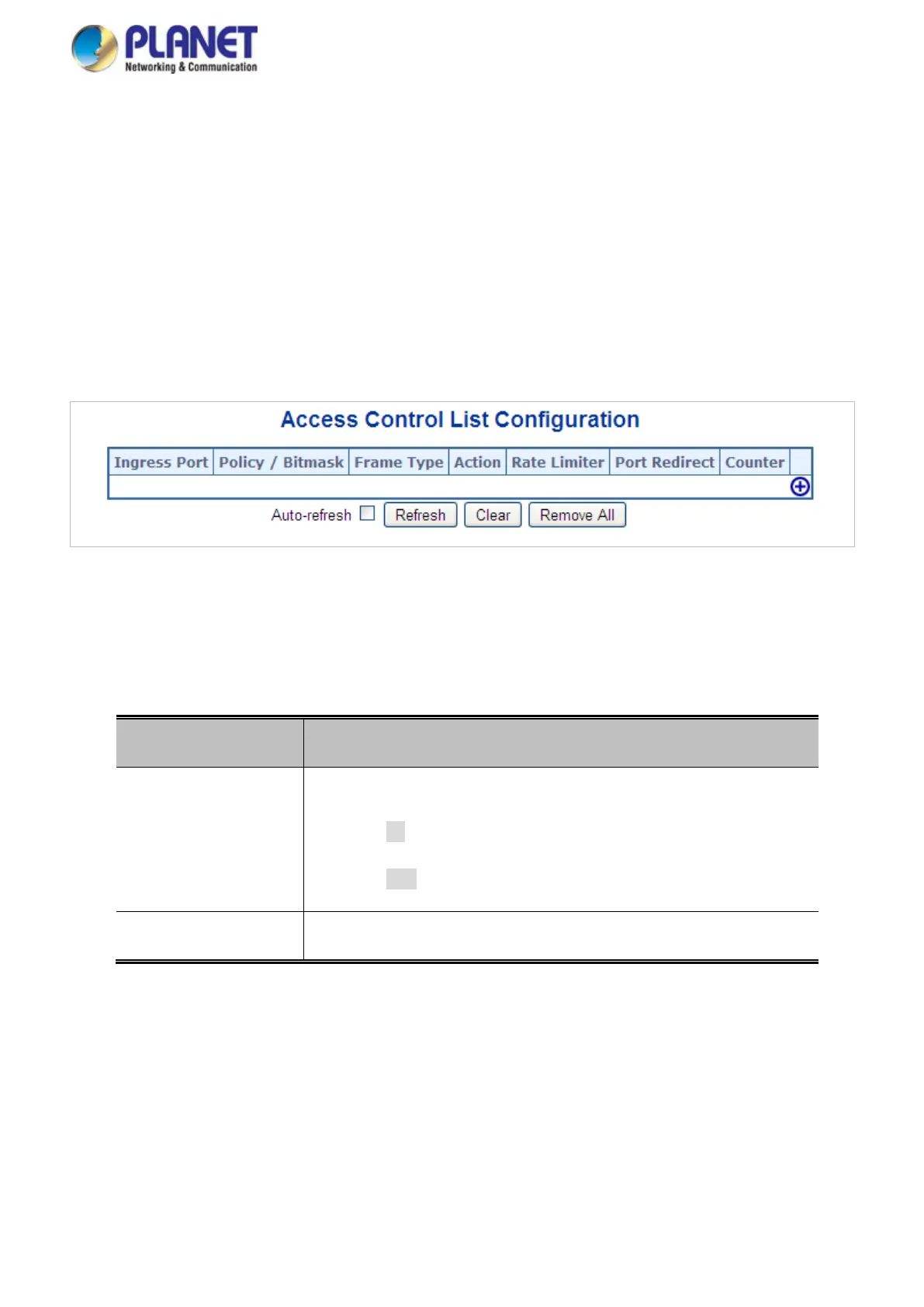

Figure 4-10-2: Access Control List Configuration Page Screenshot
The page includes the following fields:
Object Description
• Ingress Port
Indicates the ingress port of the ACE. Possible values are:
â– All: The ACE will match all ingress port.
â– Port: The ACE will match a specific ingress port.
• Policy / Bitmask
Indicates the policy number and bitmask of the ACE.
