• Role
The Role shows the LACP activity status. The Active will transmit LACP
packets each second, while Passive will wait for a LACP packet from a
partner (speak if spoken to).
• Timeout
The Timeout controls the period between BPDU transmissions. Fast will
transmit LACP packets each second, while Slow will wait for 30 seconds
before sending a LACP packet.
• Priority
The Priority controls the priority of the port. If the LACP partner wants
to form a larger group than is supported by this device then this
parameter will control which ports will be active and which ports will
be in a backup role. Lower number means greater priority.
Buttons
: Click to apply changes
: Click to undo any changes made locally and revert to previously saved values.
4.5.3 LACP System Status
This page provides a status overview of all LACP instances. The LACP Status Page display the current LACP
aggregation Groups and LACP Port status. The LACP System Status screen in Figure 4-5-5 appears.

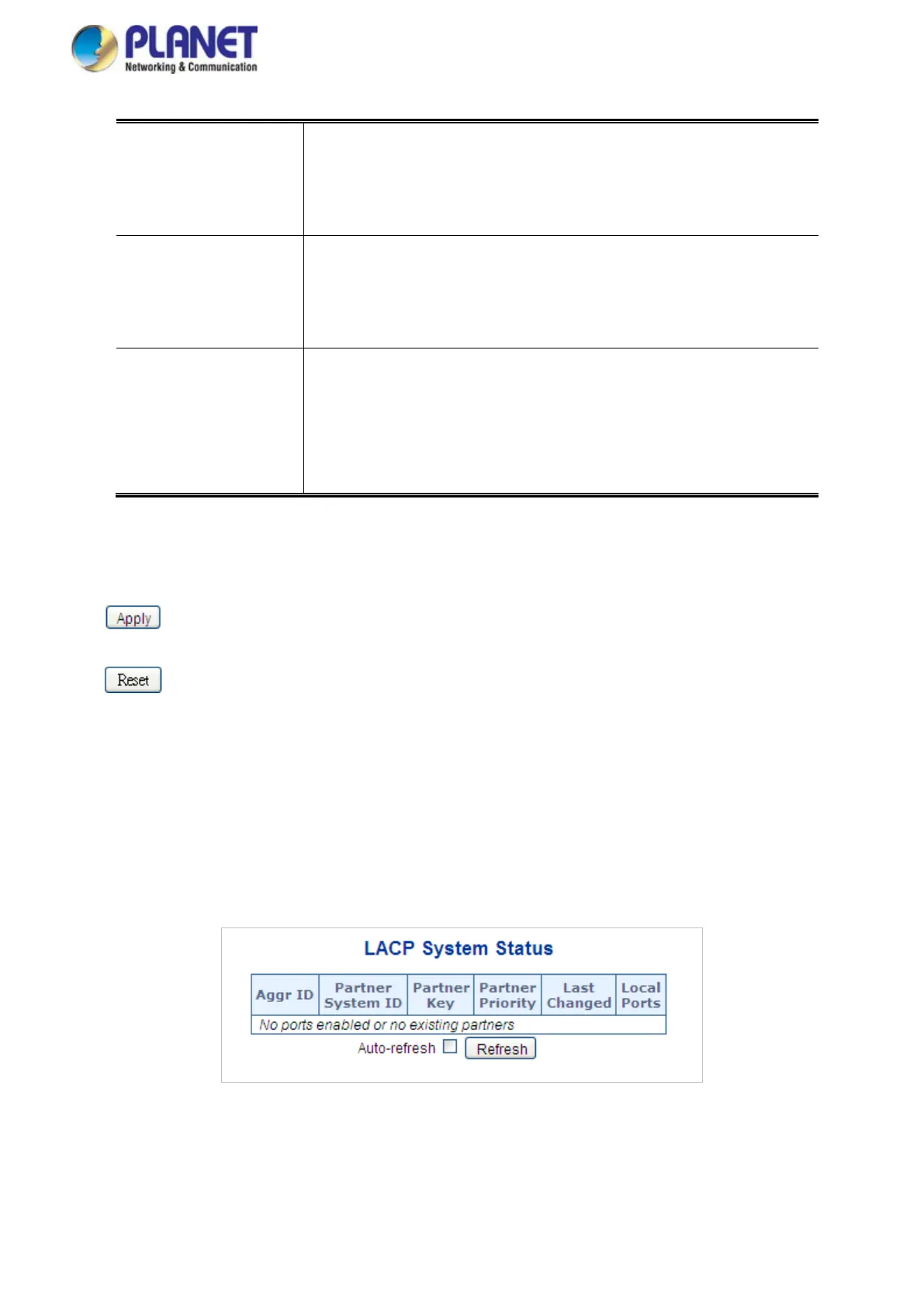

Figure 4-5-5: LACP System Status Page Screenshot
