User’s Manual of GS-5220 LCD Series
304
The page includes the following fields:
Object Description
• Port
The logical port for the settings contained in the same row.
Click on the port number in order to configure tag remarking.
For more detail, please refer to chapter 4.9.6.1.
• Mode
Shows the tag remarking mode for this port.
■ Classified: Use classified PCP/DEI values
■ Default: Use default PCP/DEI values.
■ Mapped: Use mapped versions of QoS class and DP level.
4.9.6.1 QoS Egress Port Tag Remarking
The QoS Egress Port Tag Remarking for a specific port are configured on this page. The QoS Egress Port Tag
Remarking screen in Figure 4-9-7 appears.

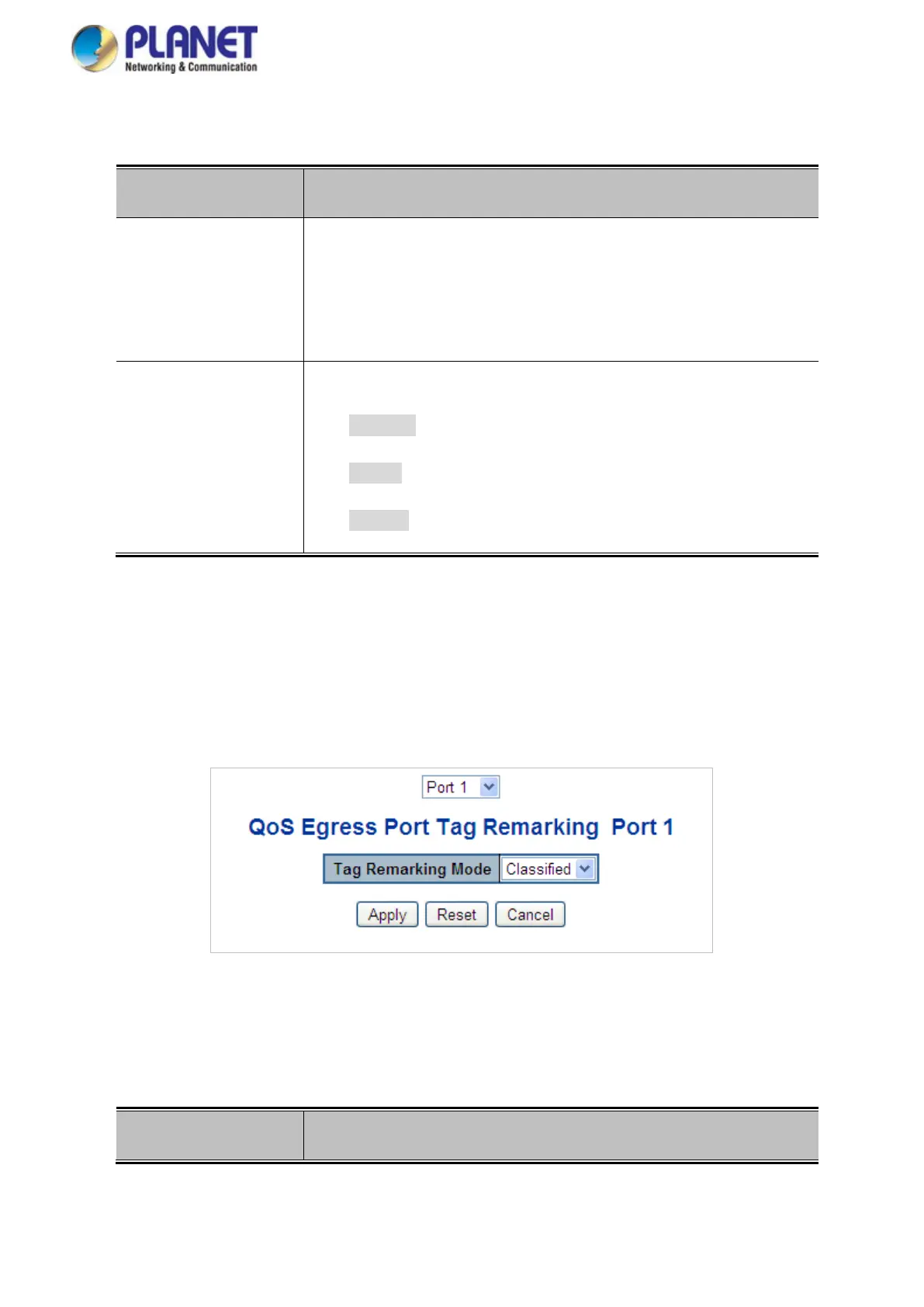

Figure 4-9-7: QoS Egress Port Tag Remarking Page Screenshot
The page includes the following fields:
Object Description
