4.17.2 Loop Protection Status
This page displays the loop protection port status of the switch; screen in Figure 4-17-2 appears.

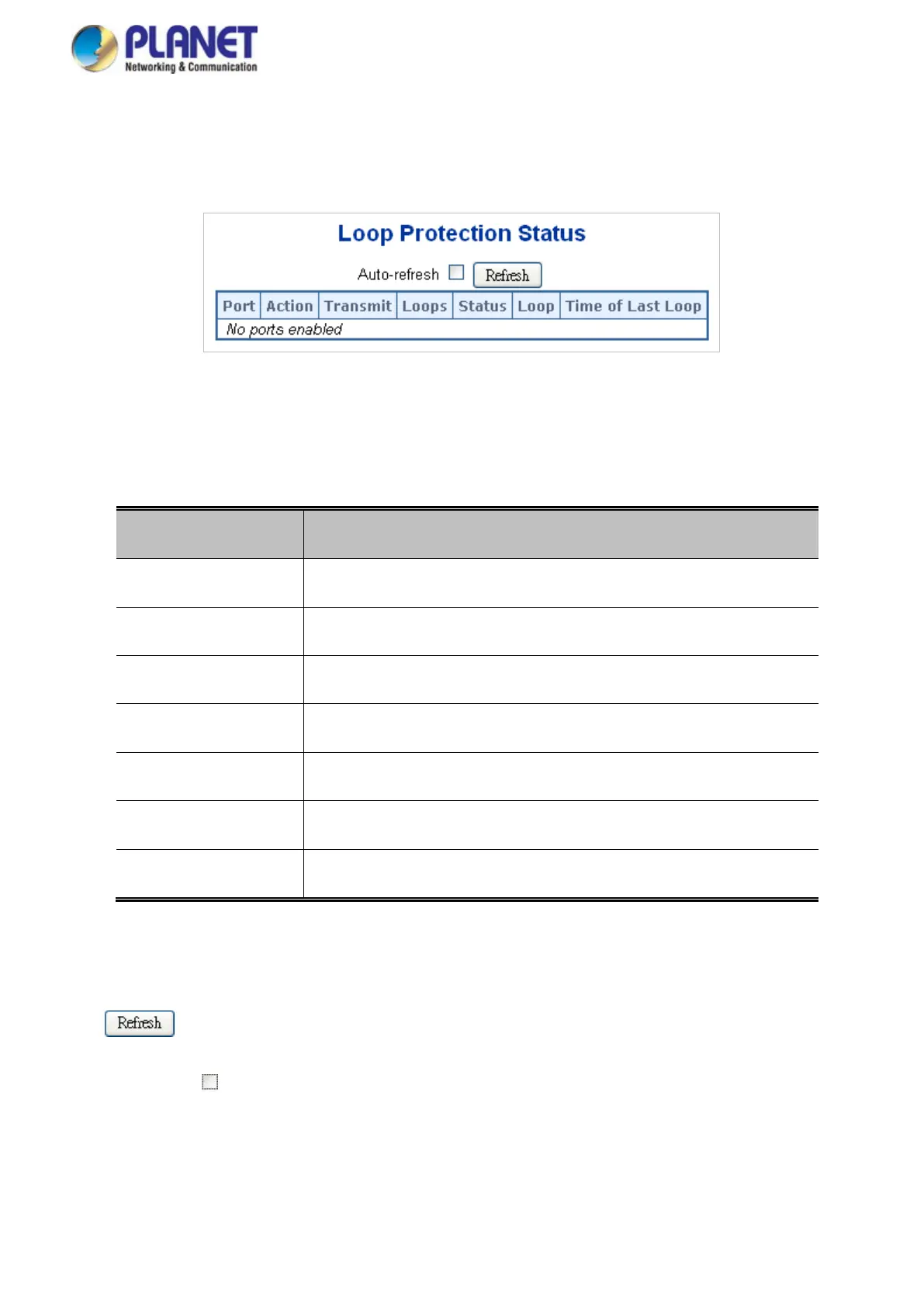

Figure 4-17-2: Loop Protection Status Screenshot
The page includes the following fields:
Object Description
• Port
The Managed Switch port number of the logical port.
• Action
The currently configured port action.
• Transmit
The currently configured port transmit mode.
• Loops
The number of loops detected on this port.
• Status
The current loop protection status of the port.
• Loop
Whether a loop is currently detected on the port.
• Time of Last Loop
The time of the last loop event detected.
Buttons
: Click to refresh the page immediately.
Auto-refresh
: Check this box to enable an automatic refresh of the page at regular intervals.
