User’s Manual of GS-5220 LCD Series
488
4.15.3 Remote IP Ping Test
This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues on special port.
After you press “Test”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are
displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received,
or until a timeout occurs. The ICMP Ping screen in Figure 4-15-3 appears.

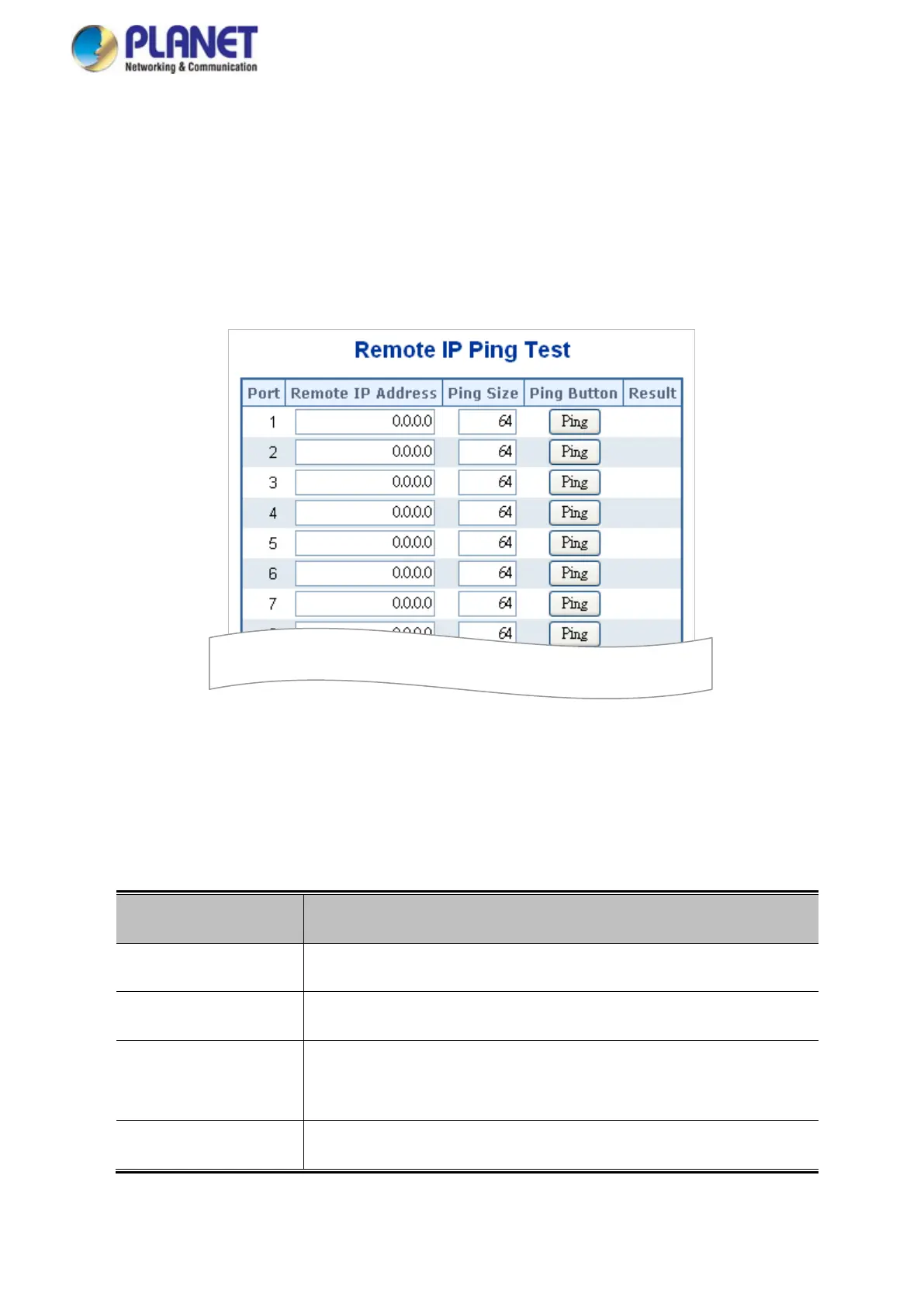

Figure 4-15-3: Remote IP Ping Test Page Screenshot
The page includes the following fields:
Object Description
• Port
The logical port for the settings.
• Remote IP Address
The destination IP Address.
• Ping Size
The payload size of the ICMP packet. Values range from 8 bytes to 1400
bytes.
• Result
Display the ping result.
