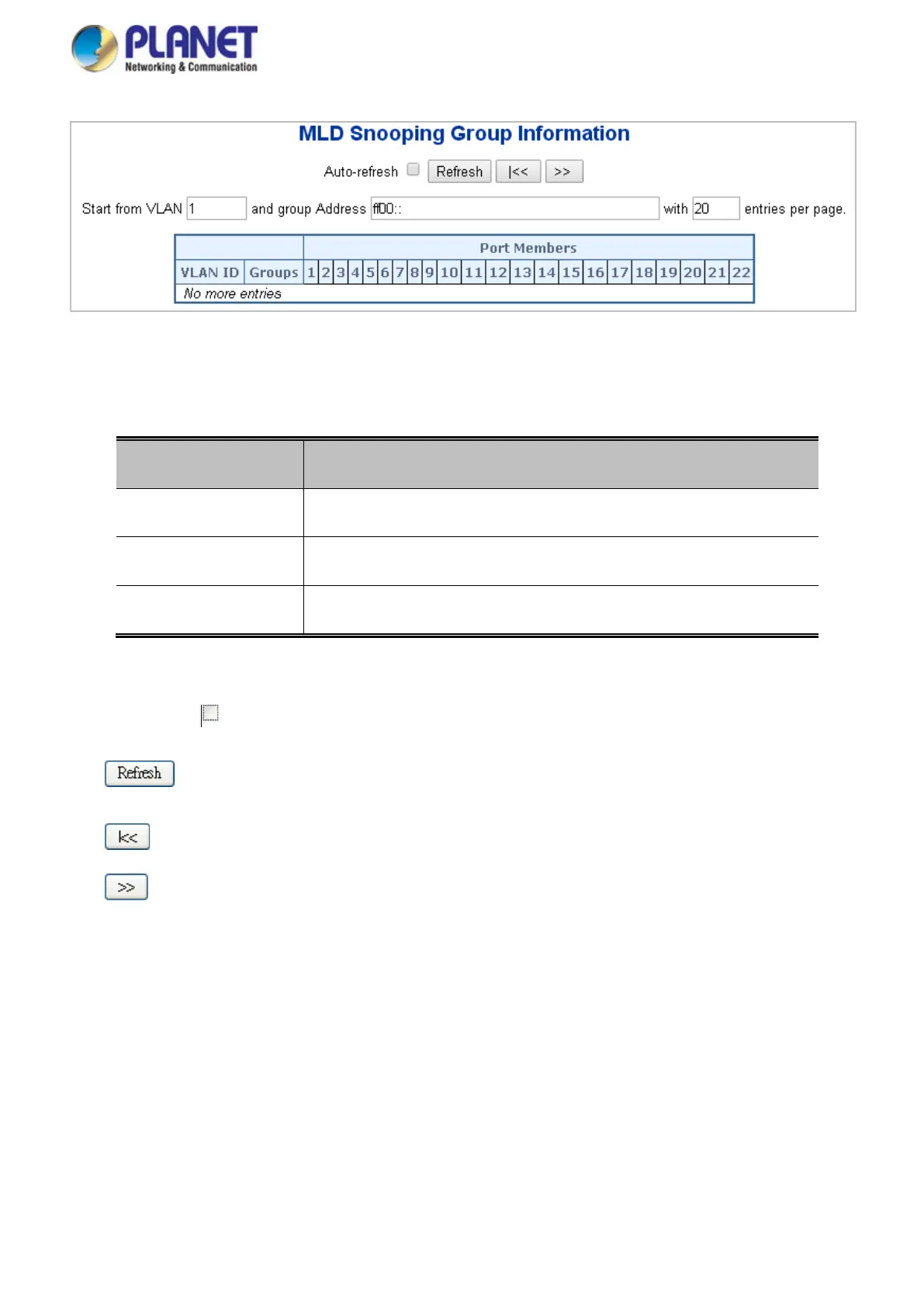

Figure 4-8-17: MLD Snooping Groups Information Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
VLAN ID of the group.
• Groups
Group address of the group displayed.
• Port Members
Ports under this group.
Buttons
Auto-refresh : Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediately.
: Updates the table, starting with the first entry in the IGMP Group Table.
: Updates the table, starting with the entry after the last entry currently displayed.
4.8.15 MLDv2 Information
Entries in the MLD SFM Information Table are shown on this page. The MLD SFM (Source-Filtered Multicast)
Information Table also contains the SSM (Source-Specific Multicast) information. This table is sorted first by
VLAN ID, then by group, and then by Port. Different source addresses belong to the same group are treated as
single entry. Each page shows up to 99 entries from the MLD SFM Information table, default being 20, selected
through the "entries per page" input field. When first visited, the web Page will show the first 20 entries from
the beginning of the MLD SFM Information Table.
To Next Page
