The "Start from VLAN", and "group" input fields allow the user to select the starting point in the MLD SFM
Information Table. The MLDv2 Information screen in Figure 4-8-18 appears.

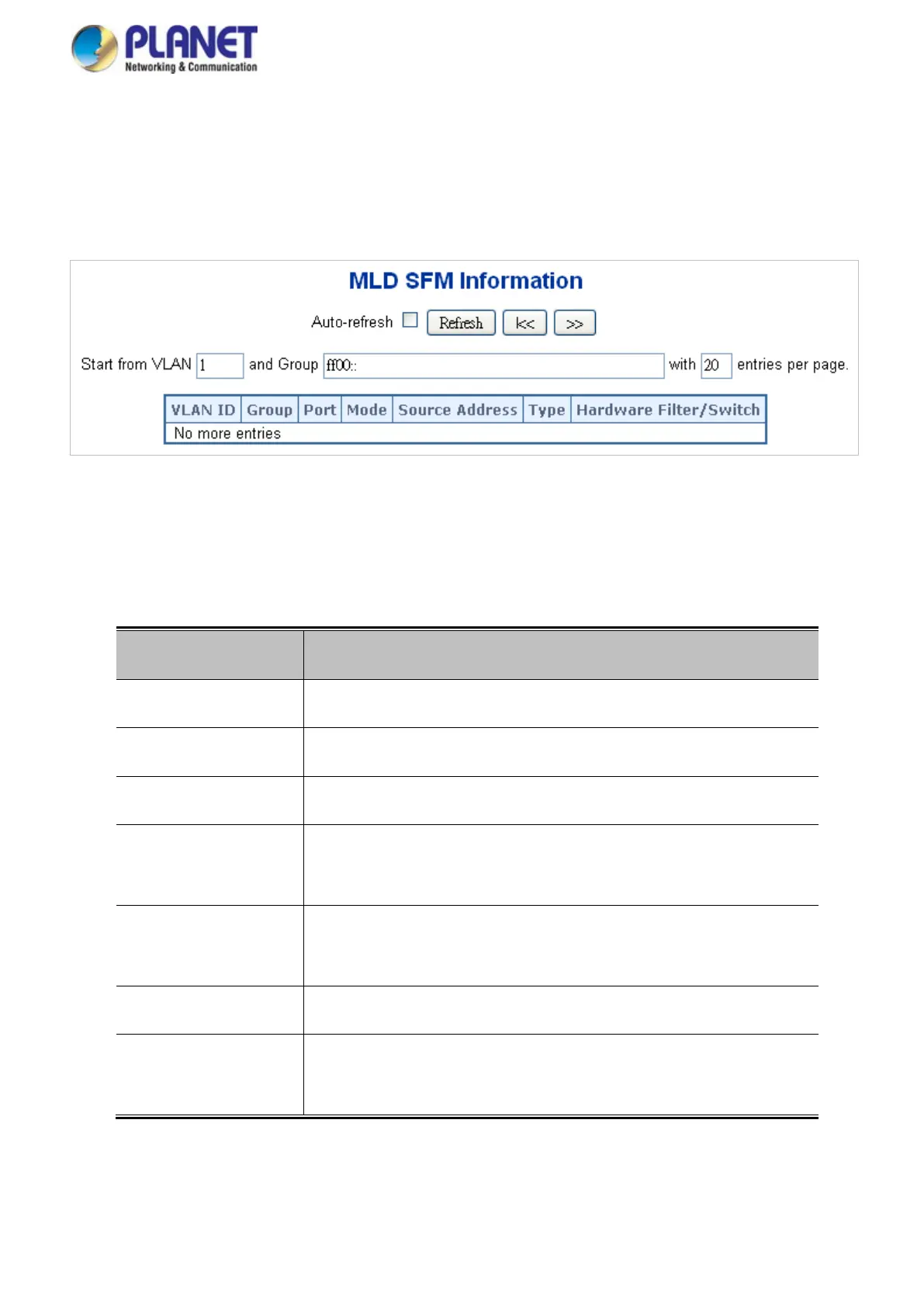

Figure 4-8-18: MLD SSM Information Page Screenshot
The page includes the following fields:
Object Description
• VLAN ID
VLAN ID of the group.
• Group
Group address of the group displayed.
• Port
Switch port number.
• Mode
Indicates the filtering mode maintained per (VLAN ID, port number,
Group Address) basis. It can be either Include or Exclude.
• Source Address
IP Address of the source. Currently, system limits the total number of IP
source addresses for filtering to be 128.
• Type
Indicates the Type. It can be either Allow or Deny.
• Hardware
Filter/Switch
Indicates whether data plane destined to the specific group address
from the source IPv6 address could be handled by chip or not.
To Next Page
