4.15.1 Ping
This page allows you to issue ICMP PING packets to troubleshoot IP connectivity issues.
After you press “Start”, 5 ICMP packets are transmitted, and the sequence number and roundtrip time are
displayed upon reception of a reply. The page refreshes automatically until responses to all packets are received,
or until a timeout occurs. The ICMP Ping screen in Figure 4-15-1 appears.

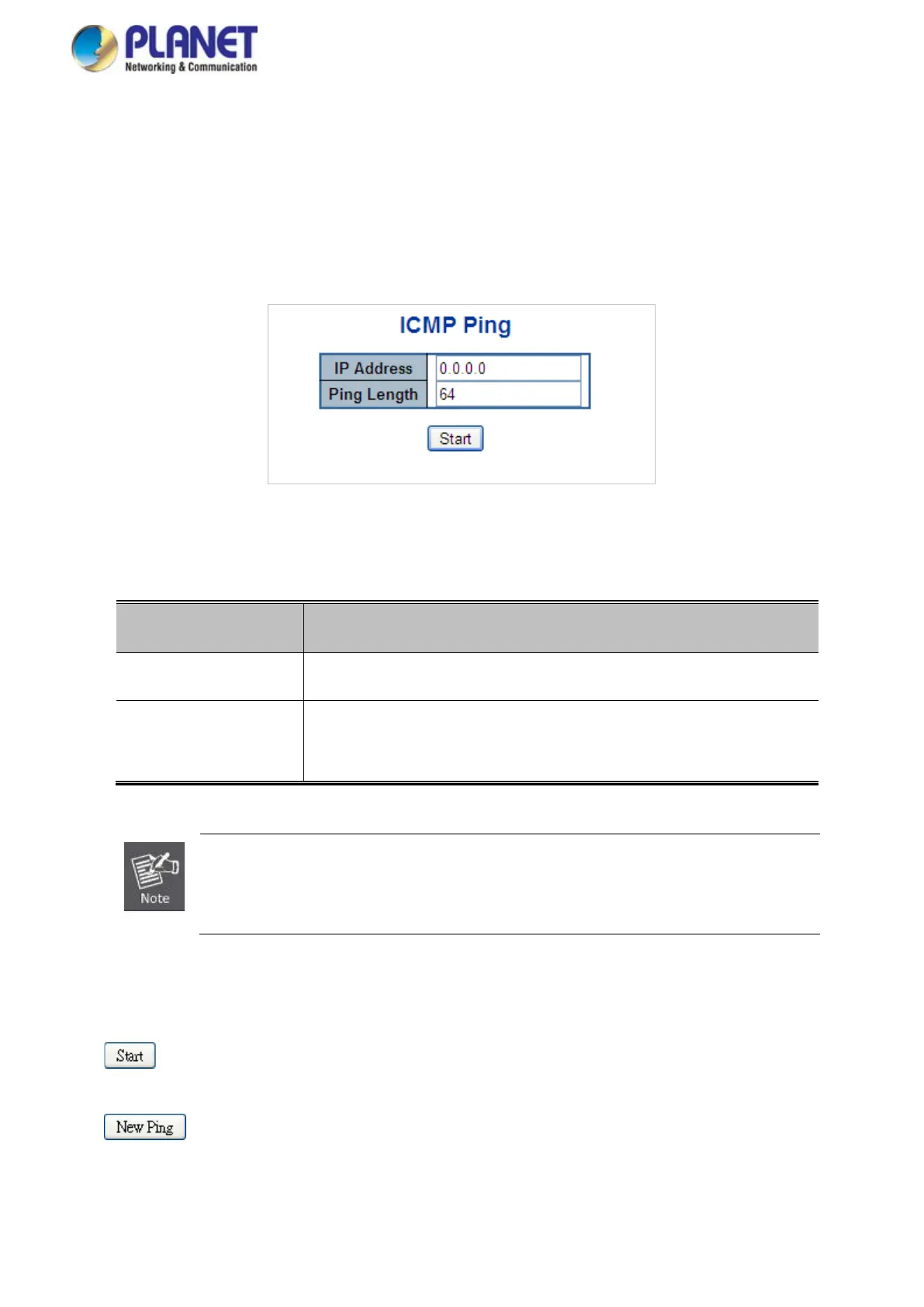

Figure 4-15-1: ICMP Ping Page Screenshot
The page includes the following fields:
Object Description
• IP Address
The destination IP Address.
• Ping Length
The payload size of the ICMP packet. Values range from 2 bytes to 1452
bytes.
Be sure the target IP Address is within the same network subnet of the Managed Switch,
or you had setup the correct gateway IP address.
Buttons
: Click to transmit ICMP packets.
: Click to re-start diagnostics with PING.
