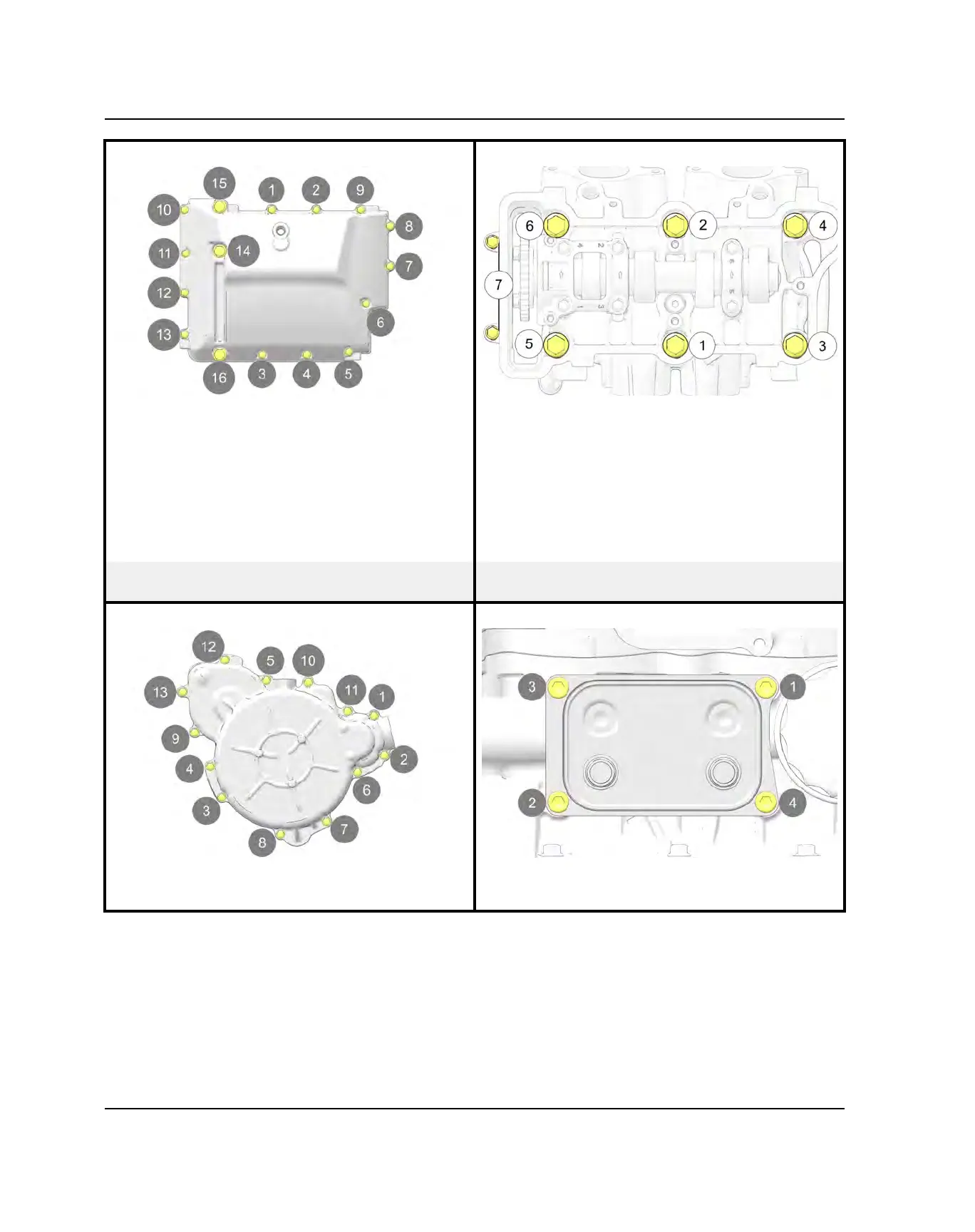

SUMP COVER / OIL PAN CYLINDER HEAD
M8
26 ft-lbs (35 Nm) M11 Cylinder Head Bolts
Torque in sequence
Step 1: 13 ft-lbs (18
Nm)
Step 2: 26 ft-lb (35
Nm)
Step 3: Tighten
additional 360°
M6
9 ft-lbs (12 Nm) M6 Cylinder Head Bolts Step 4: 7 ft-lb (10 Nm)
STATOR COVER
OIL COOLER
Stator Cover Bolts
9 ft-lbs (12 Nm)
Oil Cooler
7 lb-ft (10 Nm)
