Polaris RANGER 1000 2020 - Rear Drive Shaft Installation

8
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
8.51

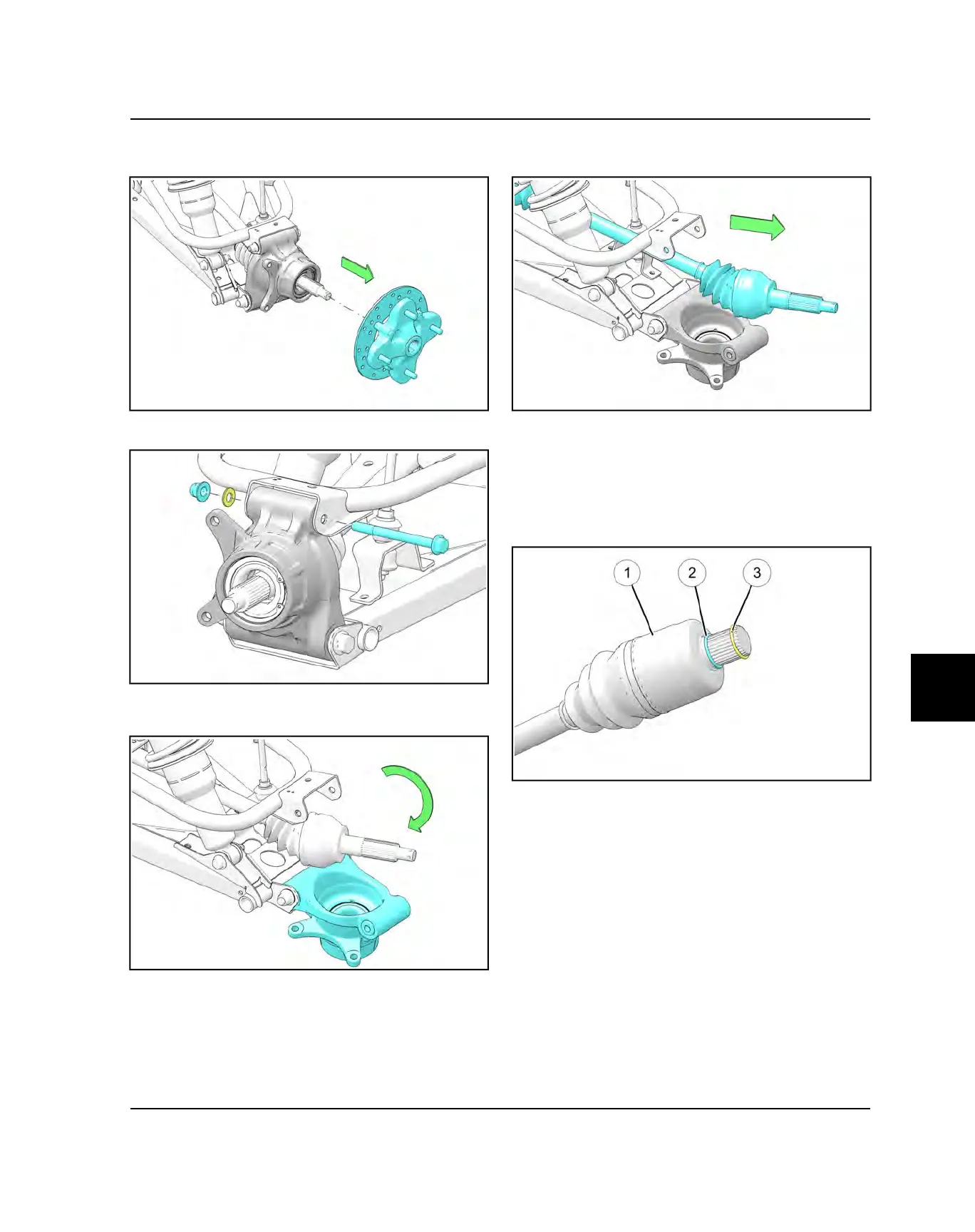

8. Slide the wheel hub out from the bearing carrier and
drive shaft.
9. Remove the upper A-arm fastener.
10.Tilt the carrier down while removing the end of the
driveshaft.
11. With a short, sharp jerk, remove drive shaft from the
transmission.
REAR DRIVE SHAFT INSTALLATION
1. Install a new spring ring
q
and o-ring
w
on the end of
the drive shaft
e
if not replacing the drive shaft
assembly. Apply an anti-seize compound to the
splines of both ends of the shaft.
FINAL DRIVE
