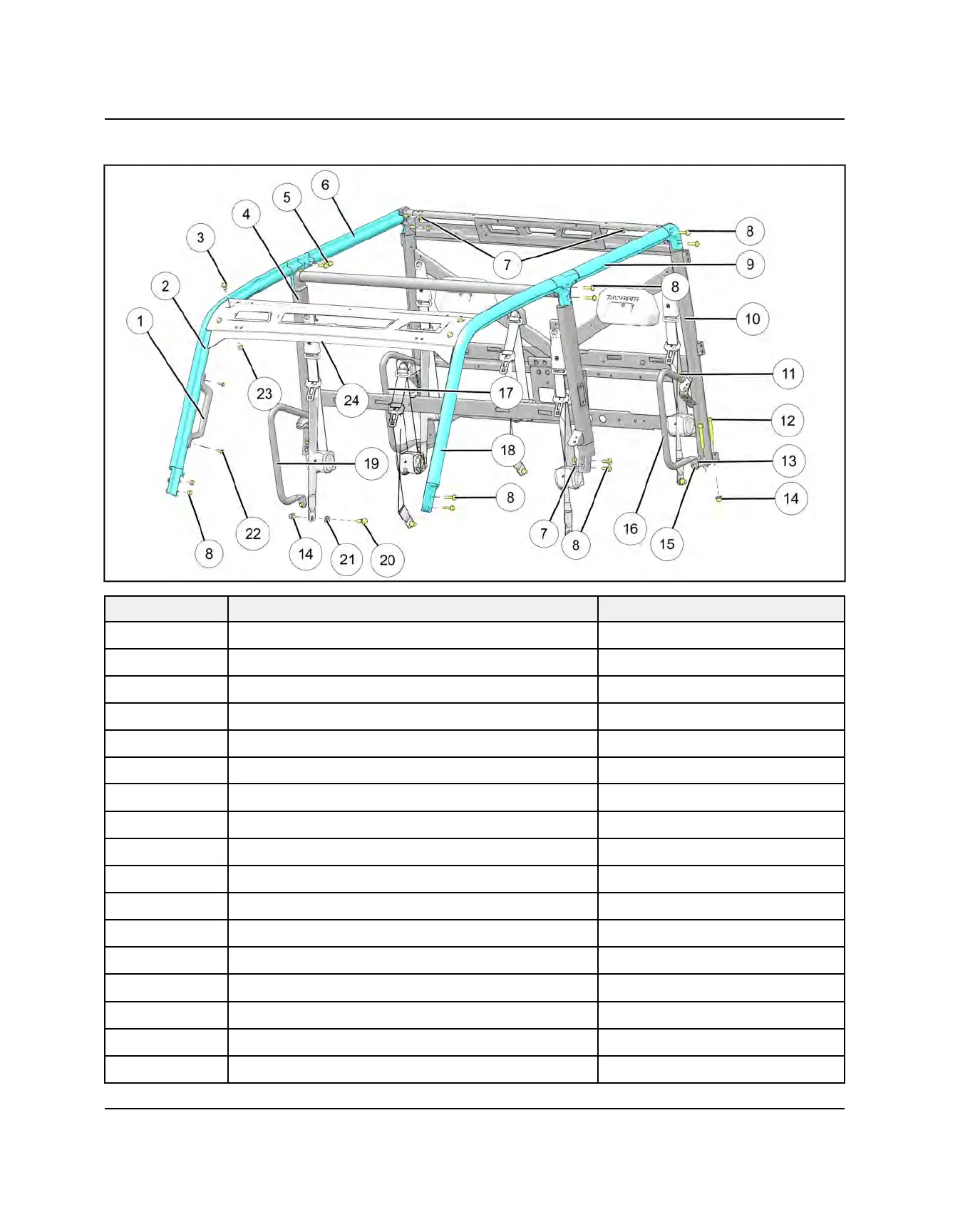

ROPS ASSEMBLY VIEW (CREW)
REF
DESCRIPTION TORQUE
q
HANDLE-GRAB, ROPS
NA
w
WELD-CAB FRAME. FRT, RH
NA
e
SCR-HXL-M10X1.5X20 10.9 RIE P
NA
r
WELD-CAB FRAME, CTR, M
NA
t
SCR-M10X1.50X35 HX/FL-Y/D
NA
y
WED-CAB FRAME, REAR, RH
NA
u
NUT-HEX-M10X1.5 10 ZB3 NYL
36 ft-lbs (54 N·m)
i
SCR-HXFL-M10X1.5X45 10.9 RIE
NA
o
WELD-CAB FRAME, REAR, LH
NA
a
WELD-CAB FRAME, REAR, M
NA
s
SCR-TXTH-M6X1.025 RIE 6 ft-lbs (8 Nm)
d
SCR-HXFL-M12X1.75X90 10.9 ZPC
NA
f
NUT-HEX-M8X1.25 10 P&O
NA
g
NUT-HXFL M12X1.75 8 ZOD NYL 45 ft-lbs (61 N·m)
h
SCR-HXFL-M8X1.25X20 8.8 ZOD P3 6 ft-lbs (8 Nm)
j
WELD-BOLSTER, LH, M
NA
k
WELD-BOLSTER, RH, M
NA
