Polaris RANGER 1000 2020 - Chassis Assembly View (Crew)

11
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.5

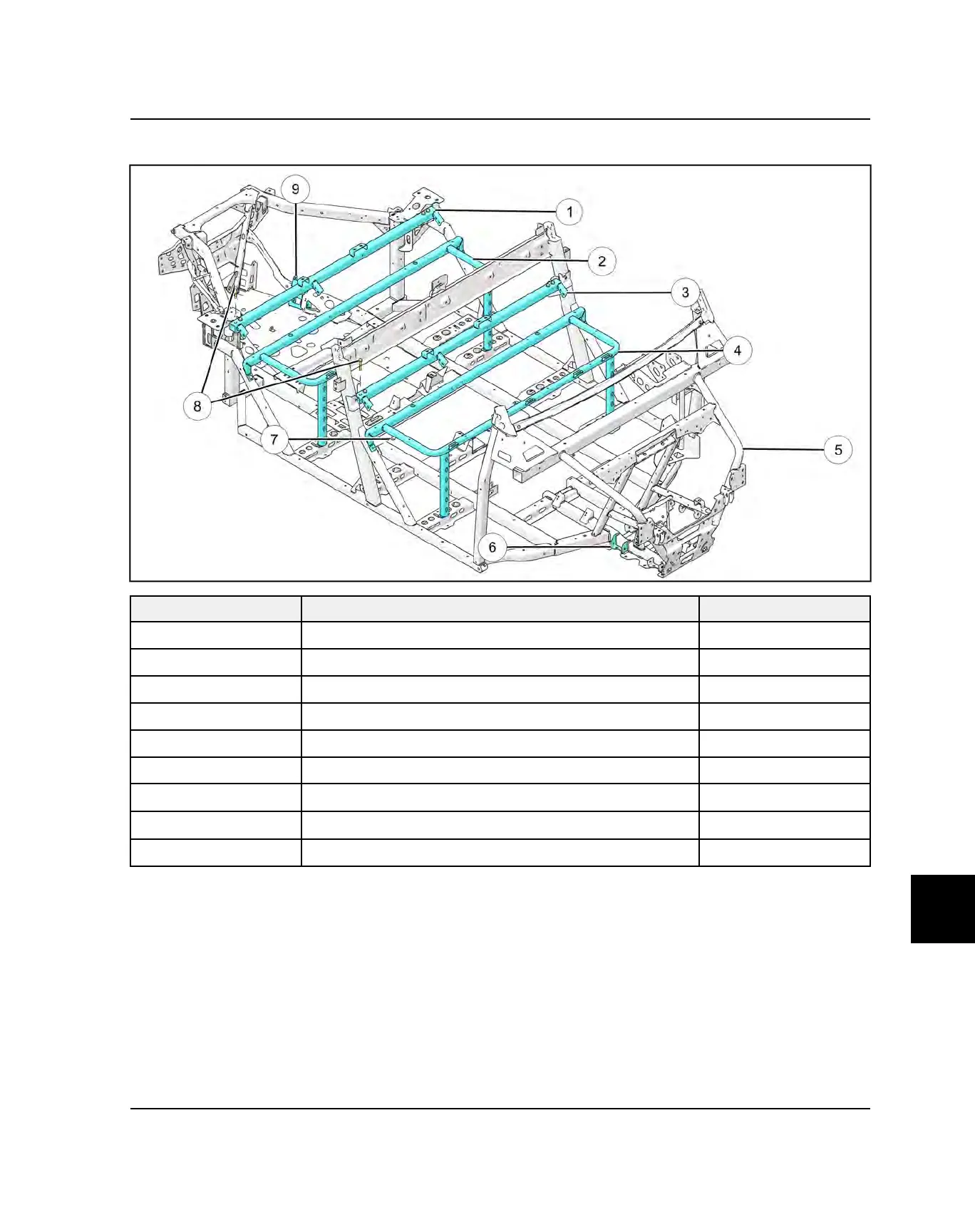

CHASSIS ASSEMBLY VIEW (CREW)
REF DESCRIPTION
TORQUE
q
Rear Cross Bar NA
w
Rear Seat Frame NA
e
Front Cross Bar NA
r
Front Seat Frame NA
t
Main Frame NA
y
Front A-arm Bracket NA
u
Seat Frame Fastener: M8 x 1.25 x 20
10 ft-lbs (14 Nm)
i
Cross Bar Fastener
14 ft-lbs (19 Nm)
o
Rear A-arm Bracket NA
BODY / FRAME
