Polaris RANGER 1000 2020 - Exhaust Service; Exhaust System Assembly View

3
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
3.19
EXHAUST SERVICE

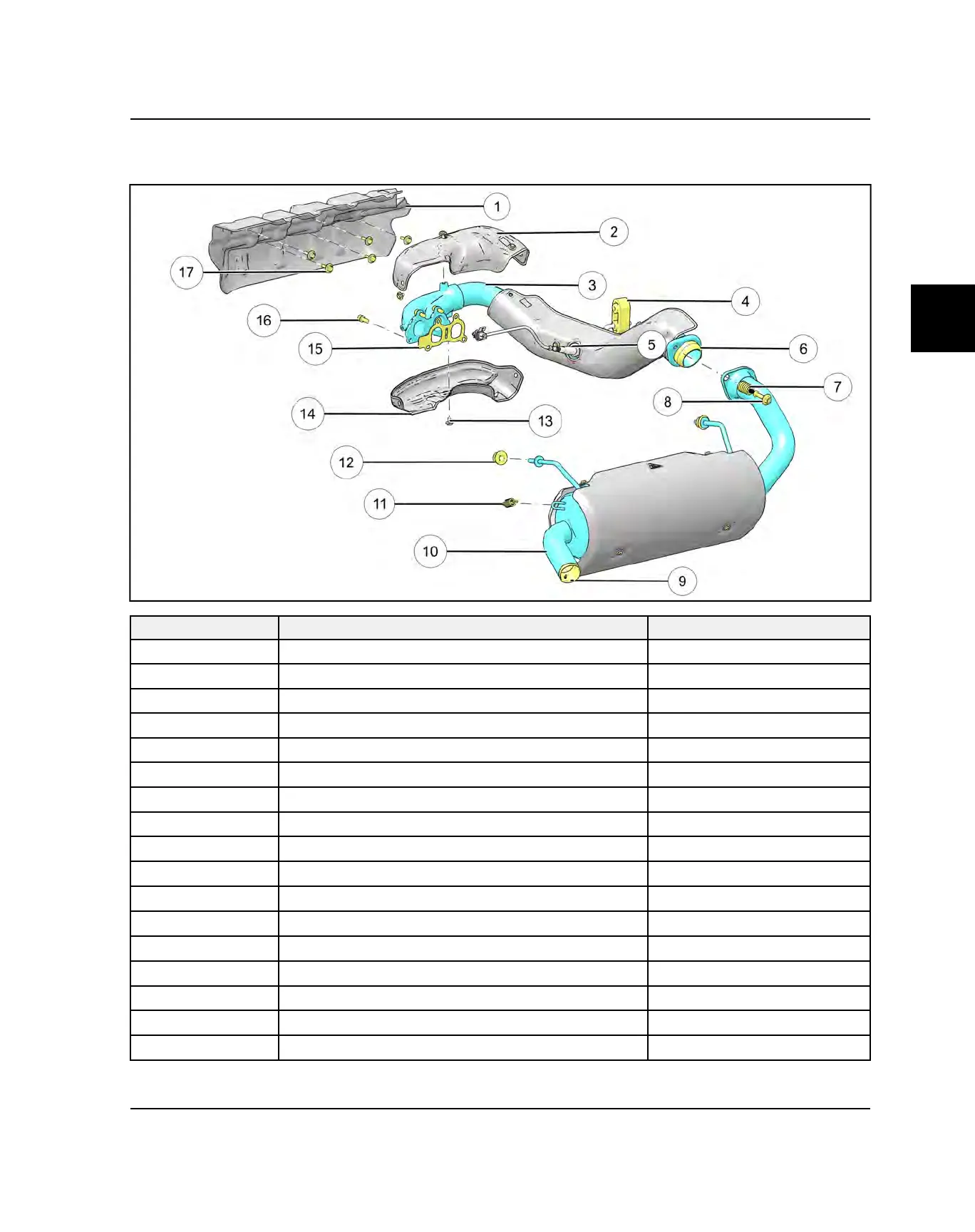

EXHAUST SYSTEM ASSEMBLY VIEW
REF DESCRIPTION
TORQUE
q
Close-off Heat Shield NA
w
Upper Headpipe Heat Shield
NA
e
Headpipe
NA
r
Headpipe Isolator
NA
t
Oxygen Sensor
NA
y
Gasket NA
u
Spring
NA
i
Exhaust Spring Bolt 21 ft-lbs (28 Nm)
o
Spark Arrestor 7 ft-lbs (10 Nm)
a
Muffler Assembly
NA
s
Exhaust Spring
NA
d
Muffler Hanger Isolator
NA
f
Heat Shield Fastener: M6 x 1.0 x 10
6 ft-lbs (8 Nm)
g
Lower Headpipe Heat Shield
NA
h
Headpipe Gasket
NA
j
Headpipe Exhaust Fastener: M8 x 1.25 x 22 22 ft-lbs (30 Nm)
k
Heat Shield Fastener: M6 x 1.0 x 25
42 in-lbs (5 Nm)
ENGINE / COOLING / EXHAUST
