11
9850045 R01 - 2020-2021 RANGER 1000 Service Manual
© Copyright Polaris Inc.
11.63

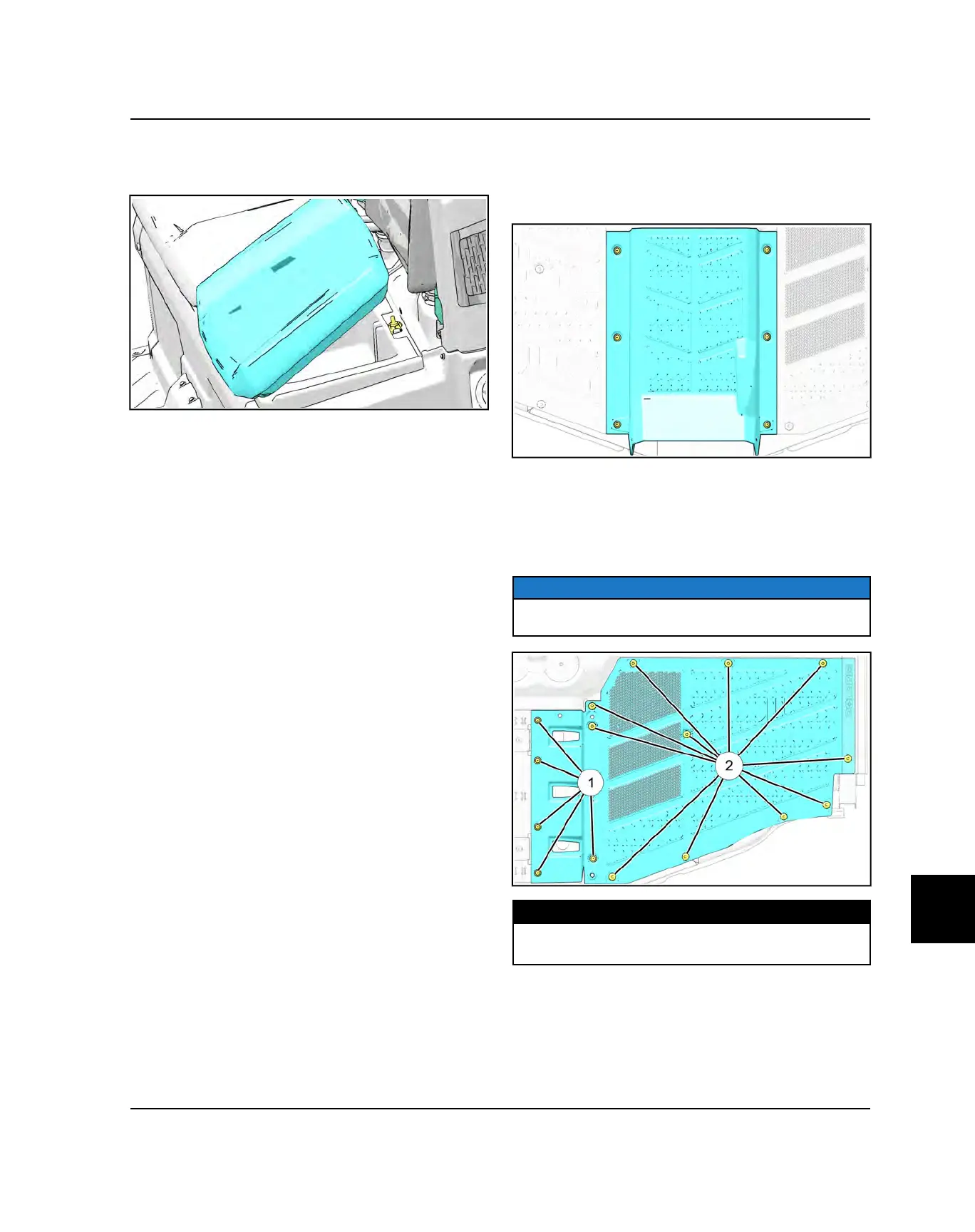

LOWER SEAT BASE REMOVAL
1. Lift up on the back of the seat to disengage the seat
pin from the rubber grommet.
2. With the seat sitting vertically, lift the seat up to
remove the seat tabs from the slots on the frame.
FLOOR PANEL SERVICE
PROPSHAFT TUNNEL
• Remove the six push rivets to remove the propshaft
tunnel.
FLOOR PANEL
1. Remove the propshaft tunnel.
2. Remove the five push rivets
q
and eleven fasteners
w
to remove the floor panel.
NOTICE
Driver’s side shown, passenger side is identical to
driver’s.
TORQUE
Floor Fastener:
42 in-lbs (5 Nm)
BODY / FRAME
