REAR A-ARM SERVICE
REAR UPPER A-ARM REMOVAL

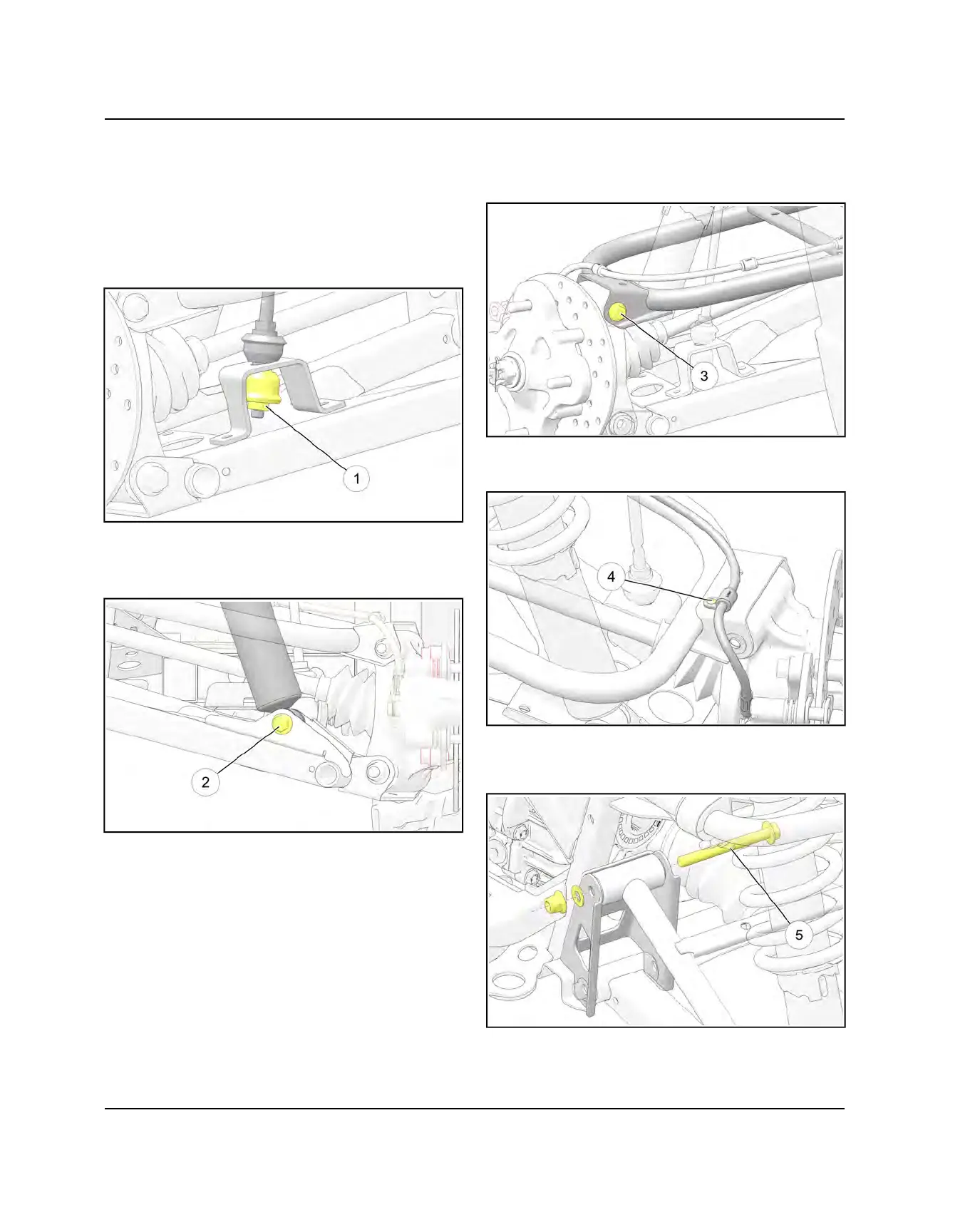

1. Properly lift and support the vehicle by the frame.
2. Using a 13 mm socket, remove the four nuts retaining
the rear stabilizer bar to the frame.
3. Remove the nut
q
from the lower portion of the
stabilizer bar link.
4. Remove the four wheel nuts and remove the wheel.
5. Remove the fastener
w
retaining the lower portion of
the rear shock to the lower A-arm.
6. Remove the fastener
e
and nut retaining the upper
A-arm to the bearing carrier.
7. Drill out the rivet
r
retaining the brake line clamp to
the upper A-arm.
8. Using a 15 mm socket and open-end wrench, remove
the two fasteners
t
retaining the upper A-arm to the
frame.
