ENGINE HARNESS

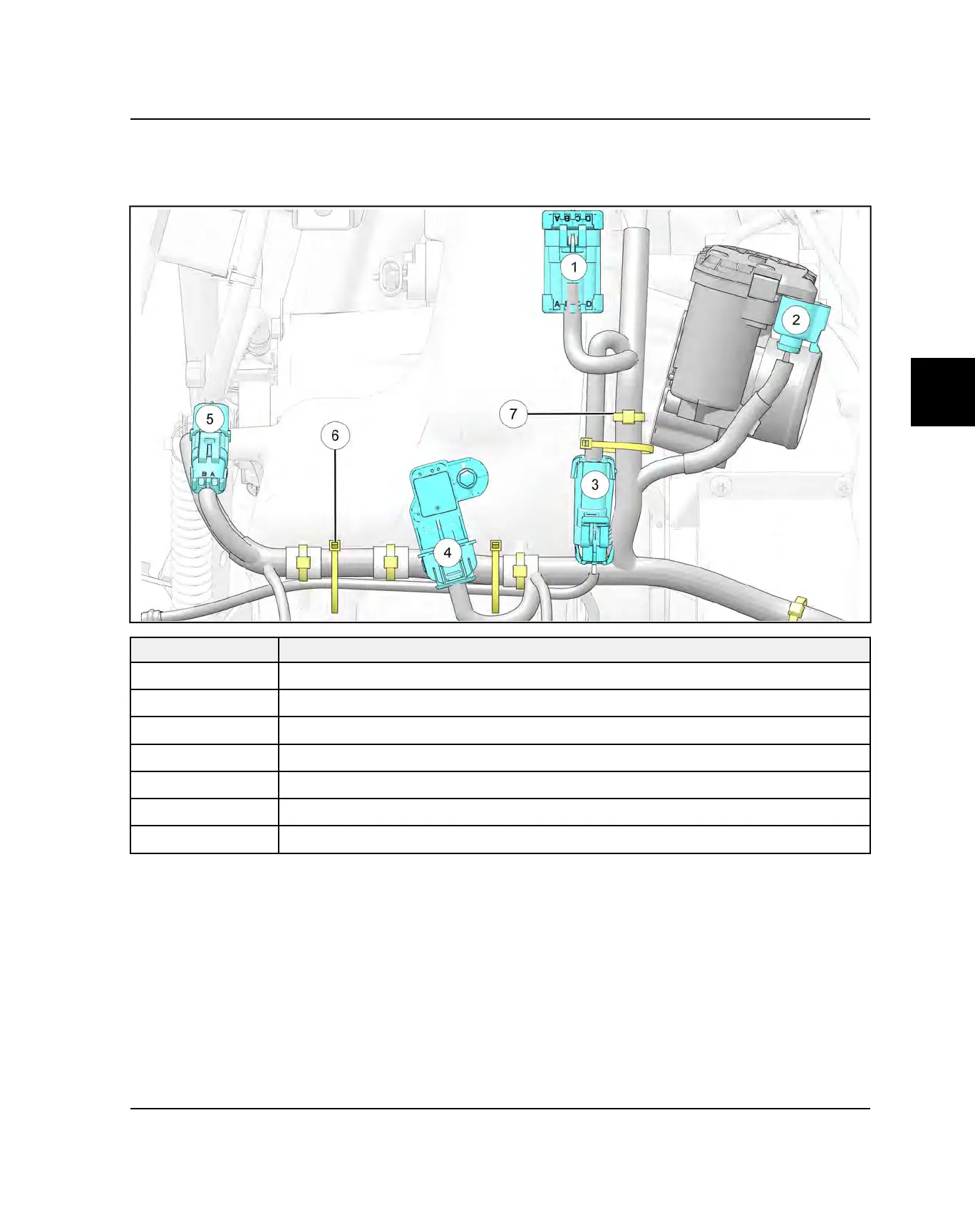

ENGINE HARNESS ROUTING
INTAKE MANIFOLD HARNESS
REF DESCRIPTION
q
Box Harness Connector
w
Throttle Body Connector
e
Oxygen Sensor Connector
r
T-MAP Sensor
t
Box Lift Actuator Connector
y
Zip Tie (Oxygen sensor harness to main harness)
u
Tree clip (Into Intake Manifold)
